Memory Positioning Module: Diagrams

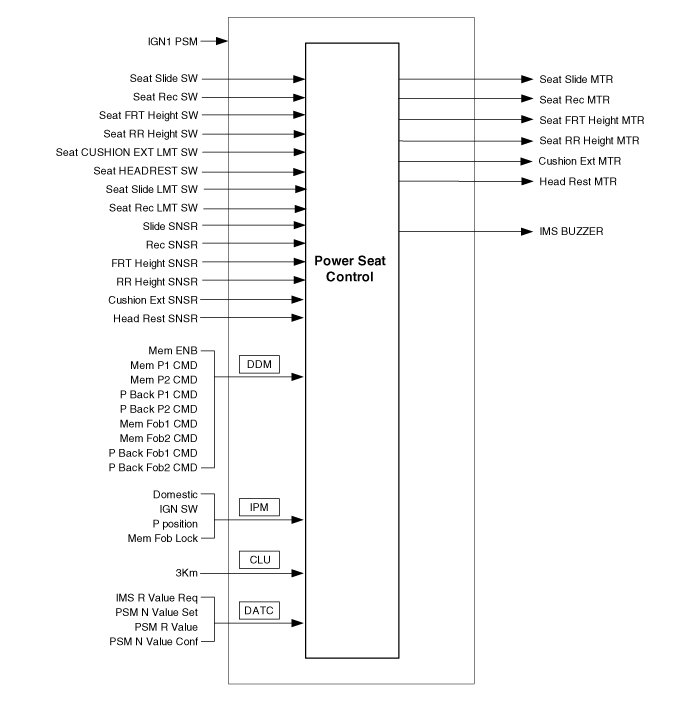

System Block Diagram

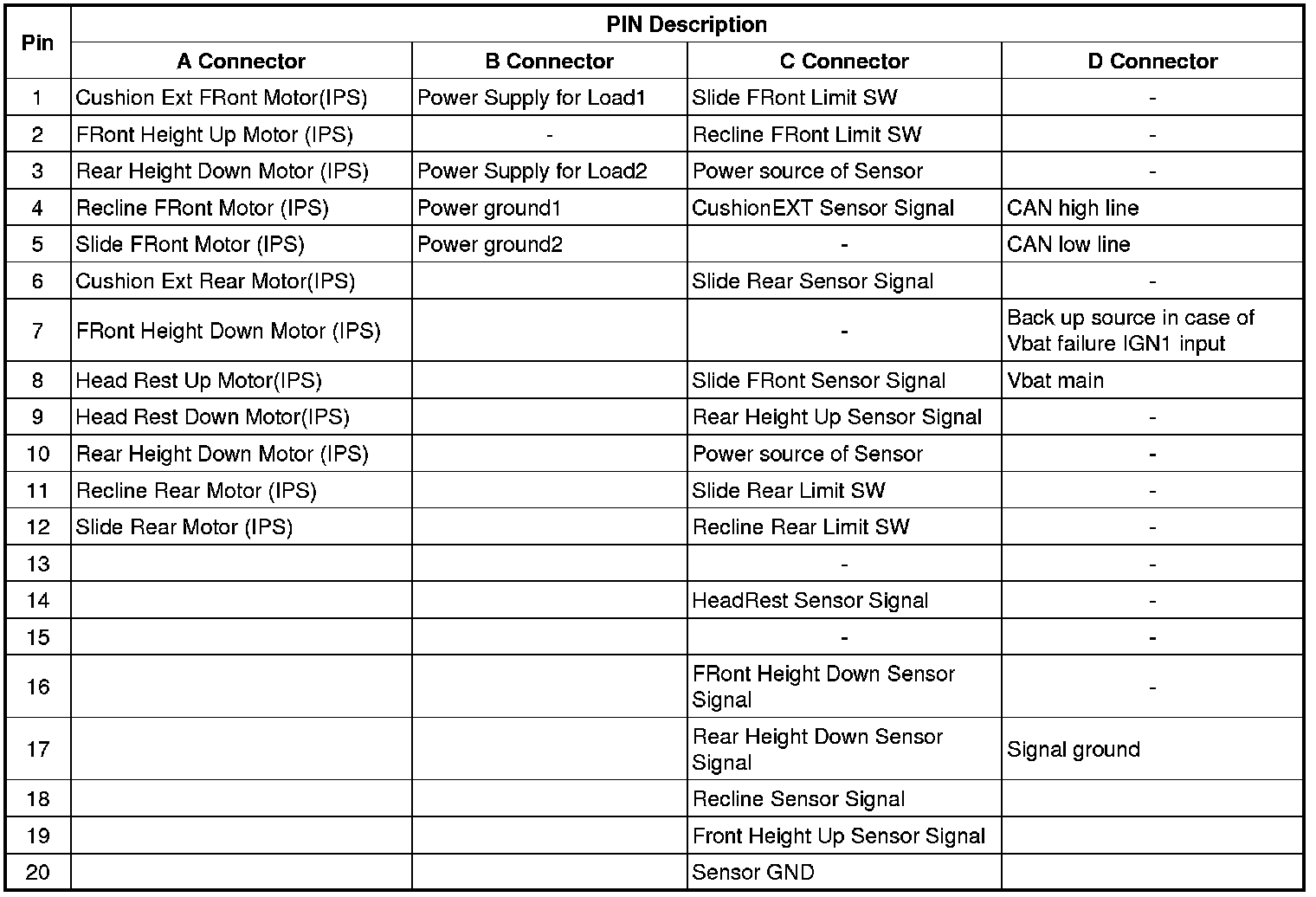

Power Seat Memory Unit (For Driver)

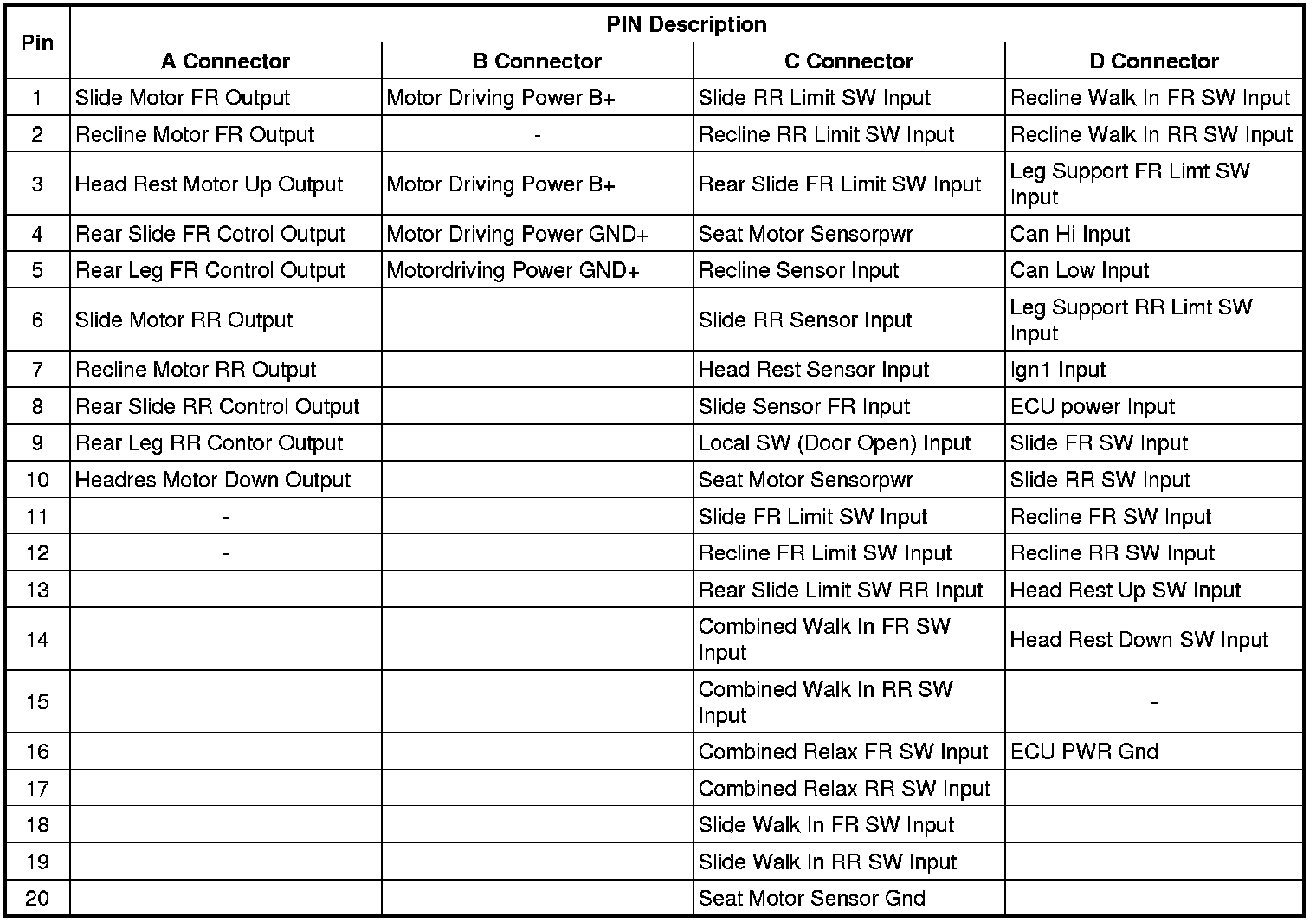

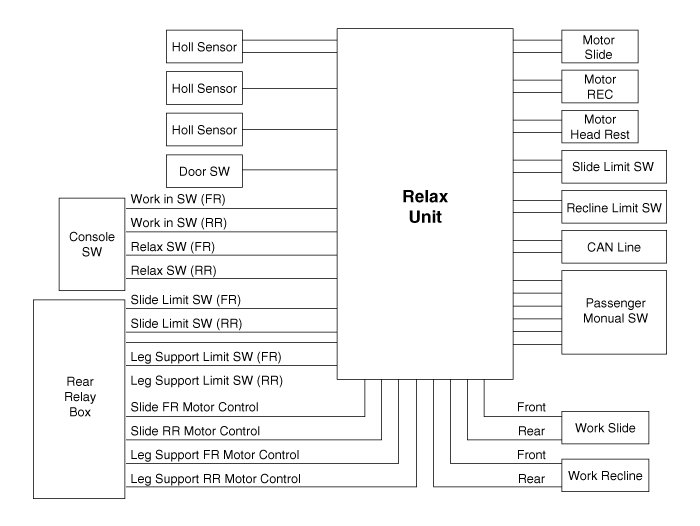

Relax Power Seat Unit (For Passenger & Rear)

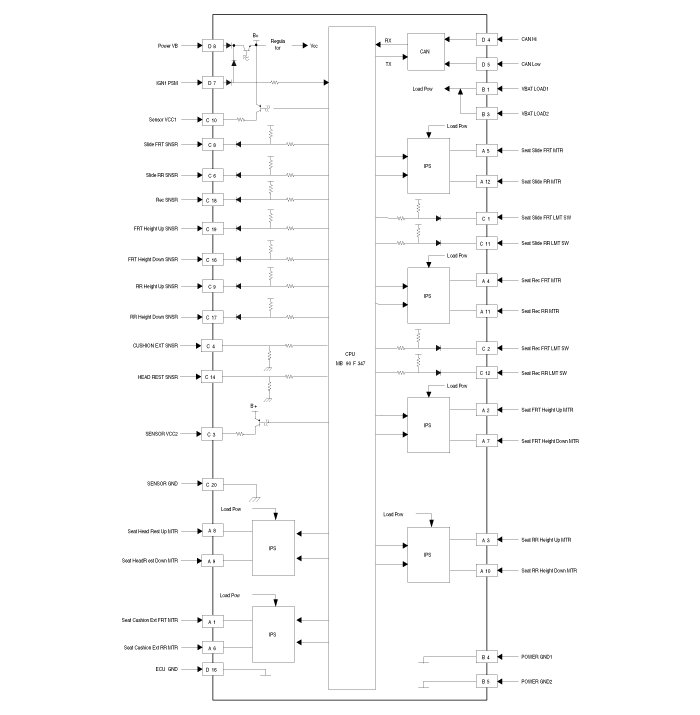

Circuit Diagram(1)

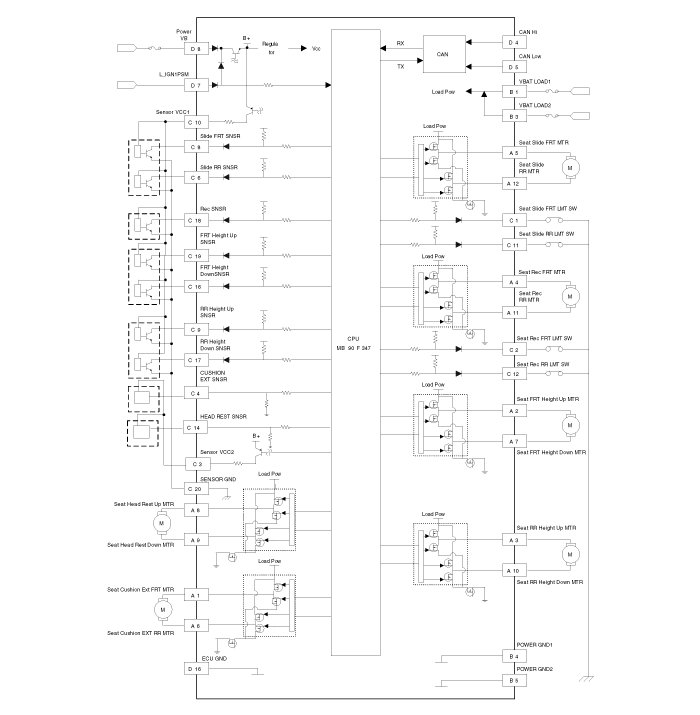

Power Seat Module - PSM (For Driver)










Circuit Diagram(2)

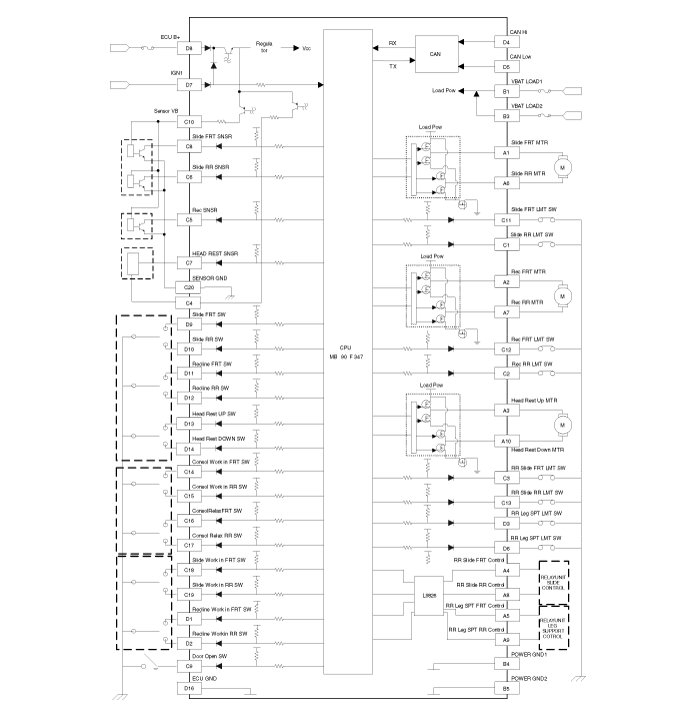

Relax Power Seat Module (For Passenger & Rear)

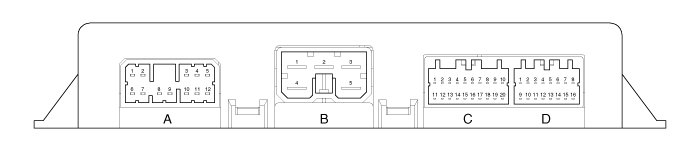

Power Seat Module (PSM) For Driver






Relax Power Seat Module (For Passenger & Rear)
