Transaxle Control Module (TCM)

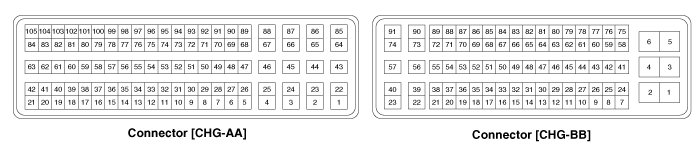

1. TCM Connector and Terminal Function

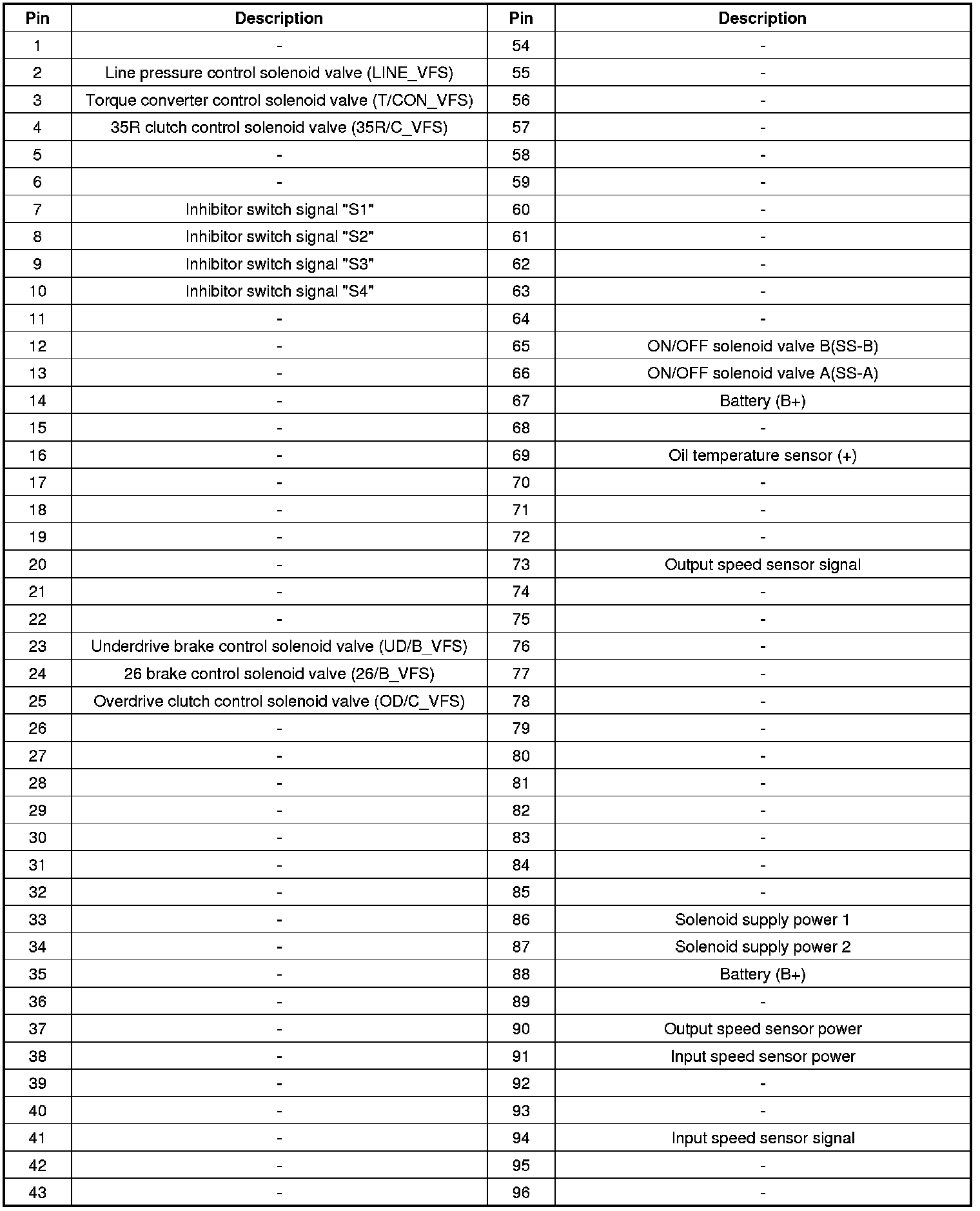

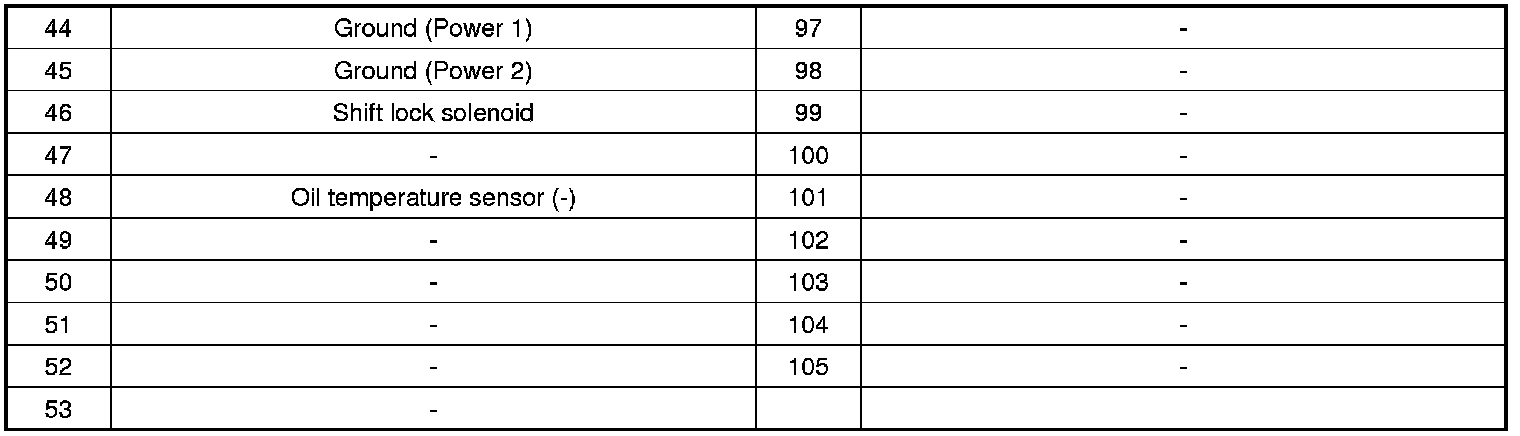

2. TCM Terminal Function

Connector [CHG-AA]

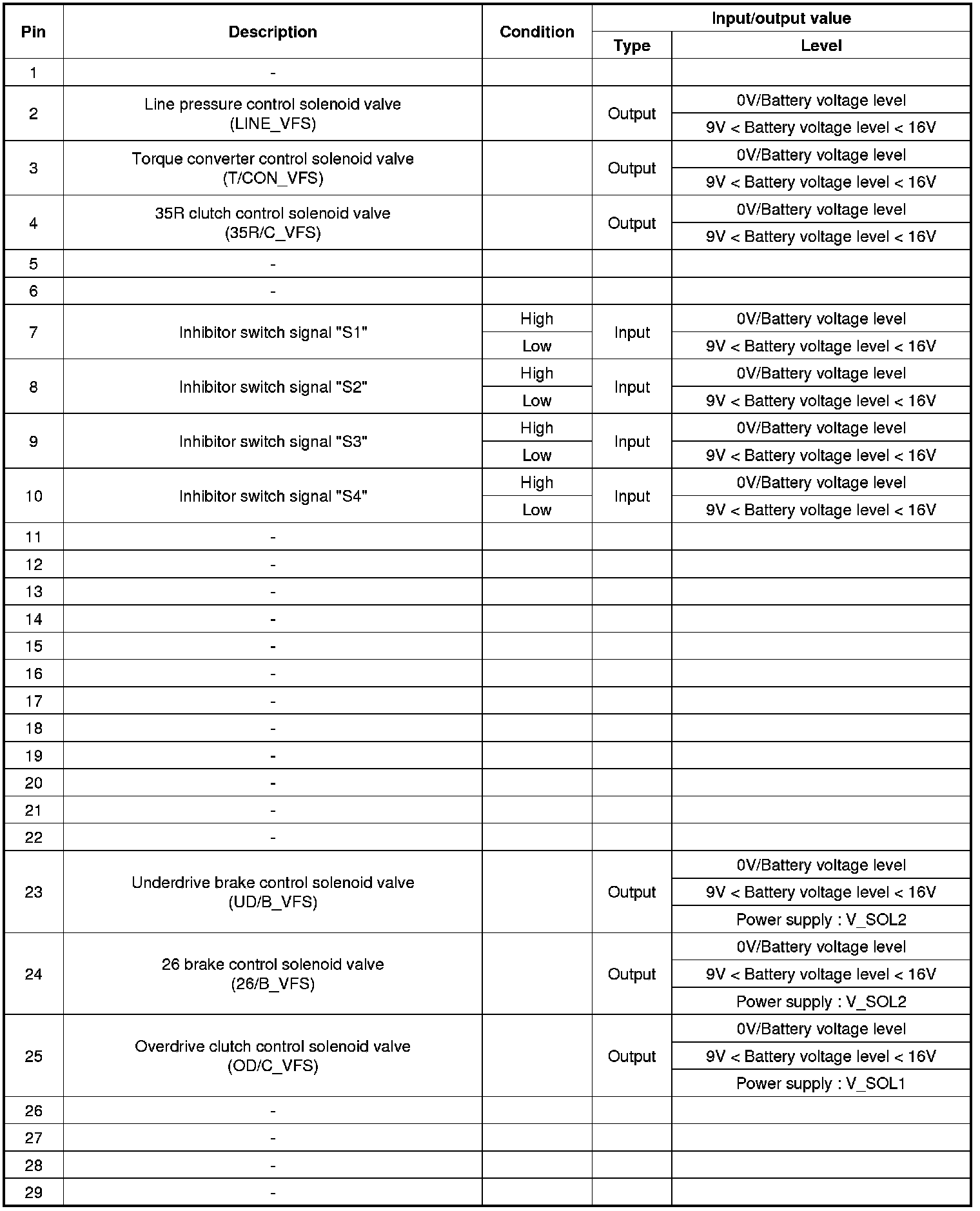

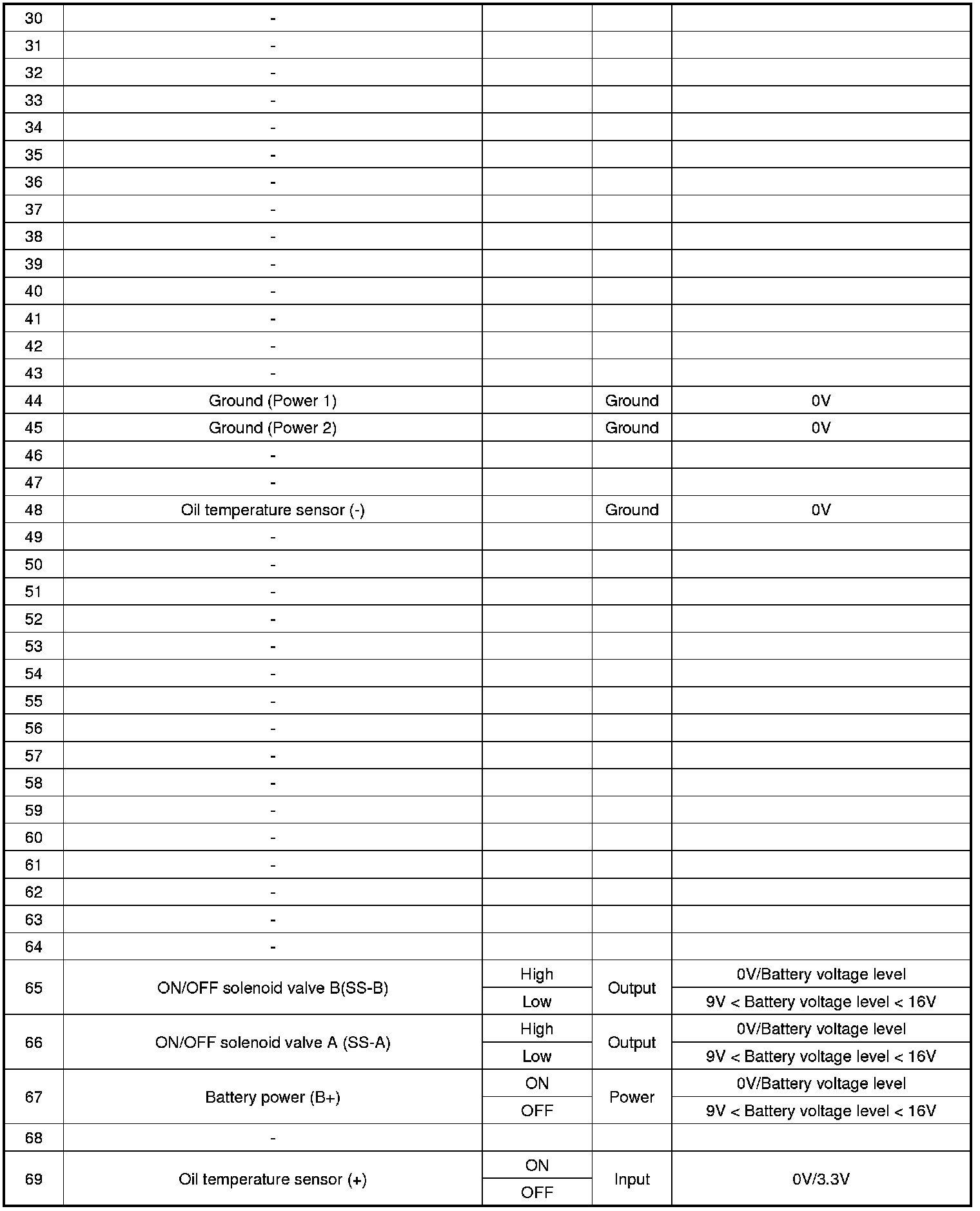

TCM Terminal Input/ Output Signal

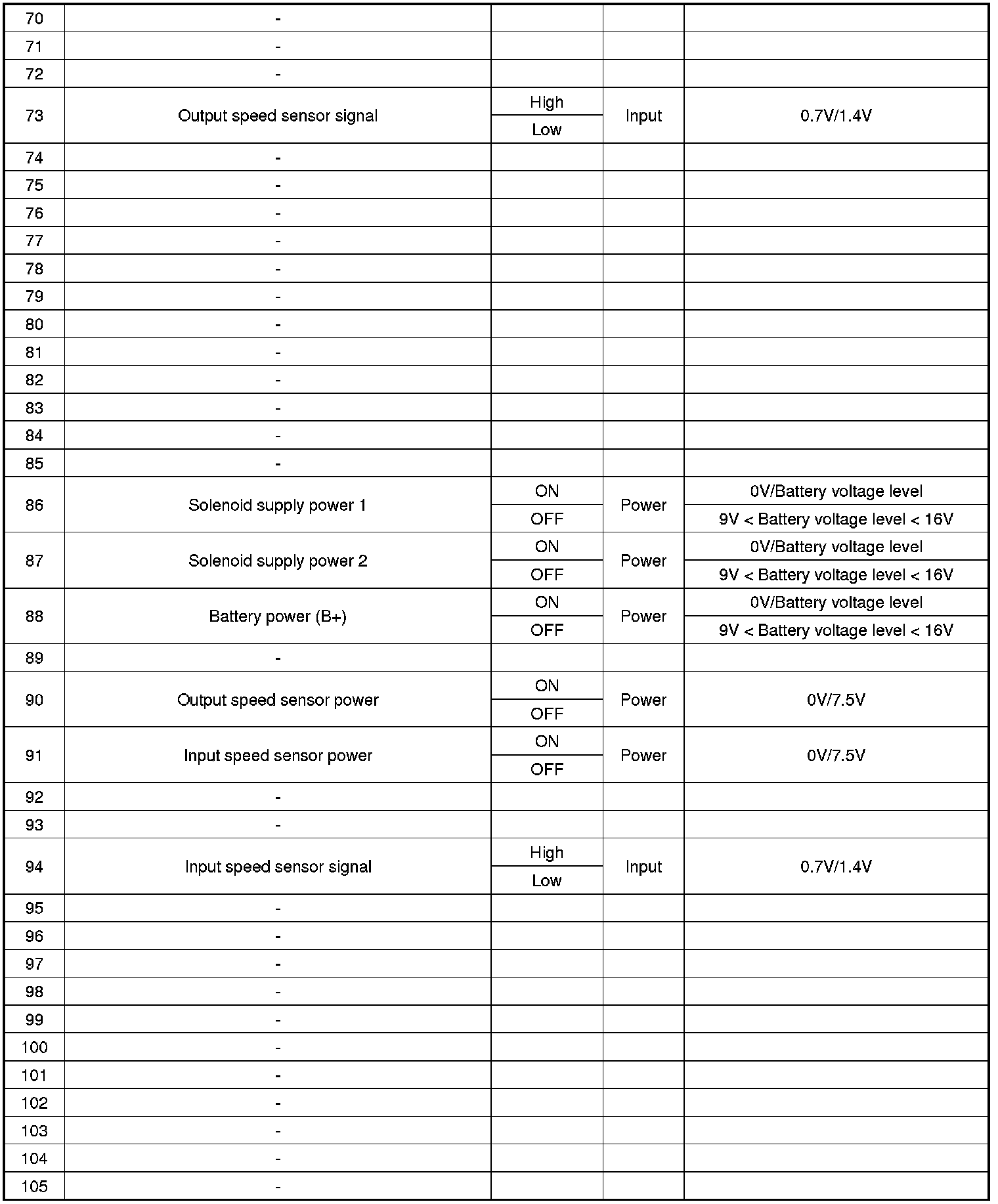

Connector [CHG-AA]

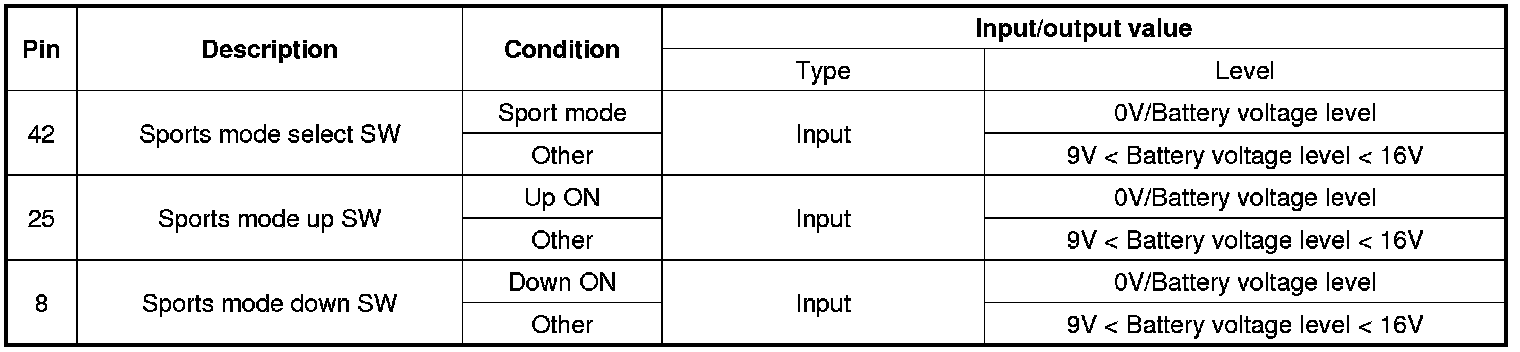

Connector [CHG-BB]

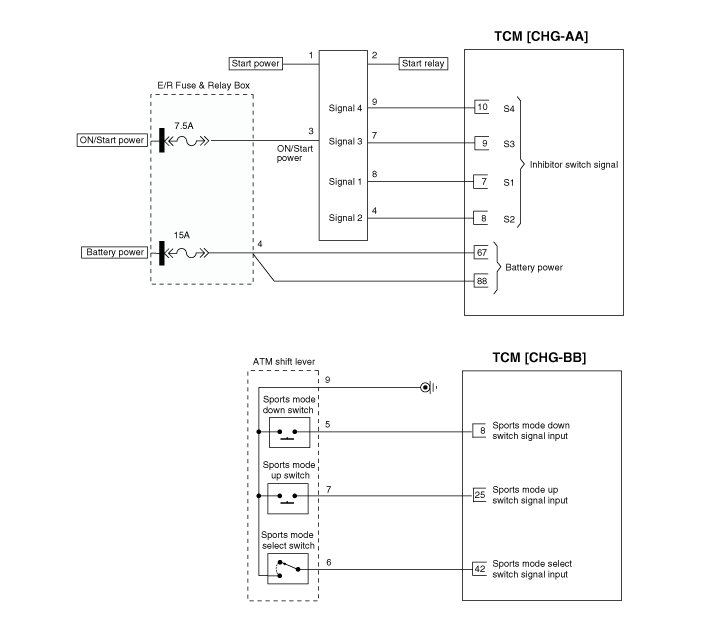

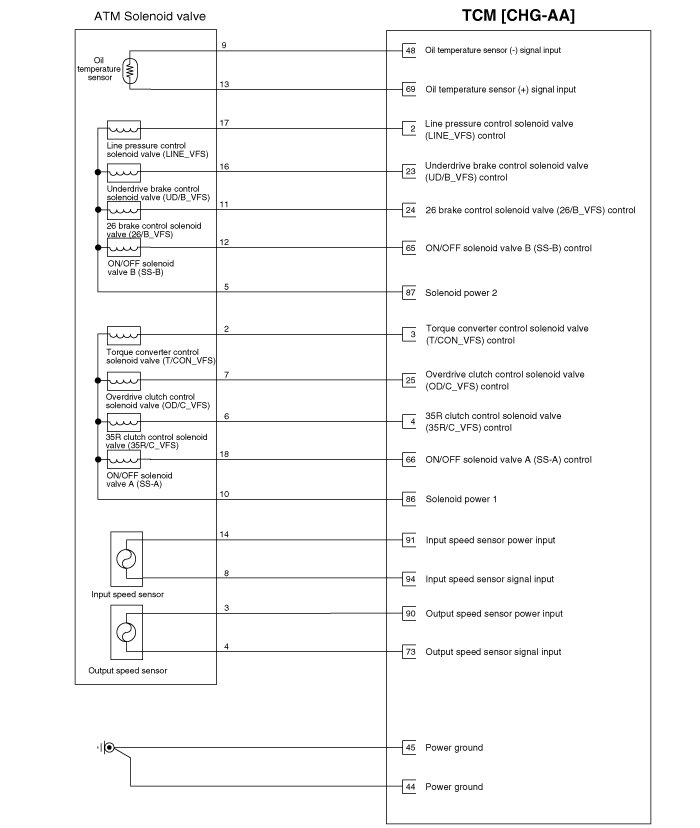

Circuit Diagram
