Control Module: Diagrams





1. TCM Connector and Terminal Function

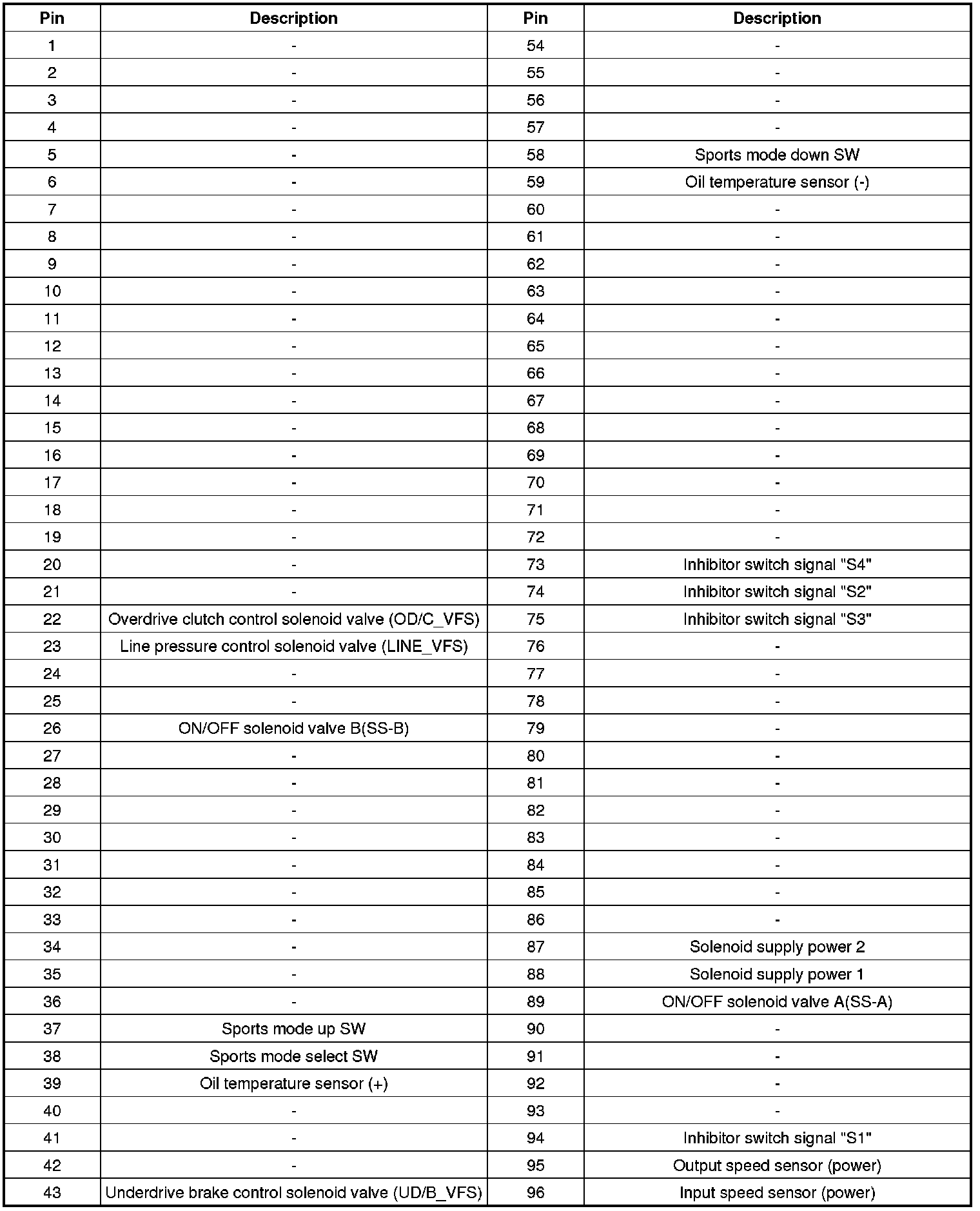

2. TCM Terminal Function

Connector [CHG-AA]

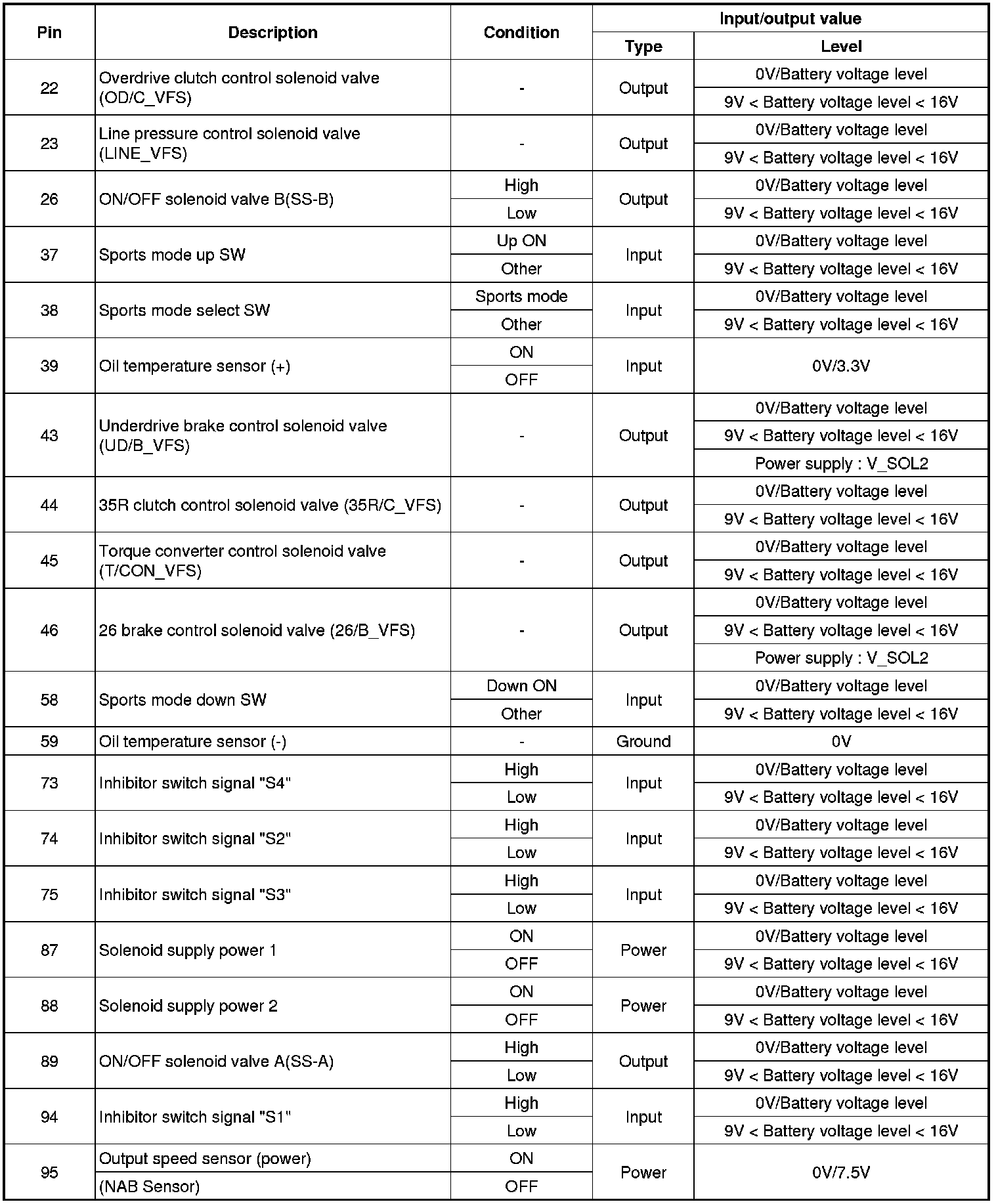

TCM Terminal Input/ Output Signal

Connector [CHG-AA]

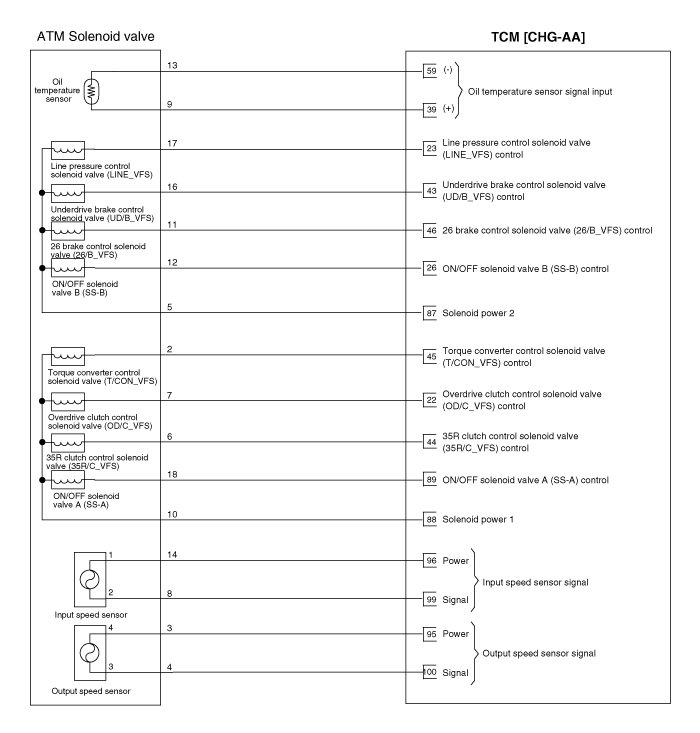

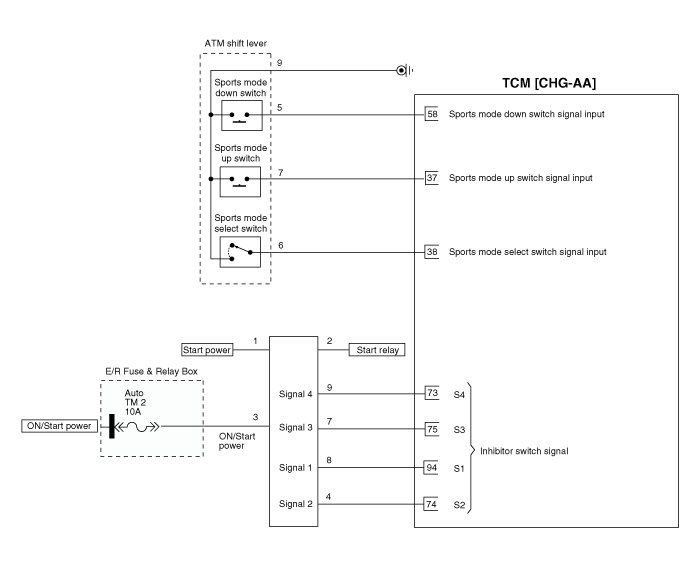

Circuit Diagram
