Hyundai
>>
2012
>>
Veloster L4-1.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Navigation Module
Navigation Module

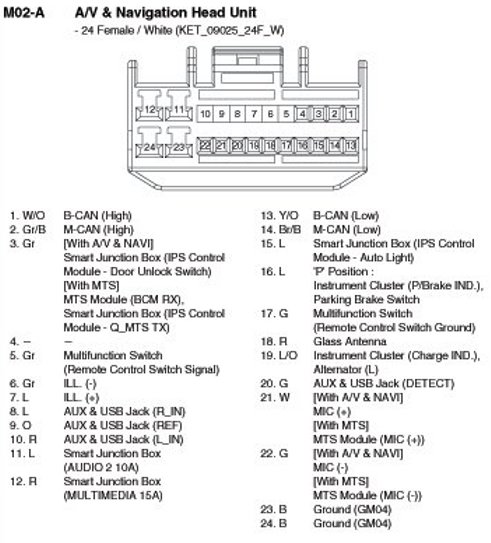

M02-A A/V & Navigation Head Unit:

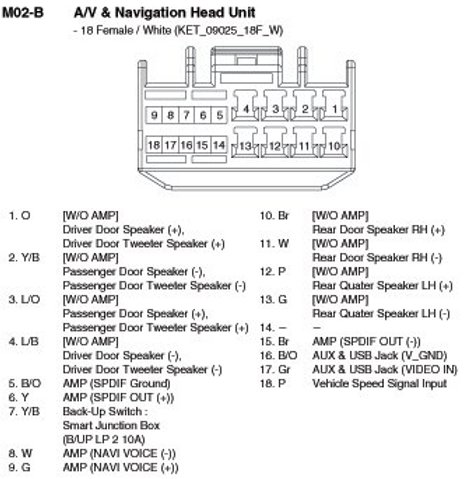

M02-B A/V & Navigation Head Unit:

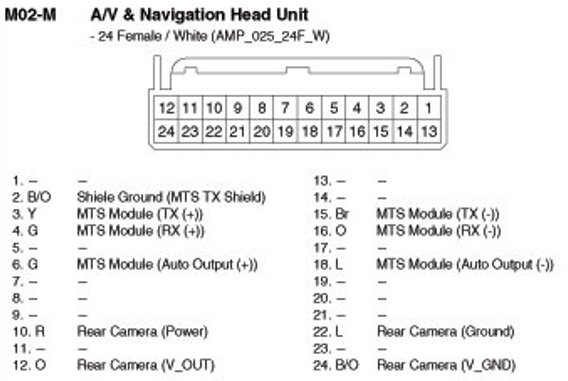

M02-M A/V & Navigation Head Unit:
