Home >> Hyundai >> 2012 >> Tucson FWD L4-2.4L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Suspension >> System Specifications

System Specifications





Specifications

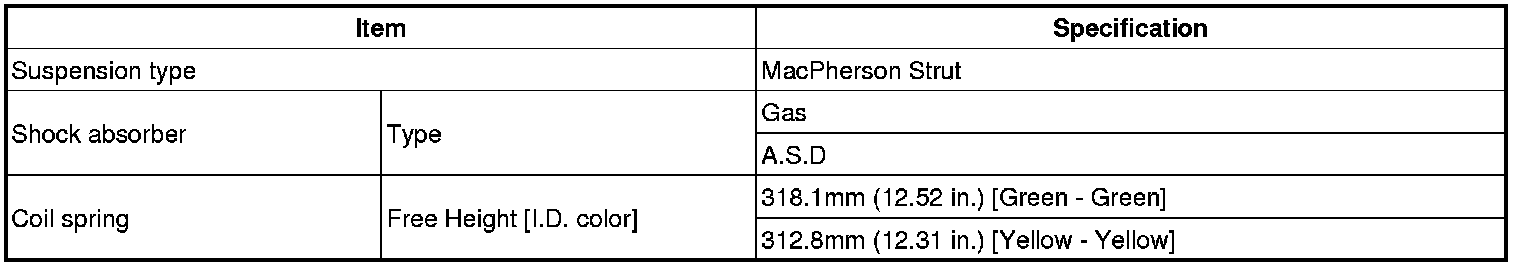

Front Suspension

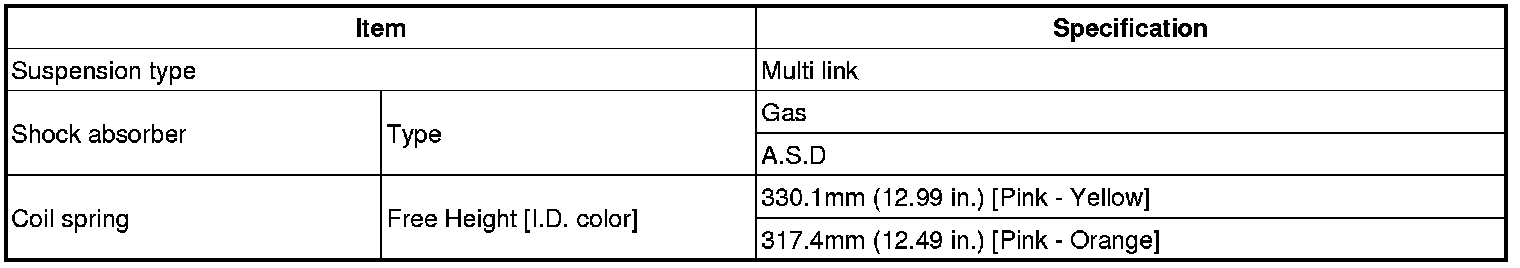

Rear Suspension

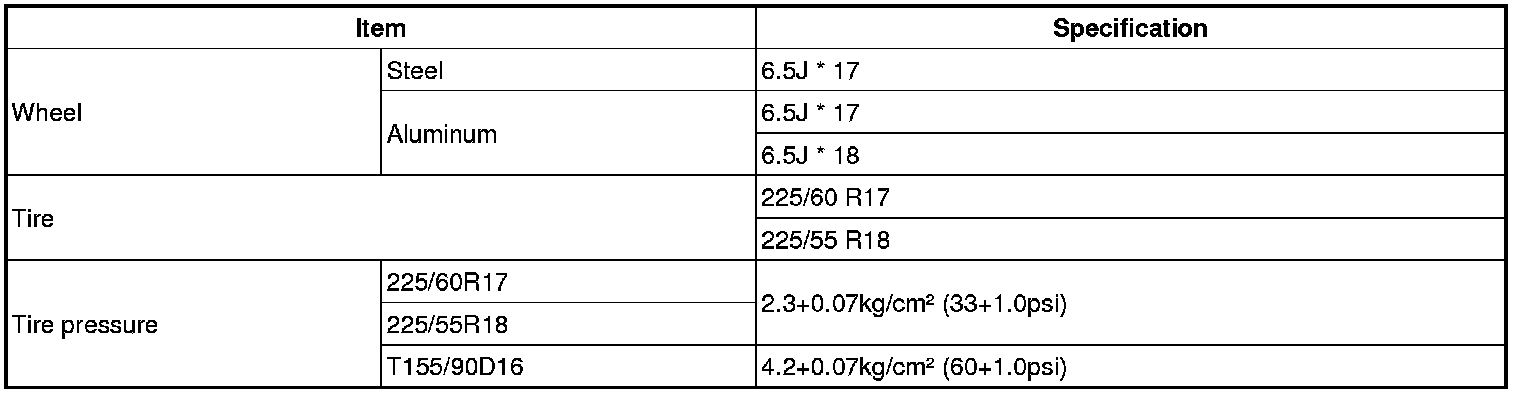

Wheel & Tire

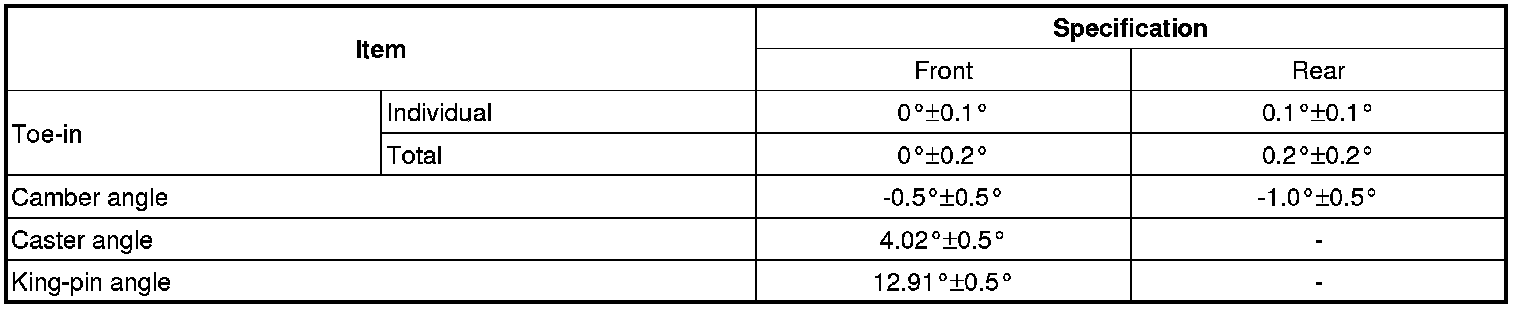

Wheel Alignment (Front)






Tightening torque

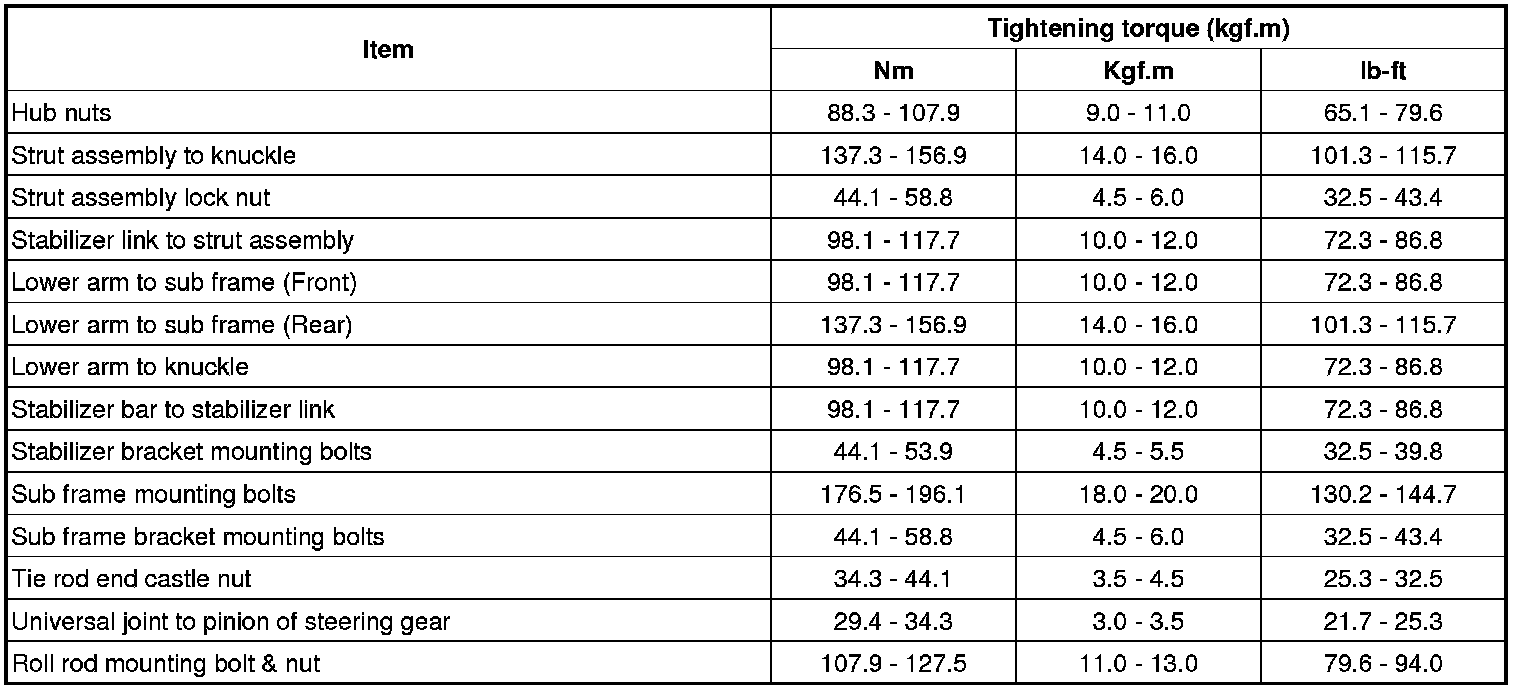

Front Suspension

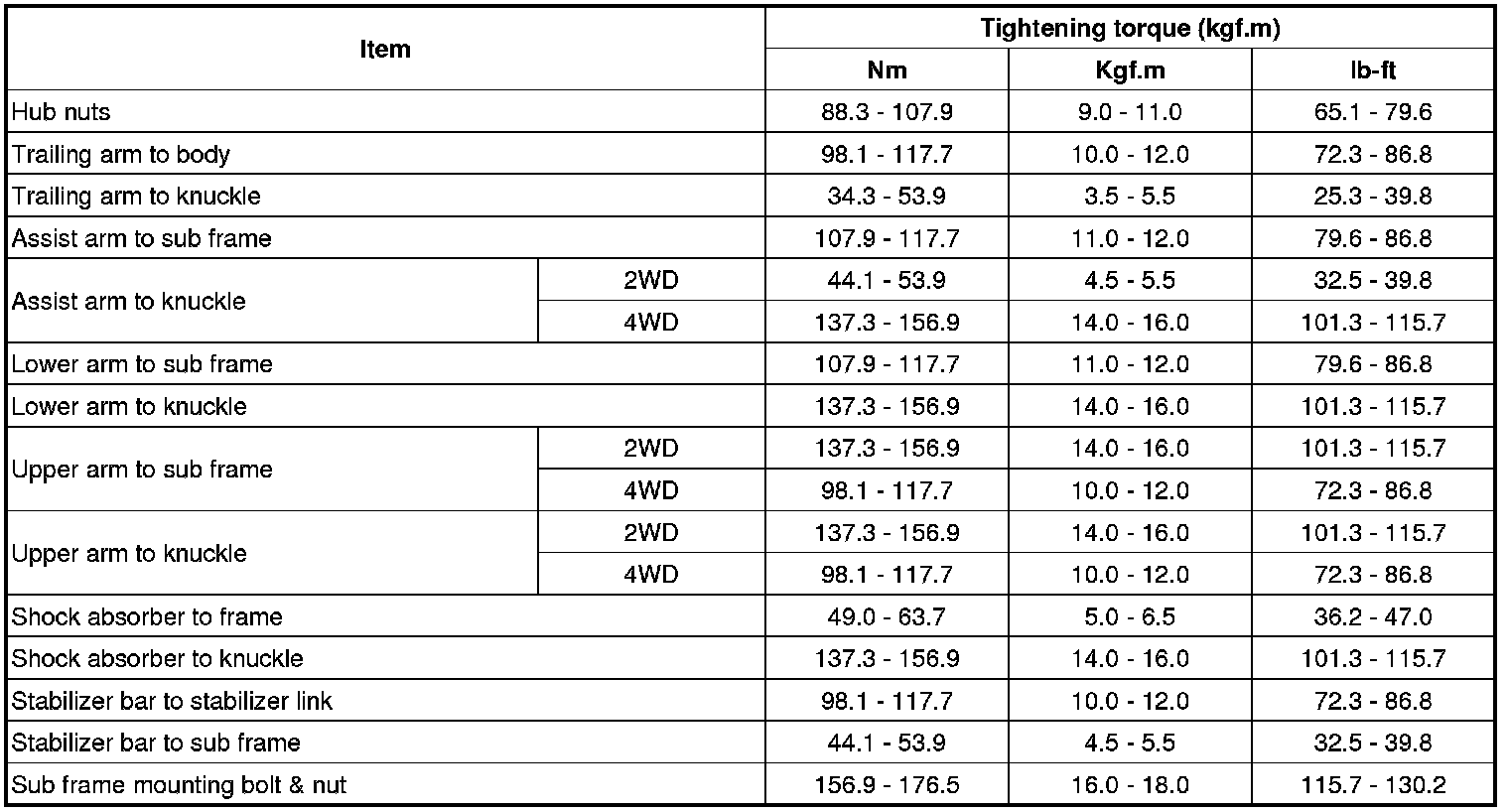

Rear Suspension
