M20-R Multifunction Switch (Remote Control)
M20-R Multifunction Switch (Remote Control)

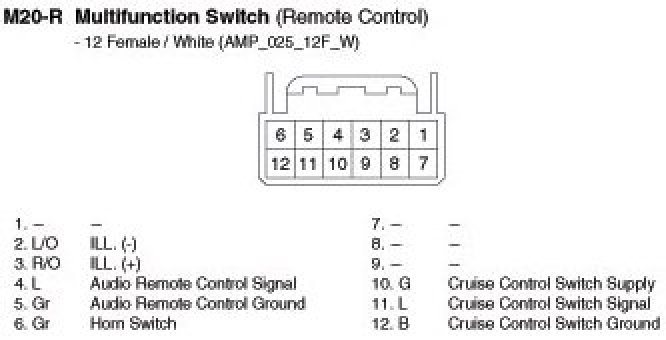

M20-R Multifunction Switch (Remote Control):
