Combination Switch
>>
Multifunction Switch (Light)
Multifunction Switch (Light)

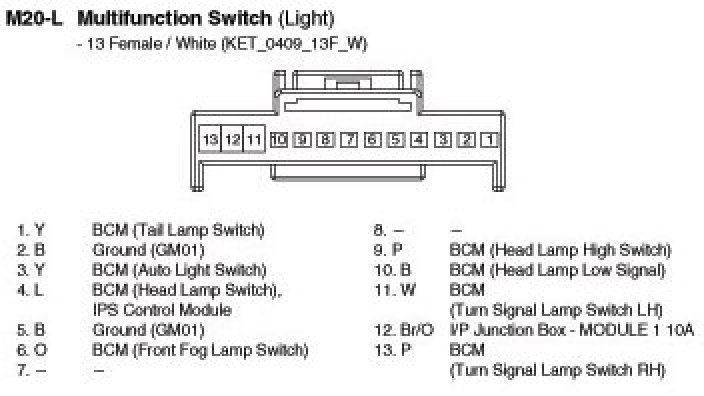

M20-L Multifunction Switch (Light):
