Seat Temperature Control Module
>>
Driver Seat Warmer Module
Driver Seat Warmer Module

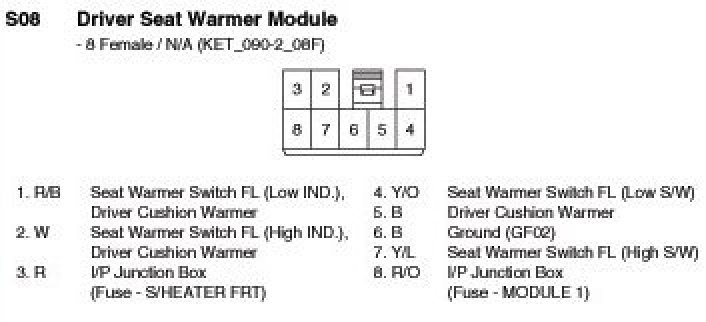

S08 Driver Seat Warmer Module:
