Power Distribution Module
Power Distribution Module

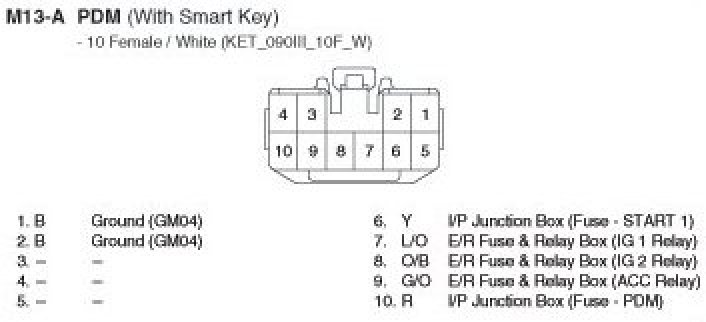

M13-A PDM (With Smart Key):

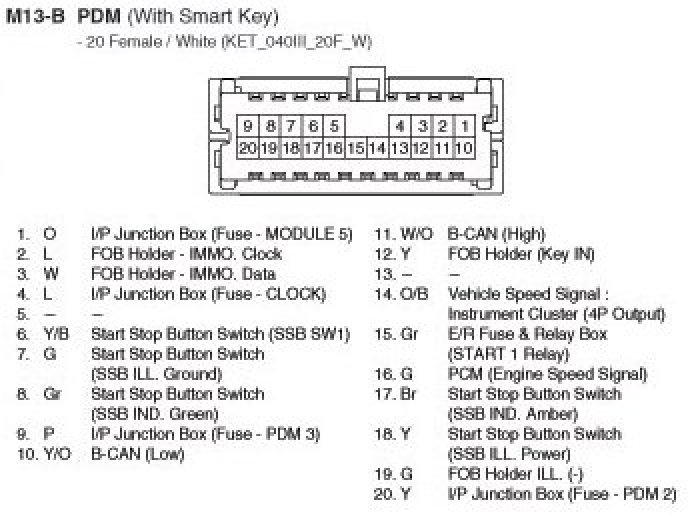

M13-B PDM (With Smart Key):
