Connector Views
>>
Keyless Entry Module
Keyless Entry Module

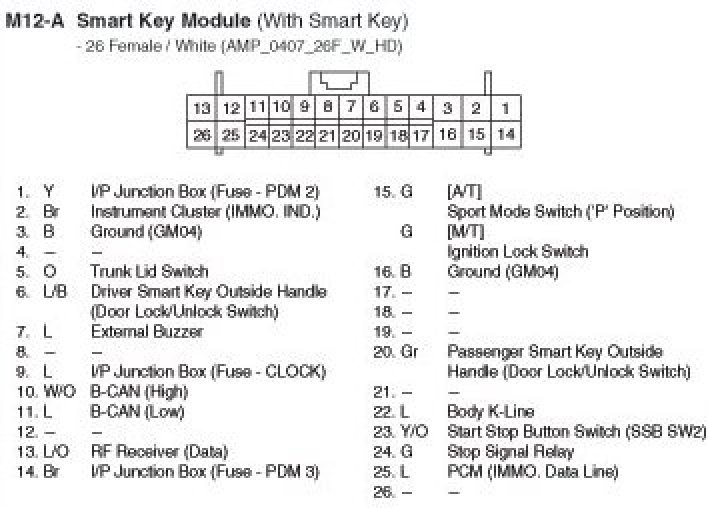

M12-A Smart Key Module (With Smart Key):

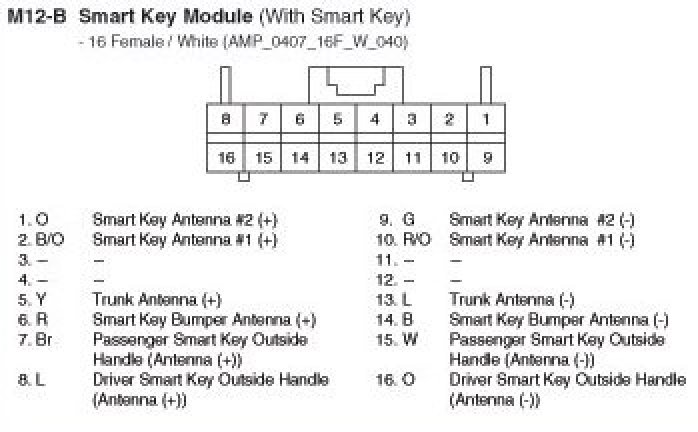

M12-B Smart Key Module (With Smart Key):
