Entertainment System Control Module
>>
A/V & Navigation Head Unit
A/V & Navigation Head Unit

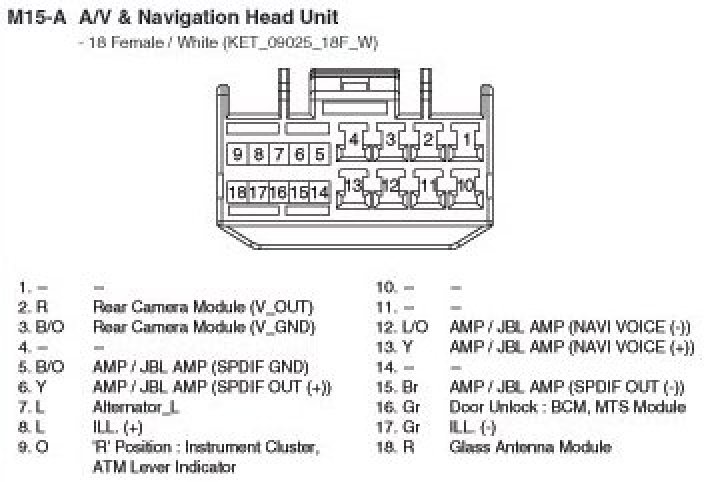

M15-A A/V & Navigation Head Unit:

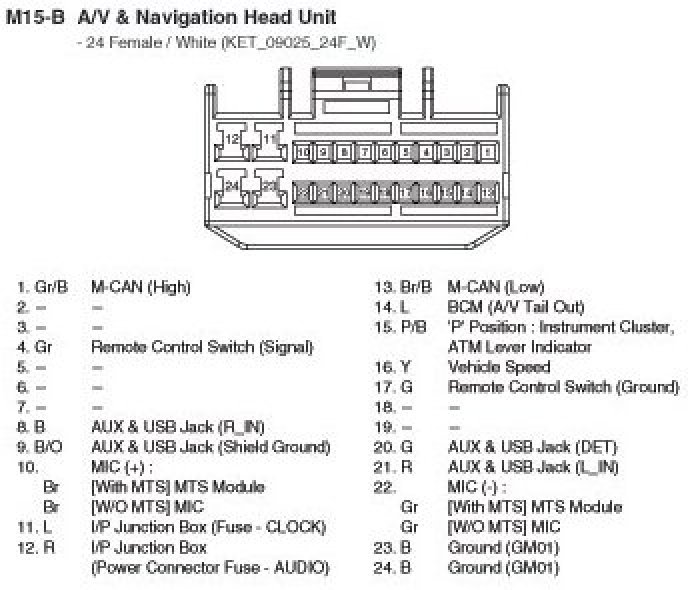

M15-B A/V & Navigation Head Unit:

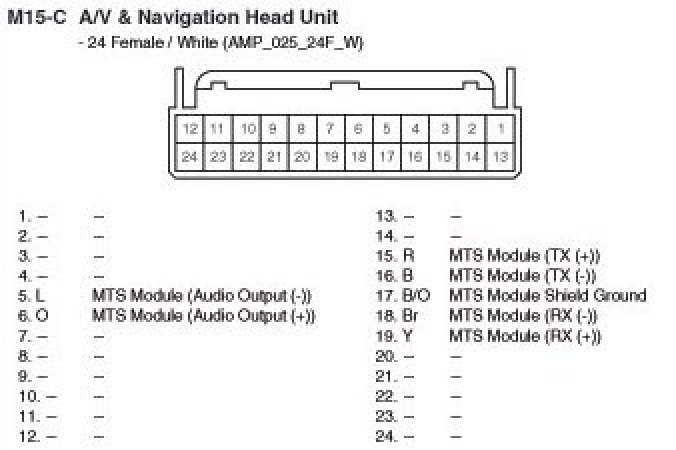

M15-C A/V & Navigation Head Unit:
