Home >> Hyundai >> 2012 >> Sonata L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module >> EMS Box

EMS Box

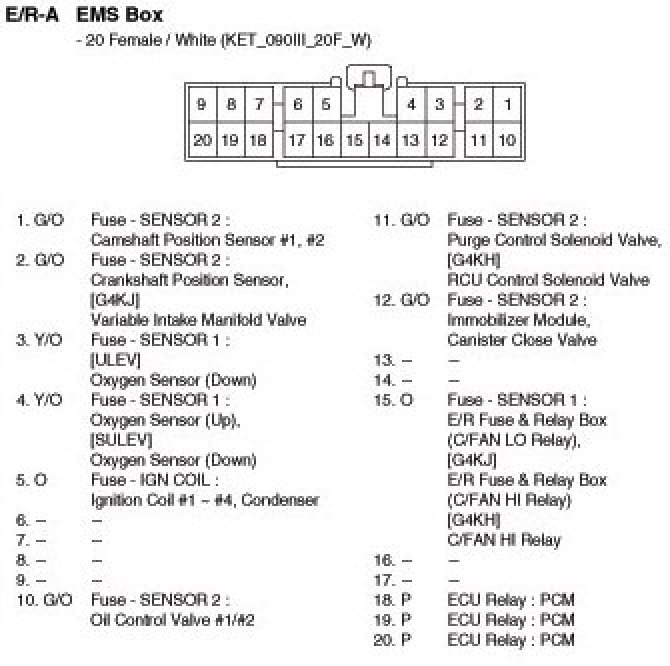

E/R-A EMS Box:

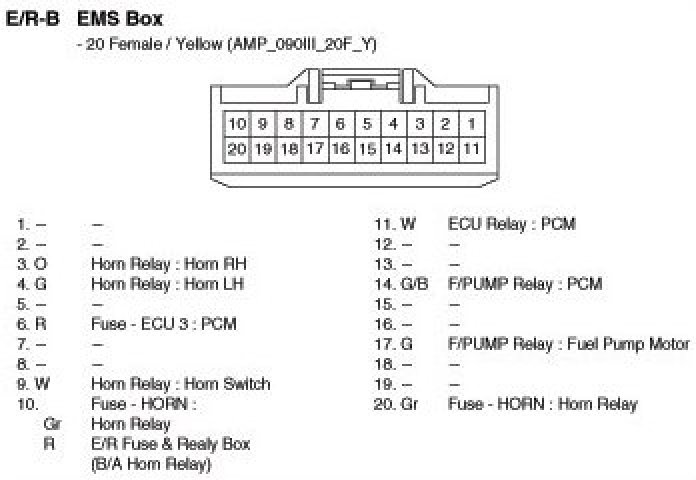

E/R-B EMS Box:

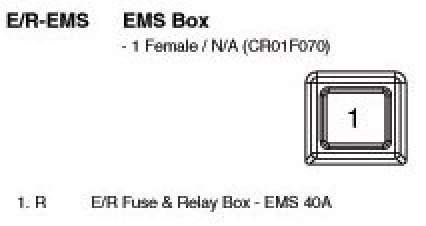

E/R-EMS EMS Box:
