A/C Control Module (Auto A/C, With Navigation)

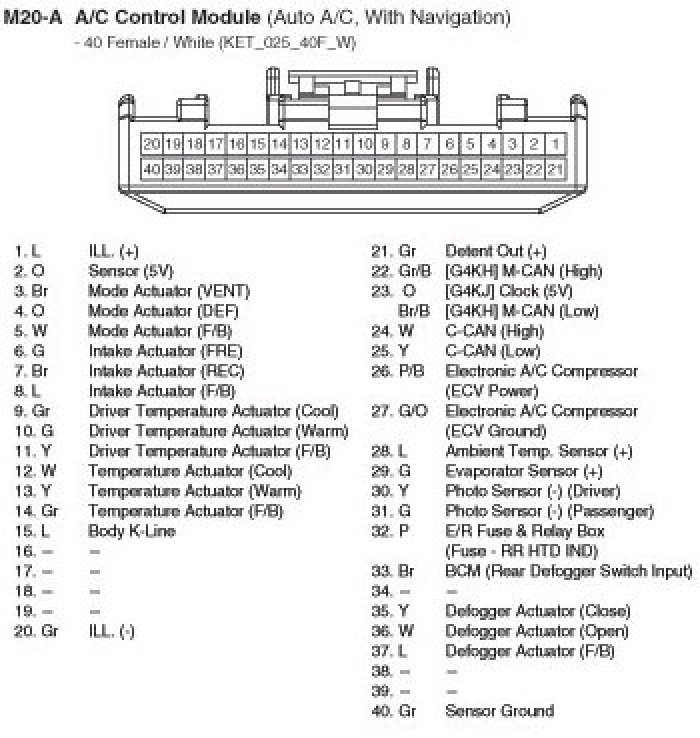

M20-A A/C Control Module (Auto A/C, With Navigation):

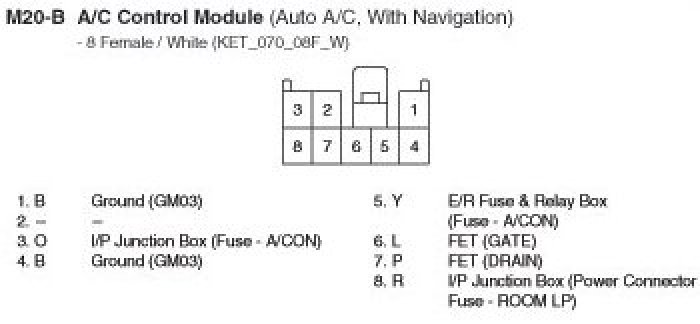

M20-B A/C Control Module (Auto A/C, With Navigation):
