Hyundai
>>
2012
>>
Sonata L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Air Bag Control Module
Air Bag Control Module

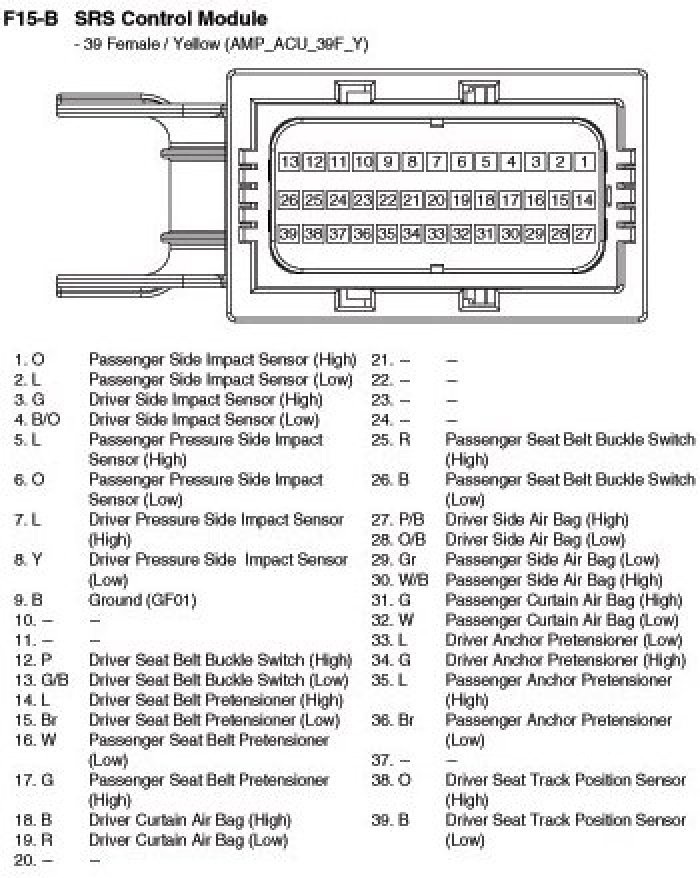

F15-B SRS Control Module:

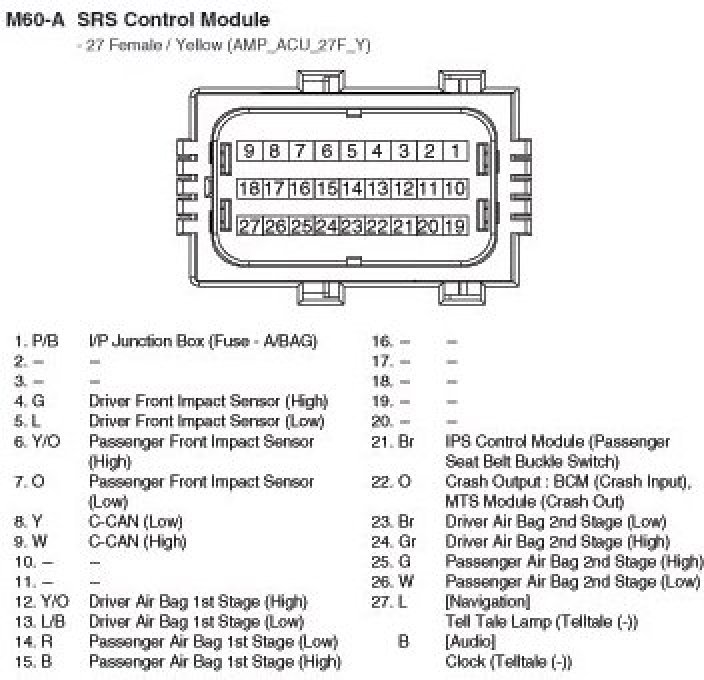

M60-A SRS Control Module:
