Control Module, Transfer Case

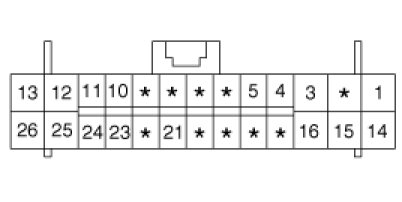

1. 4WD ECU Harness connector





2. 4WD ECU Terminal Function

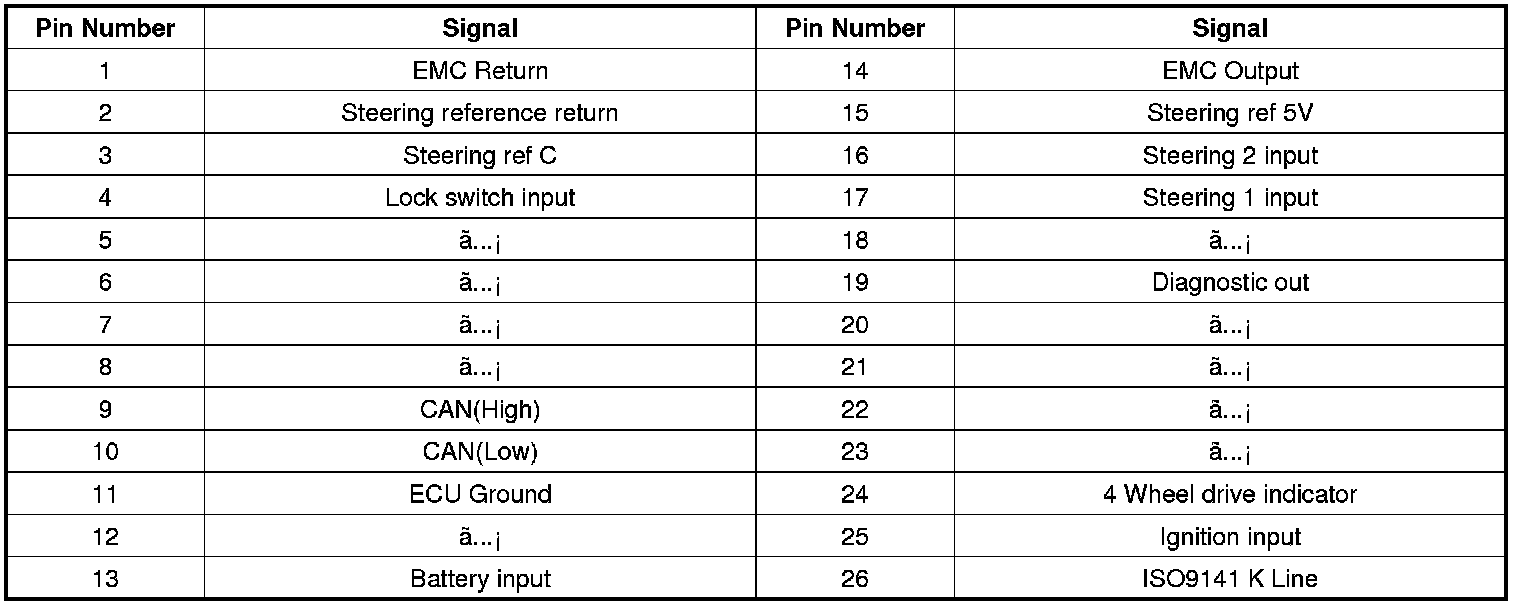

4WD ECU Pin Number "ESP"

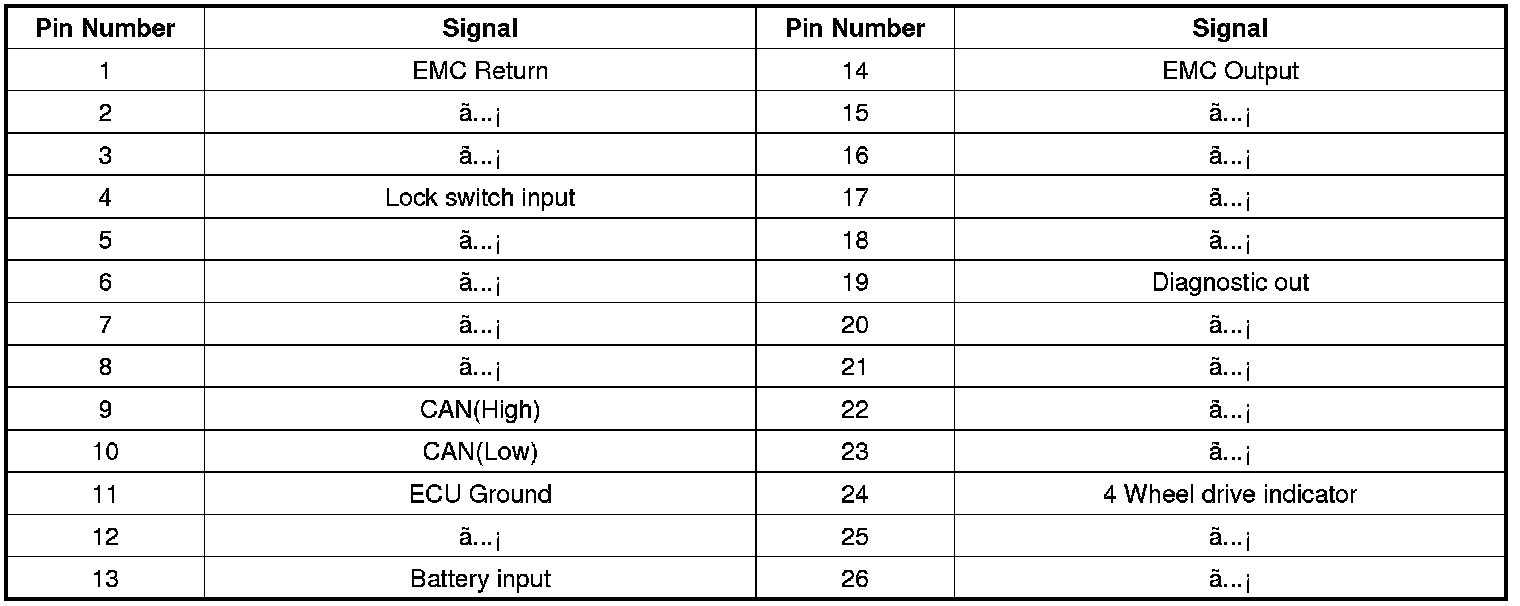

4WD ECU Pin Number "ABS"
