Engine Control Module





ECM Terminal And Input/Output signal

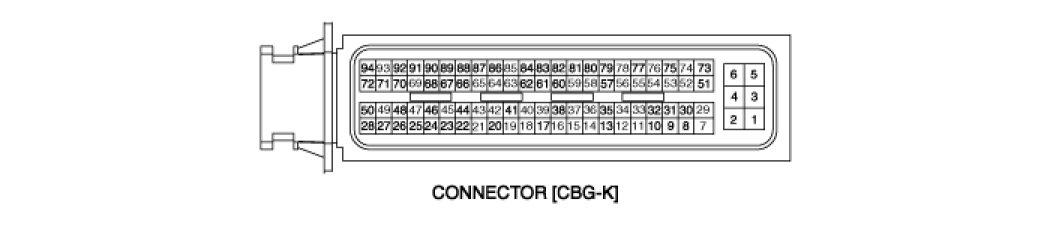

ECM Harness Connector

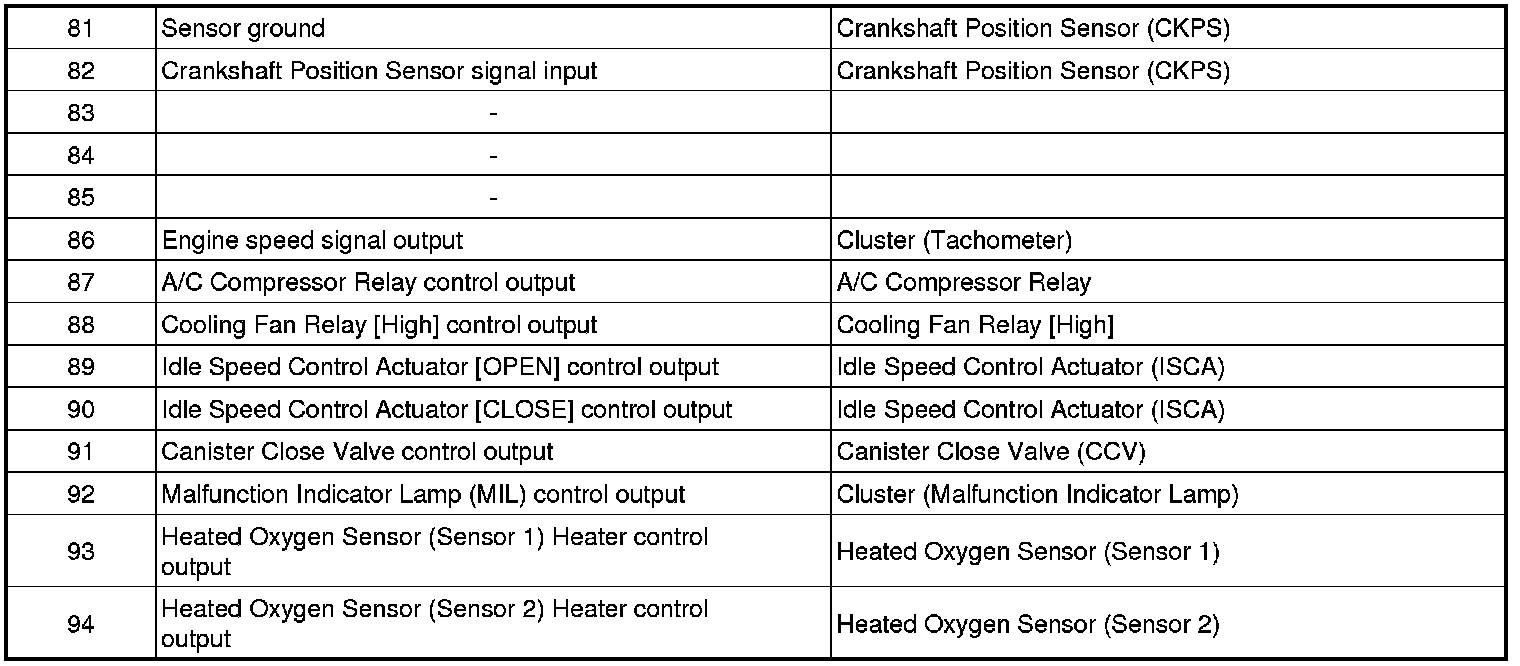

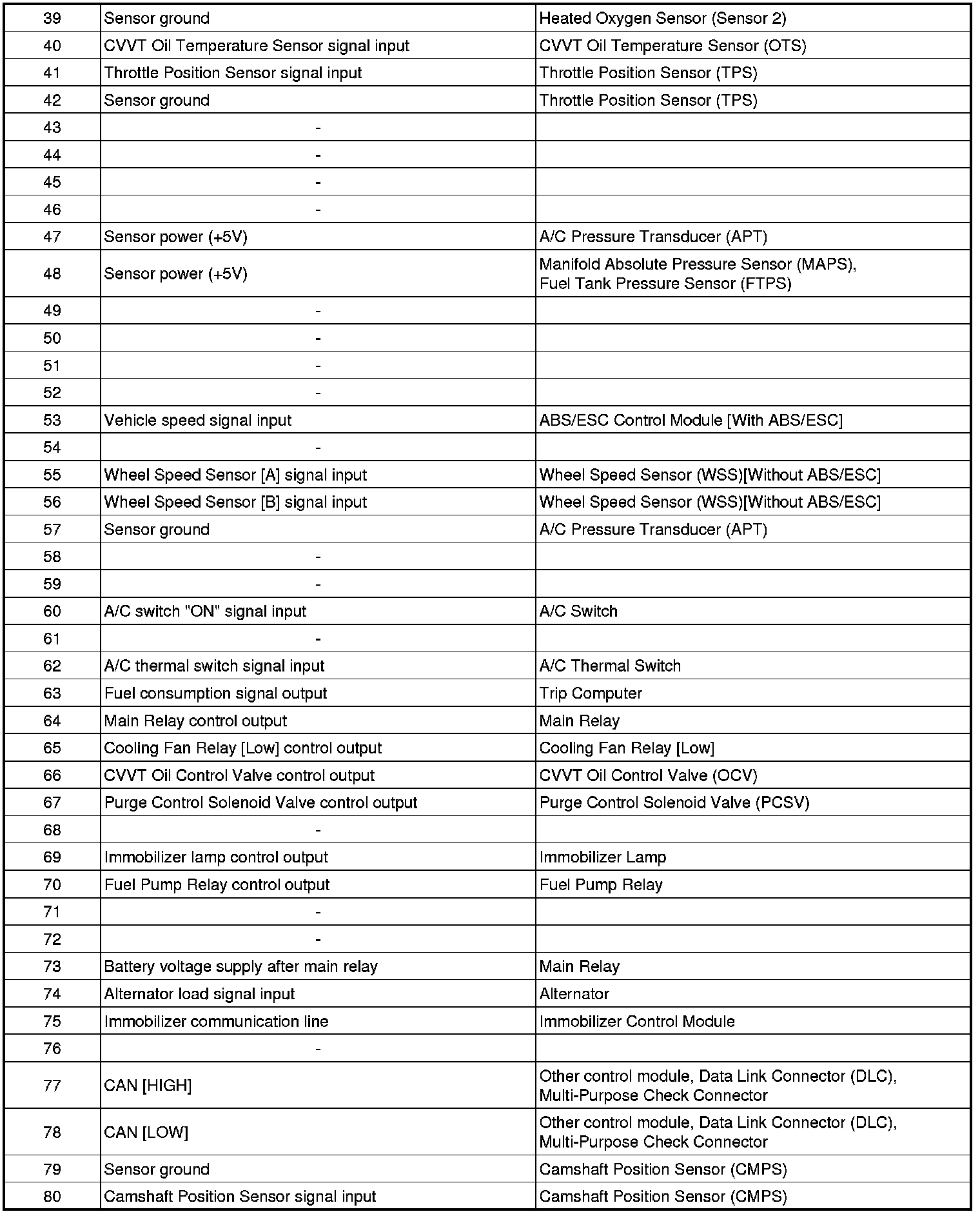

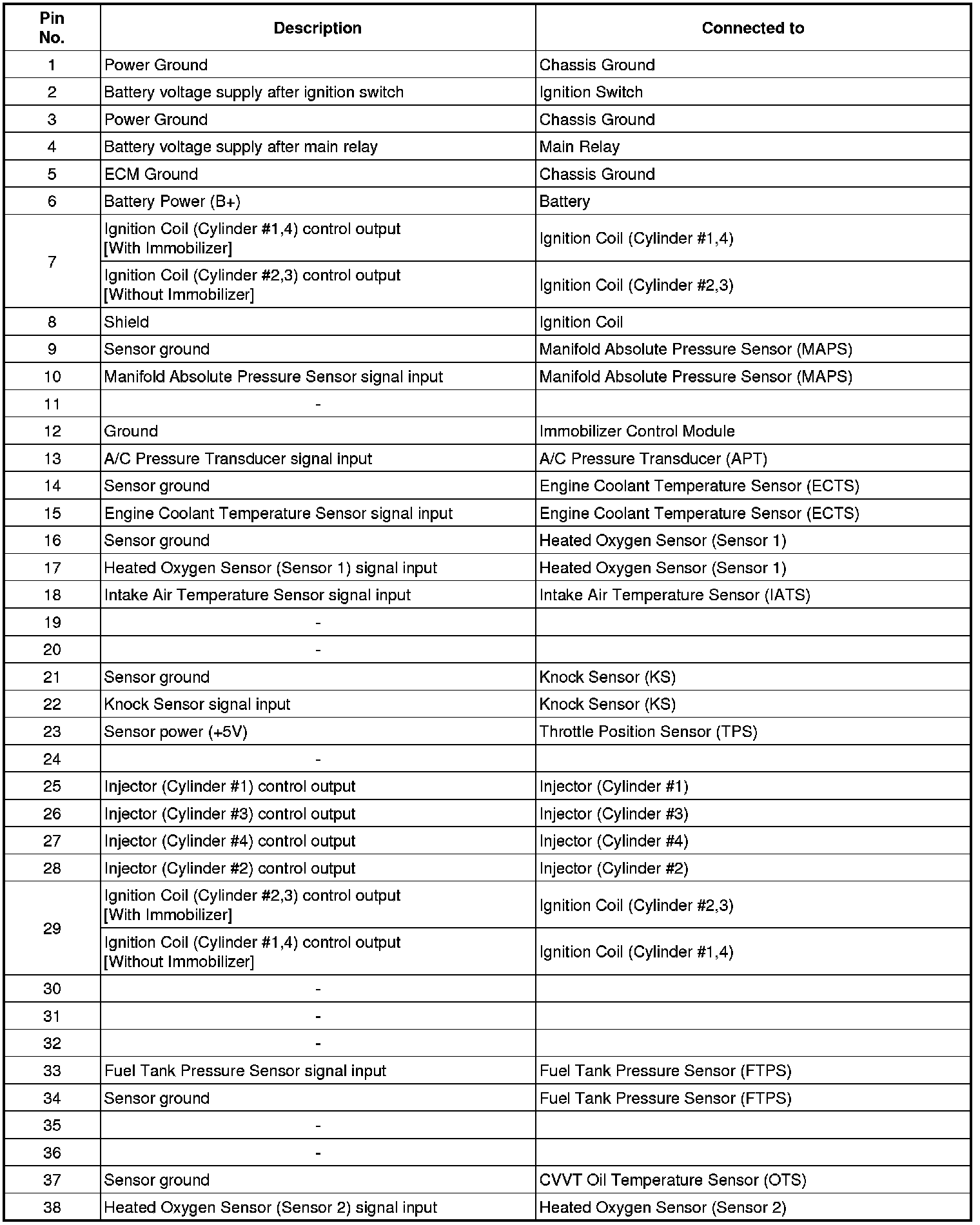

ECM Terminal Function
Connector [CBG-K]

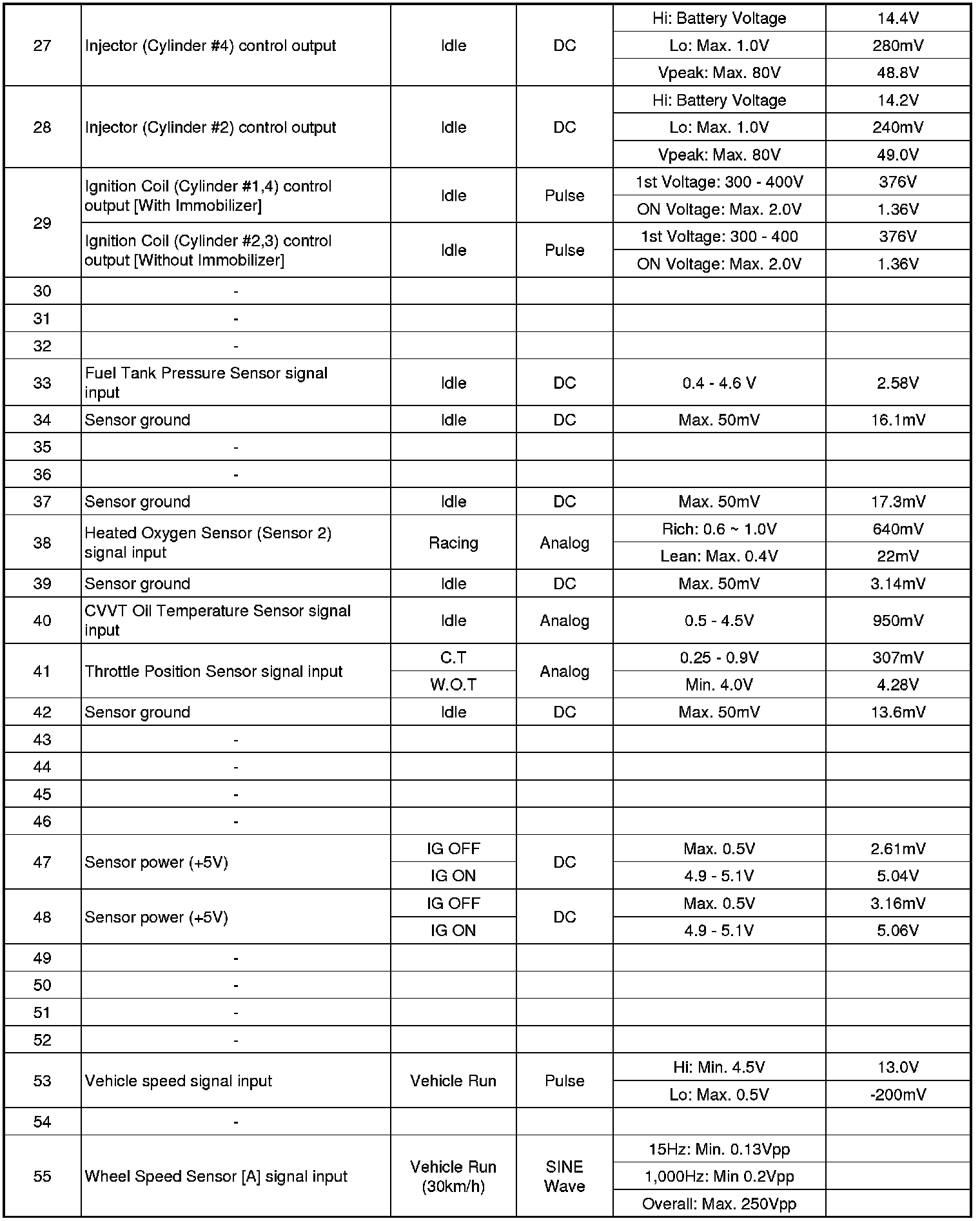

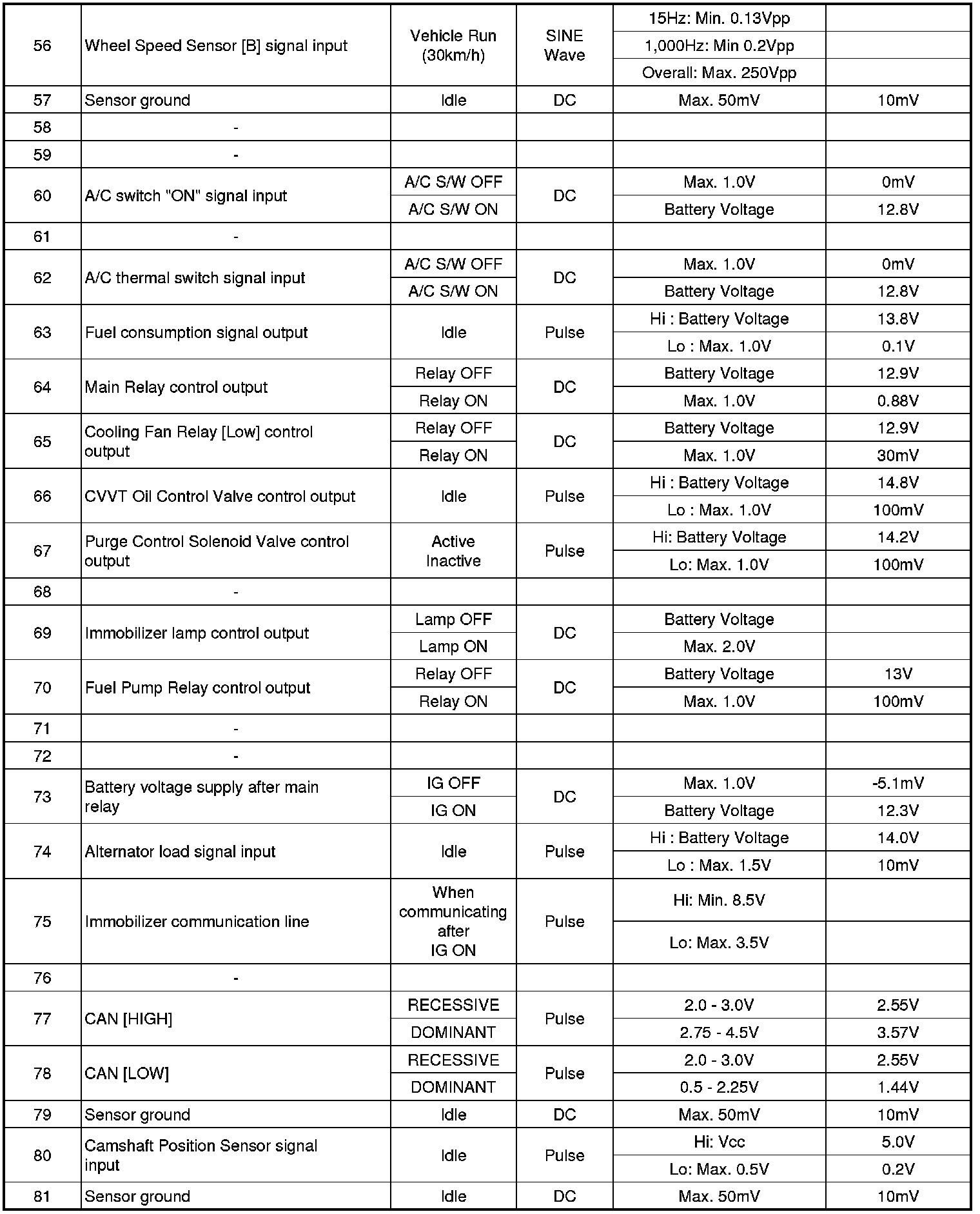

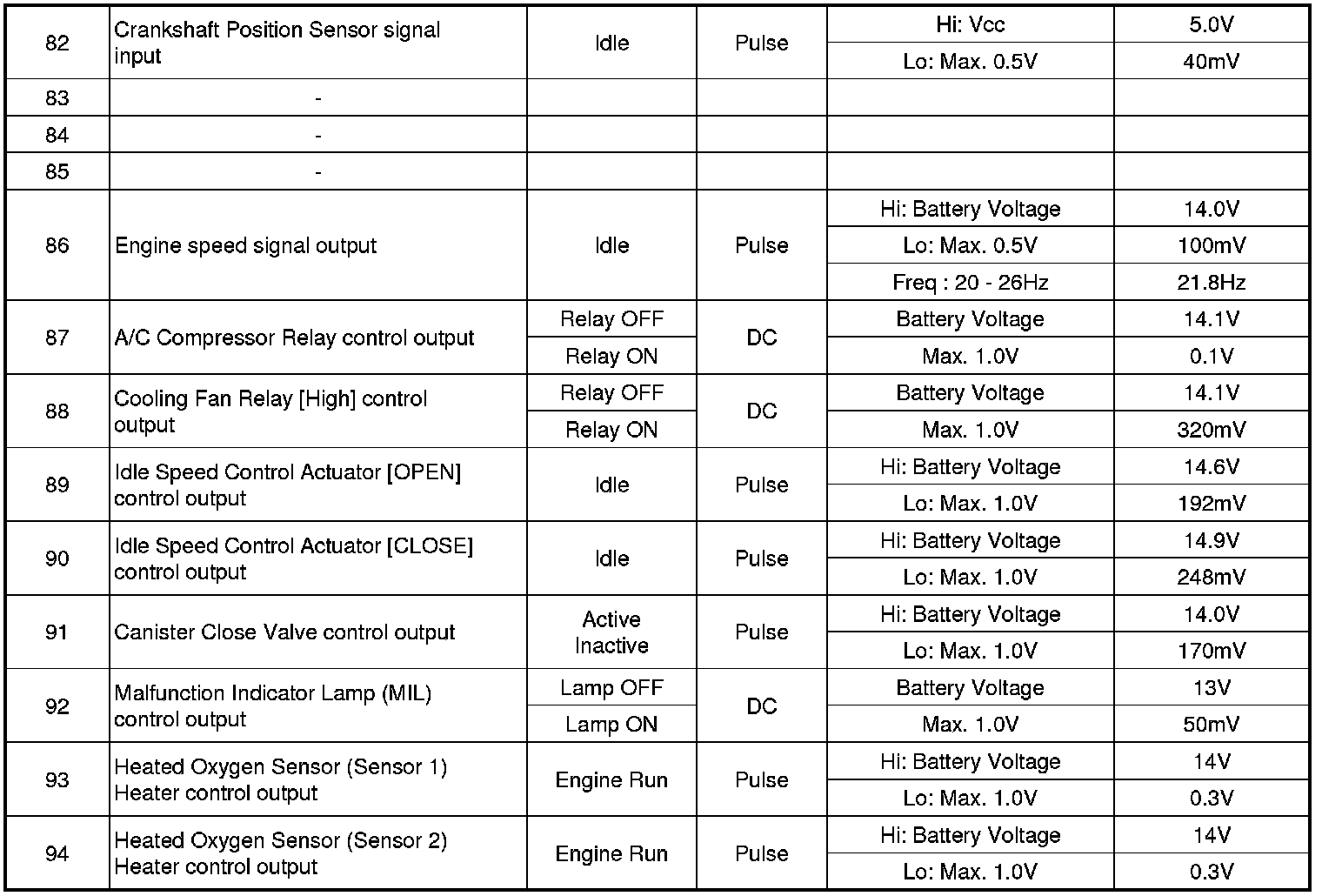

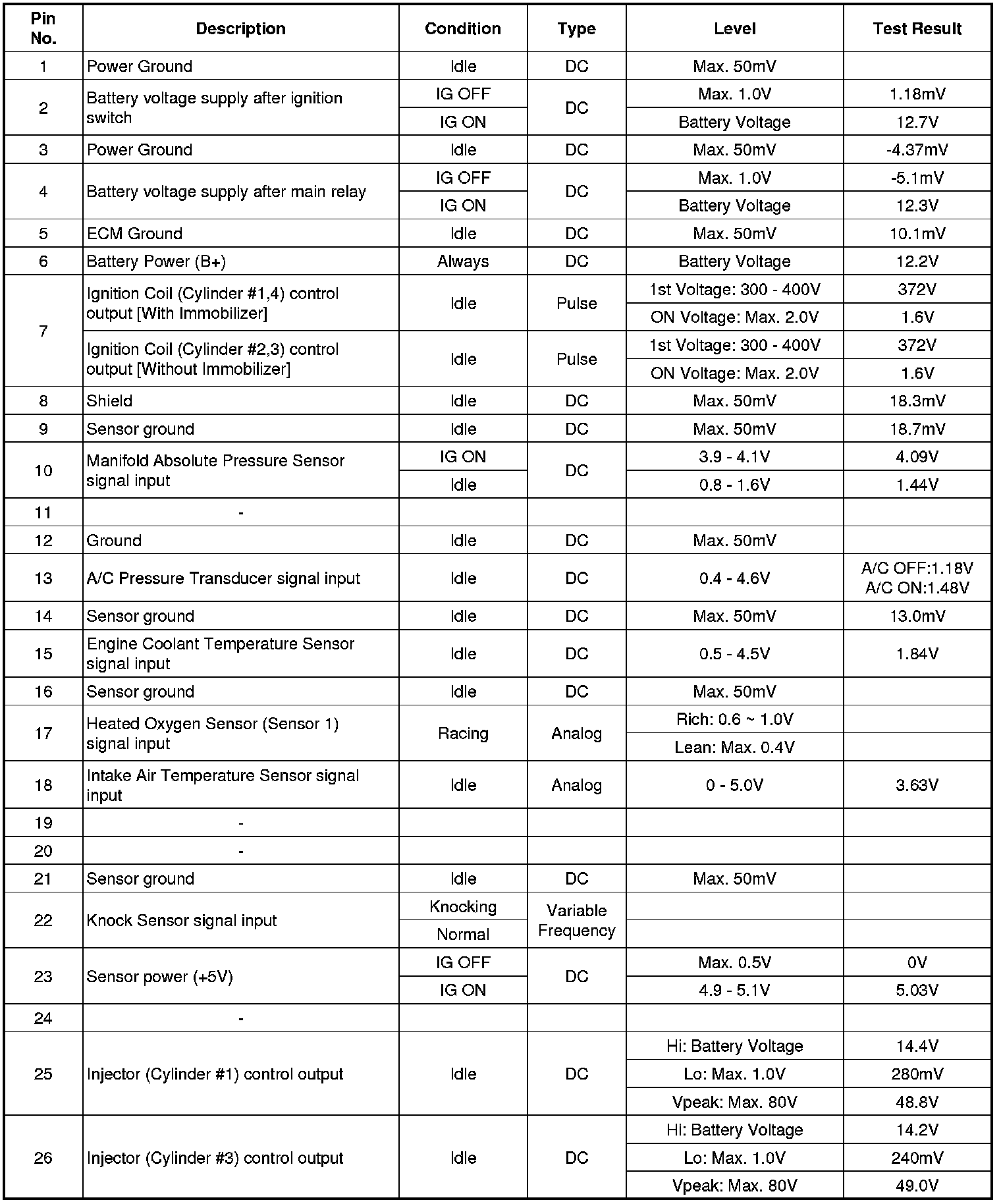

ECM Terminal Input/Output Signal
Connector [CBG-K]
