Home >> Hyundai >> 2012 >> Elantra L4-1.8L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Engine Control Module >> Diagrams >> Connector Views >> PCM (A/T)

PCM (A/T)

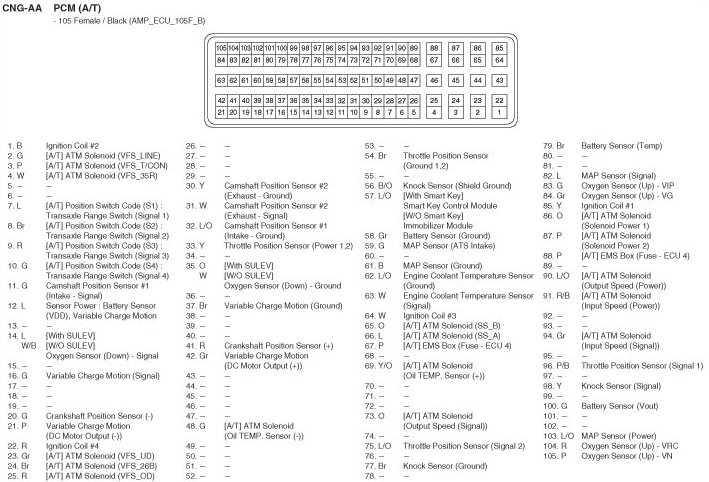

CNG-AA PCM (A/T):

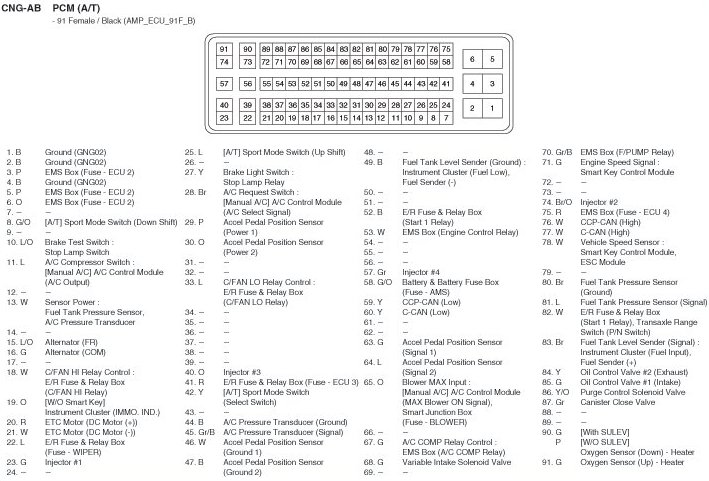

CNG-AB PCM (A/T):
