Hyundai
>>
2012
>>
Elantra L4-1.8L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Engine Control Module
>>
Diagrams
>>
Connector Views
>>
ECM (M/T)
ECM (M/T)

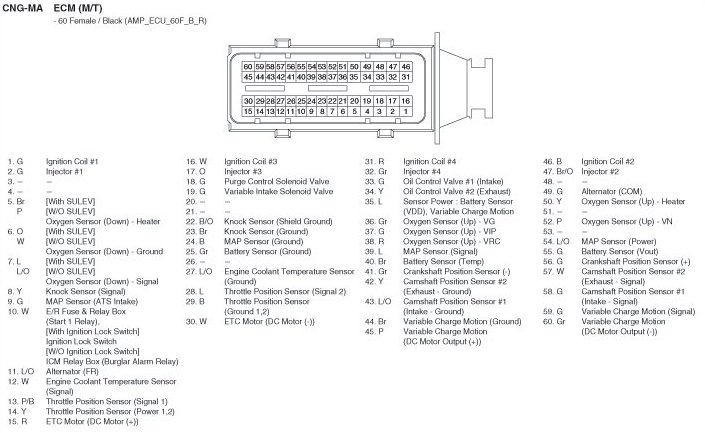

CNG-MA ECM (M/T):

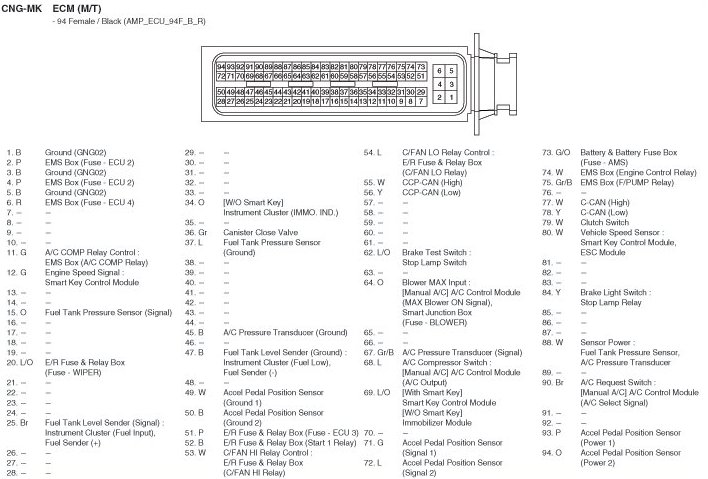

CNG-MK ECM (M/T):
