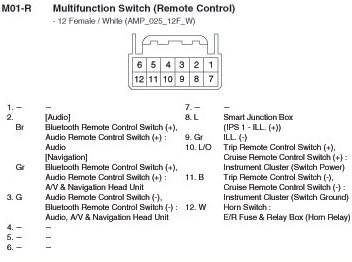

M01-R Multifunction Switch (Remote Control)
M01-R Multifunction Switch (Remote Control)
M01-R Multifunction Switch (Remote Control):
