Home >> Hyundai >> 2012 >> Elantra L4-1.8L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Body Control Module

Body Control Module

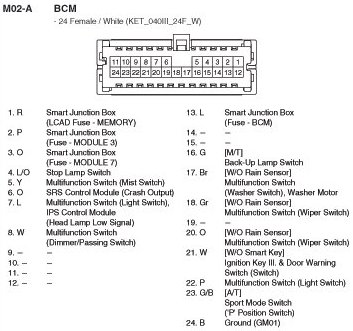

M02-A BCM:

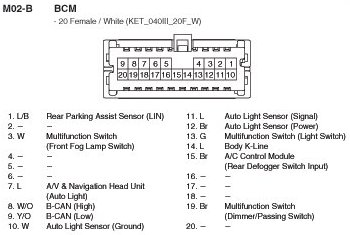

M02-B BCM:

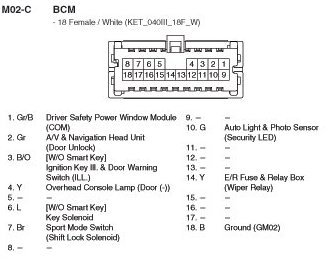

M02-C BCM:
