Hyundai
>>
2012
>>
Elantra L4-1.8L
>>
Repair and Diagnosis
>>
Body and Frame
>>
Body Control Systems
>>
Body Control Module
>>
Service and Repair
>>

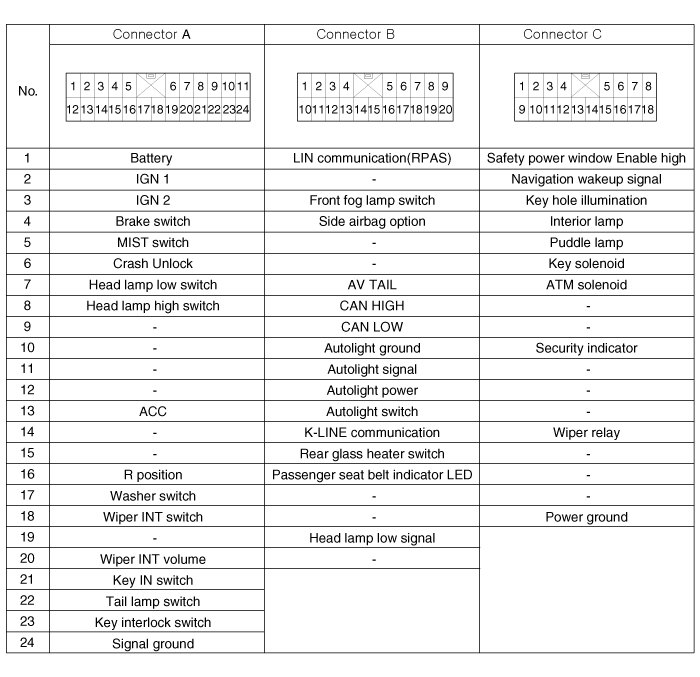

Components And Components Location
Components And Components Location

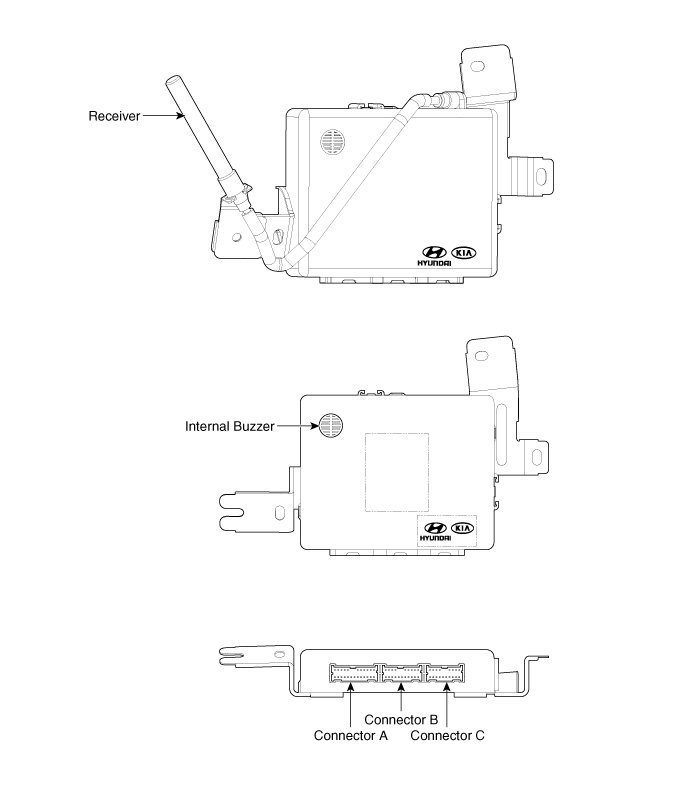

Components
** Internal Buzzer : Rear parking assist system buzzer

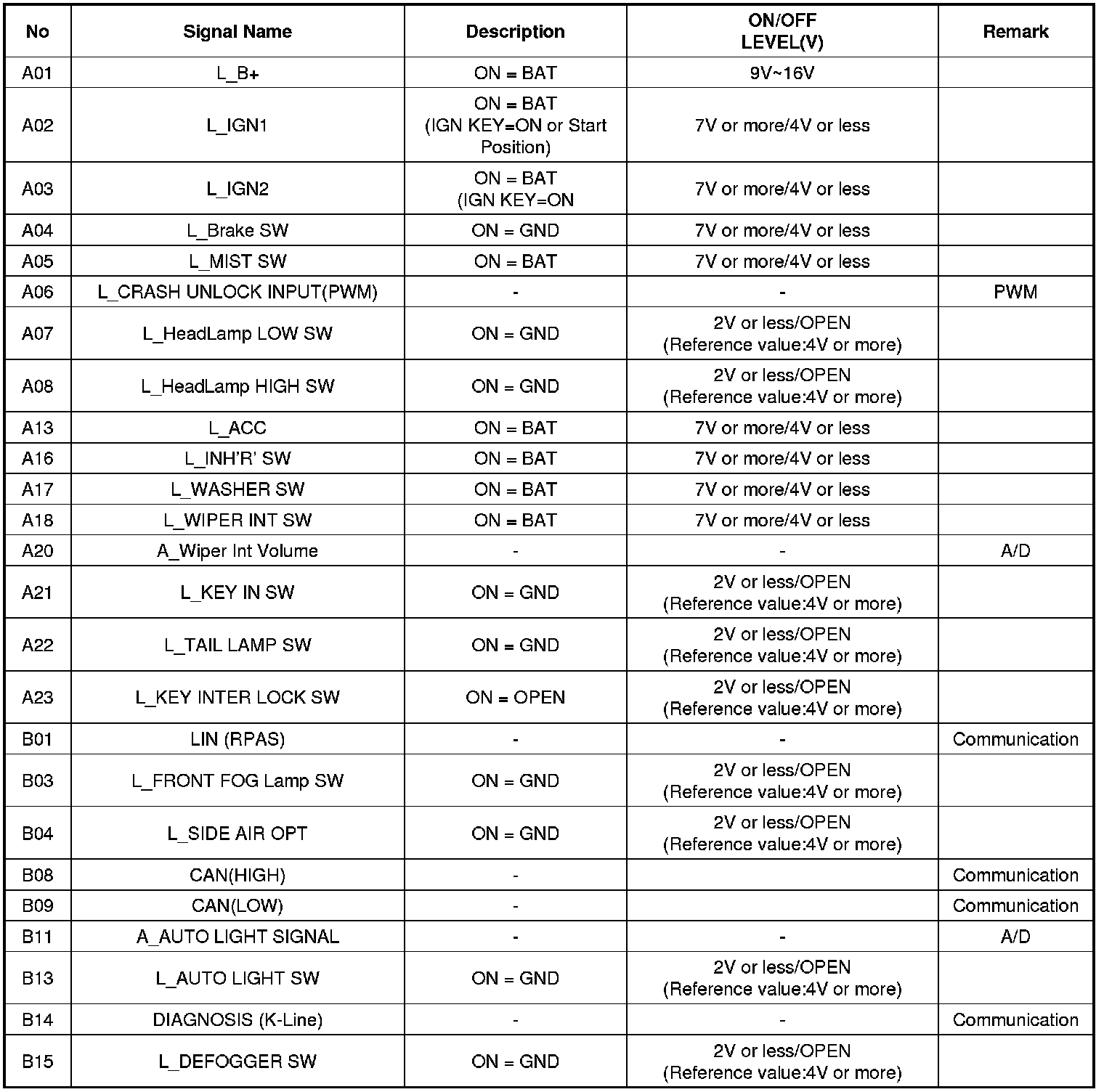

BCM Input Signal Specification
