Fuse: Locations

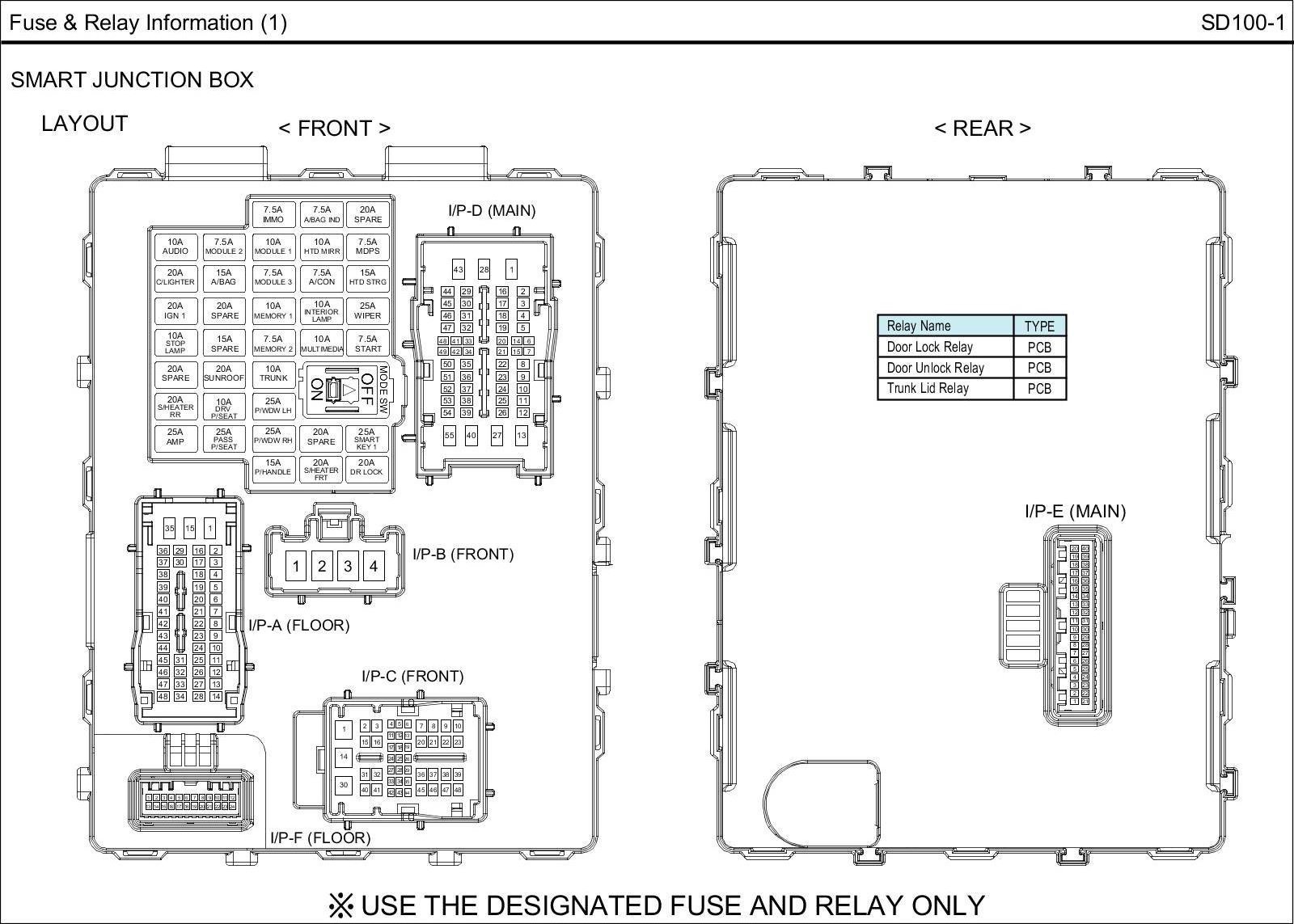

Smart Junction Box View:

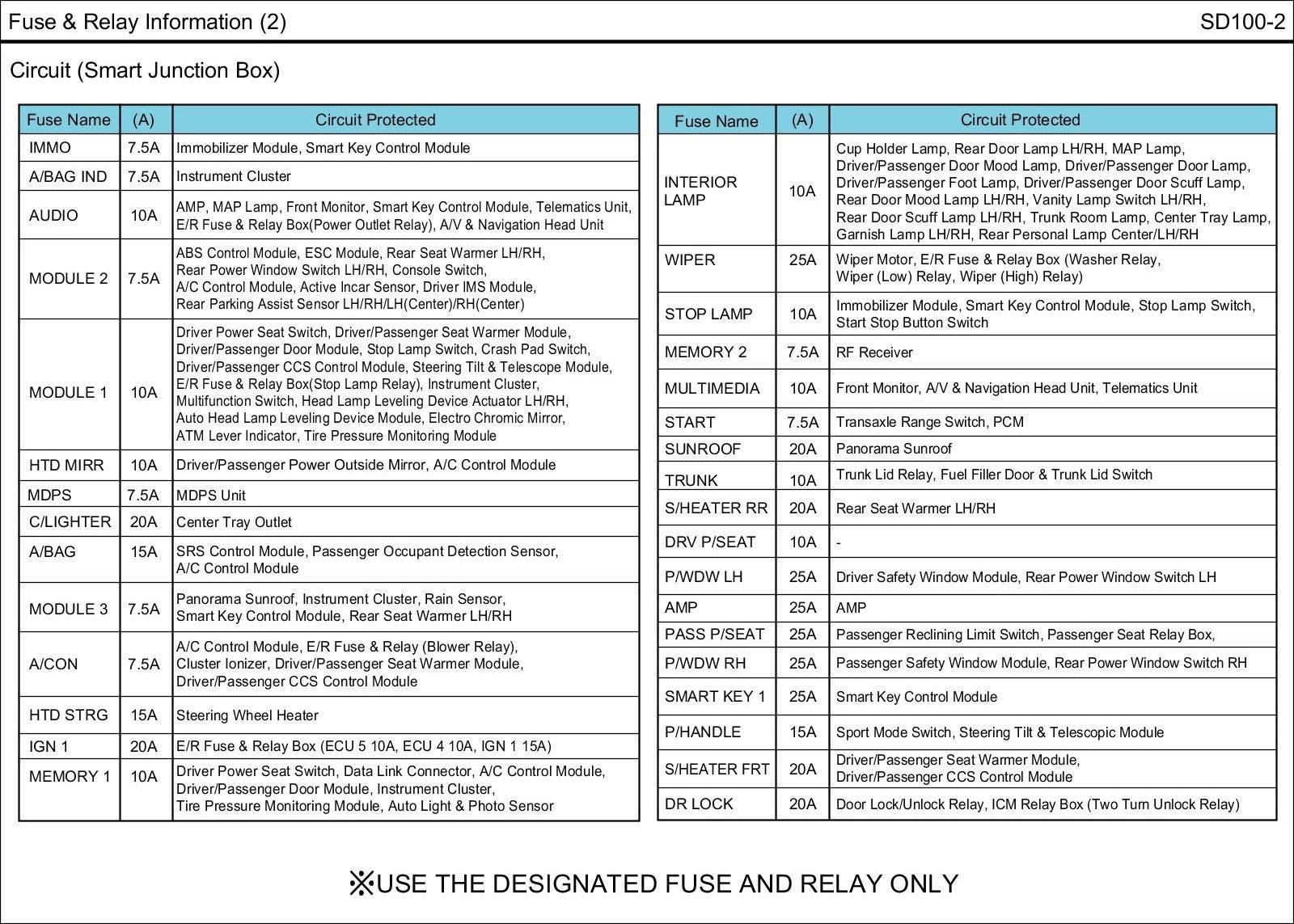

Smart Junction Box Circuit Details:

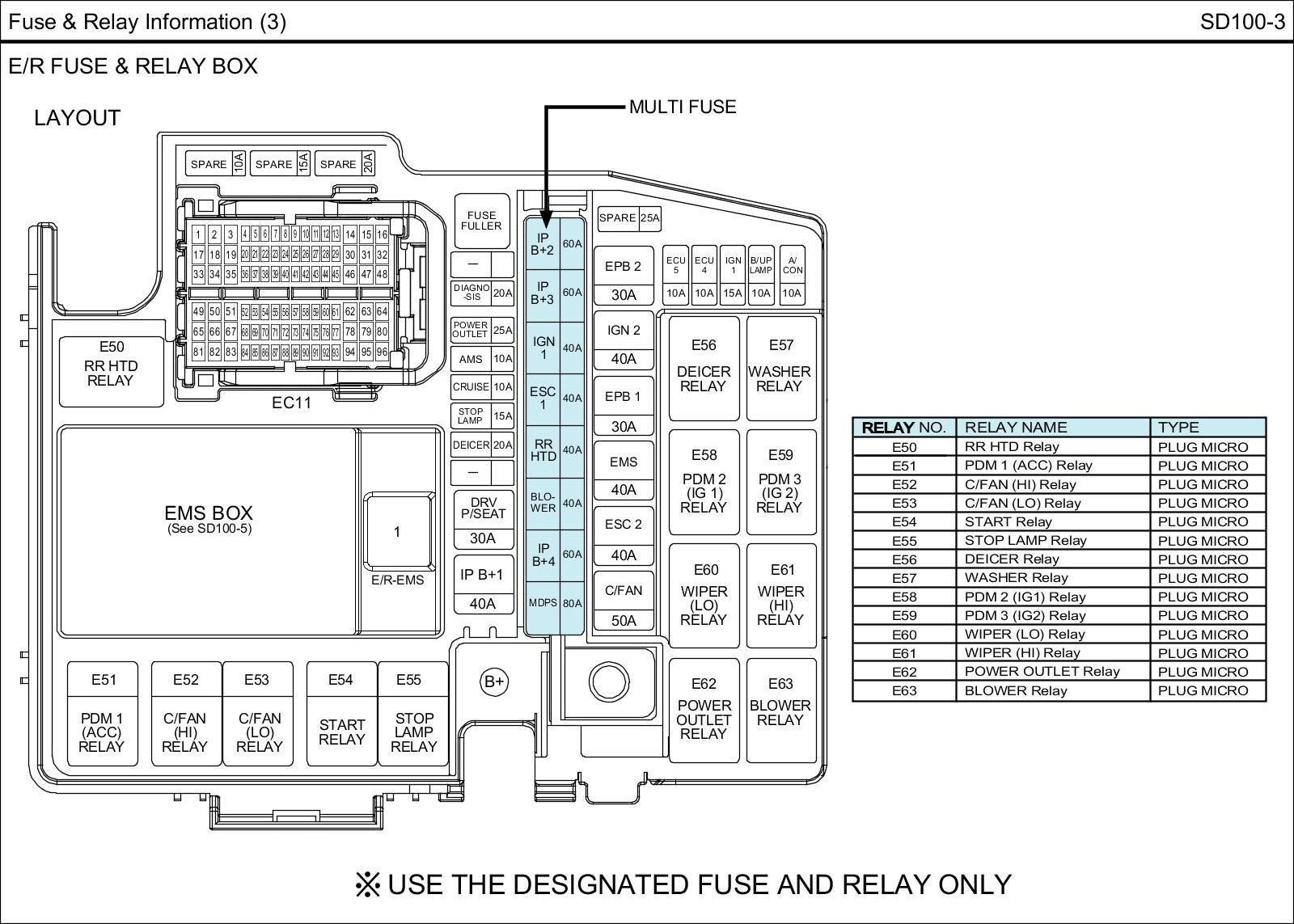

E/R Fuse & Relay Box View:

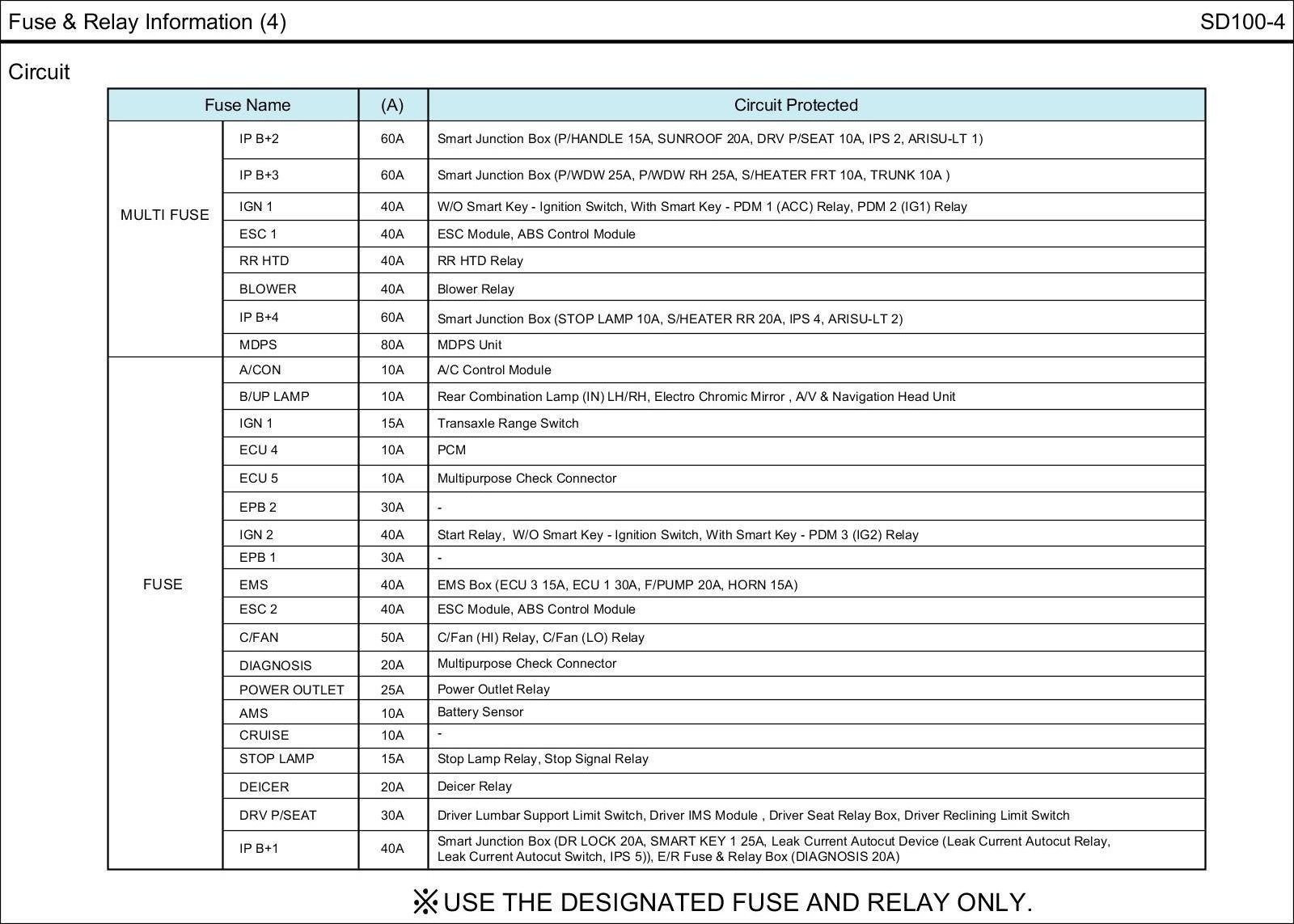

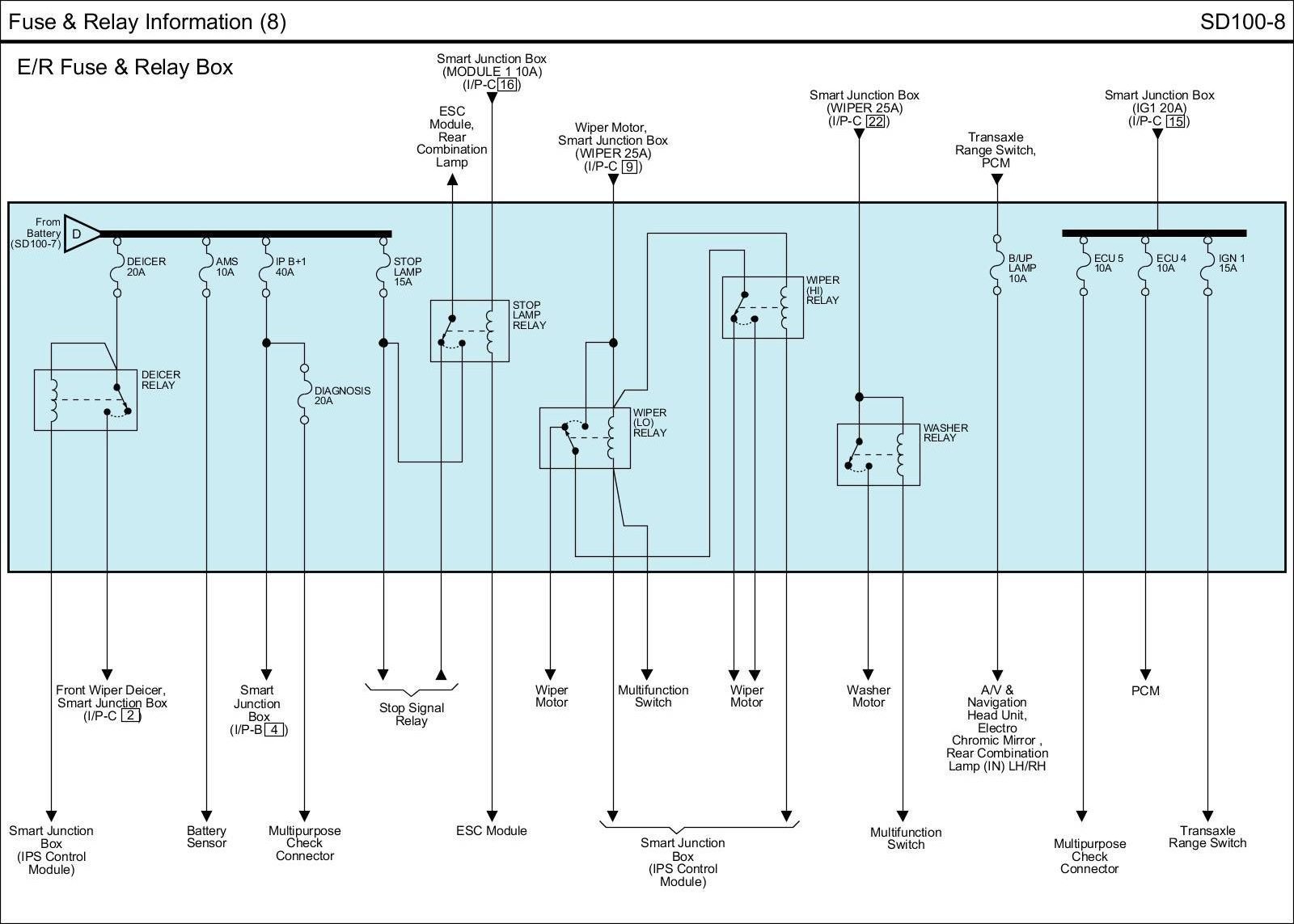

E/R Fuse & Relay Box Circuit Details:

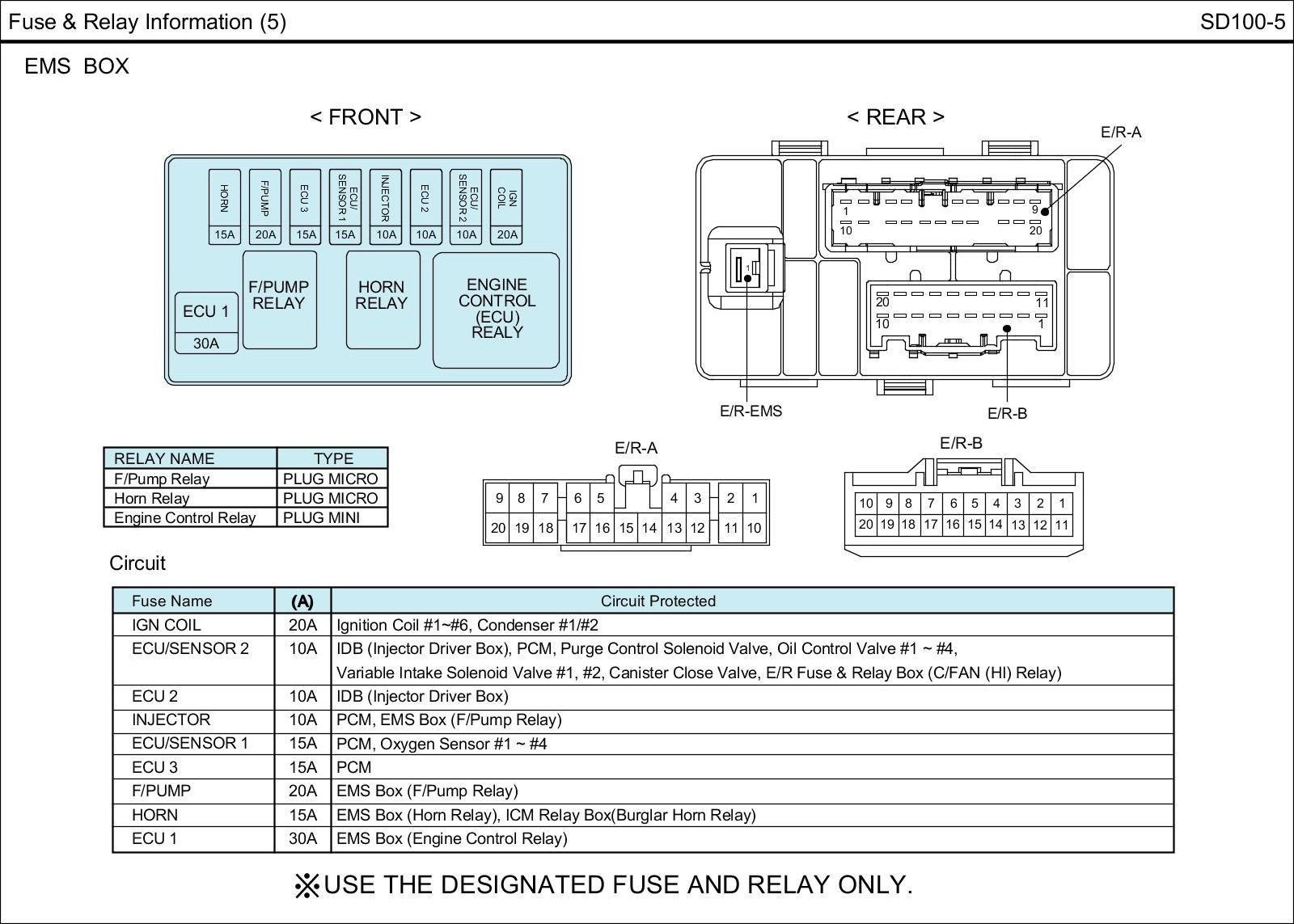

EMS Box:

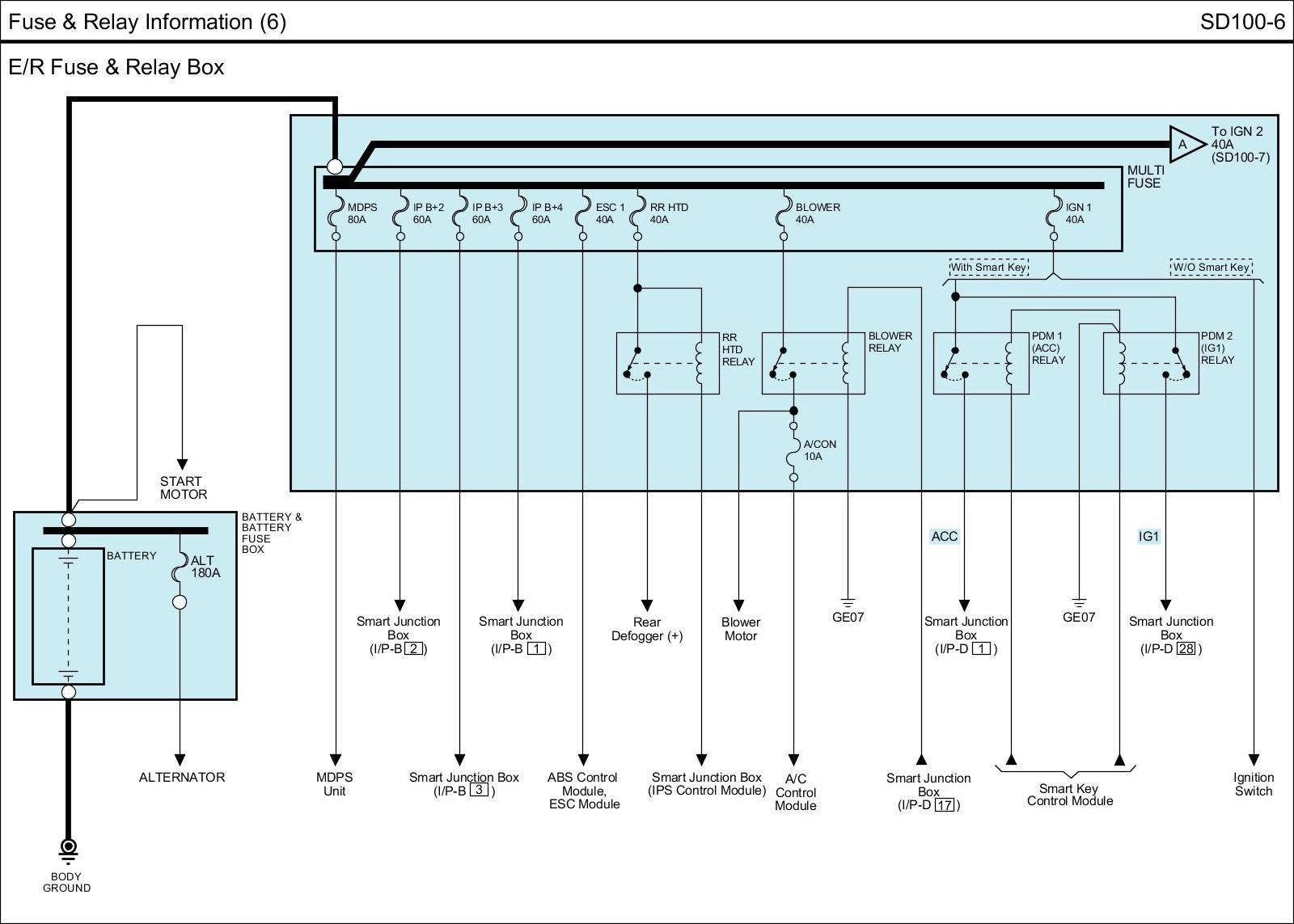

E/R Fuse & Relay Box View:

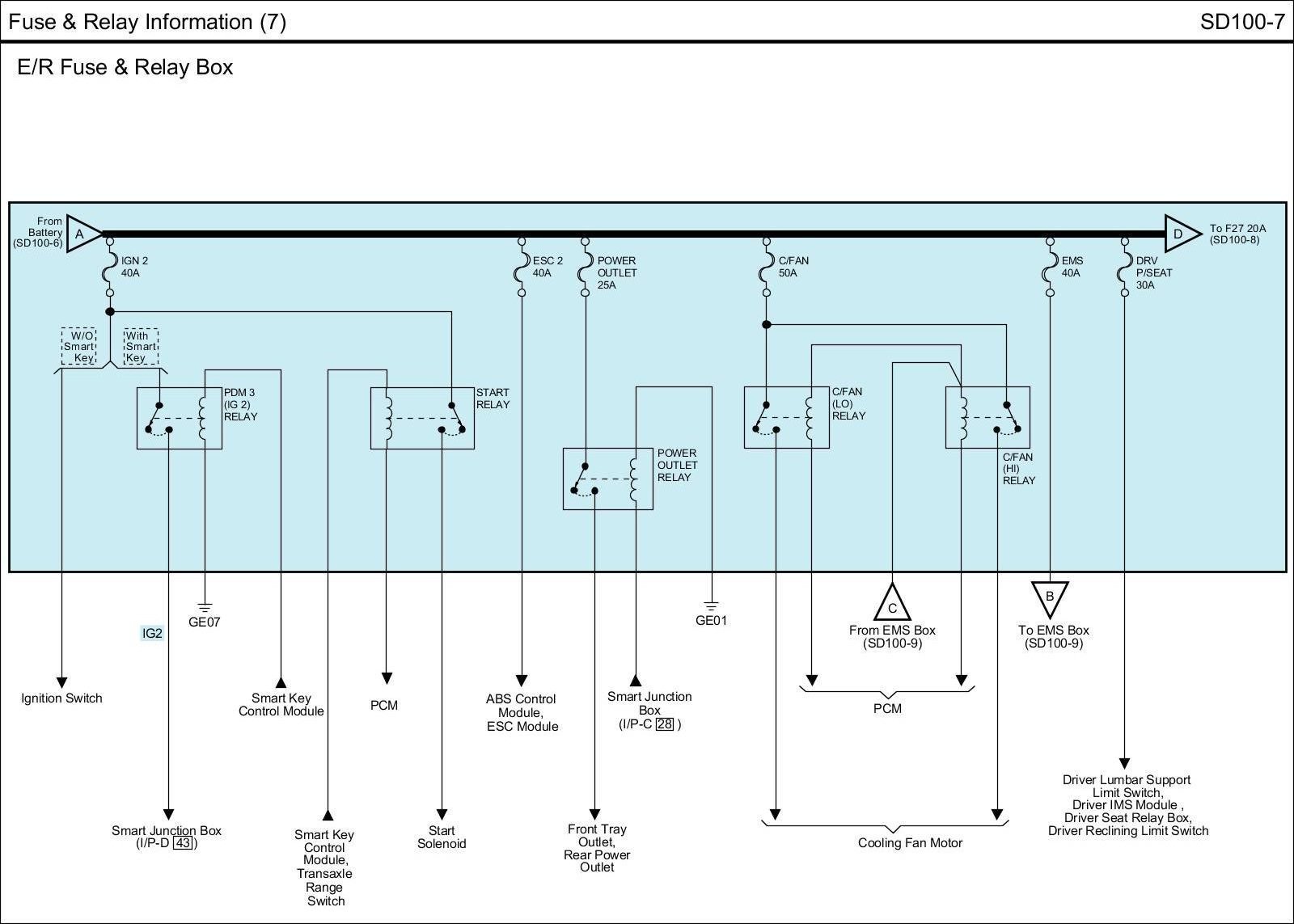

E/R Fuse & Relay Box View:

E/R Fuse & Relay Box View:

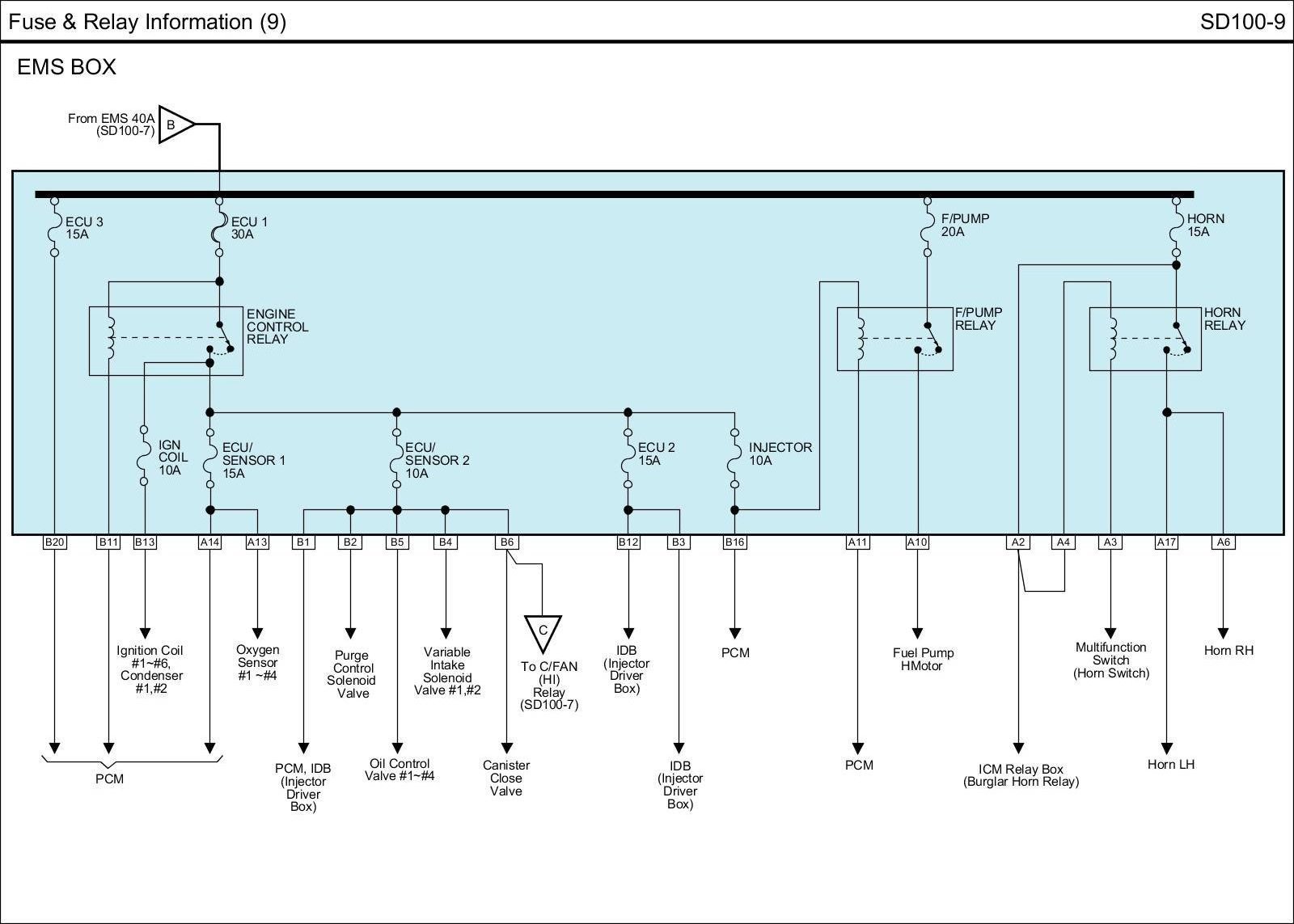

EMS Box View:

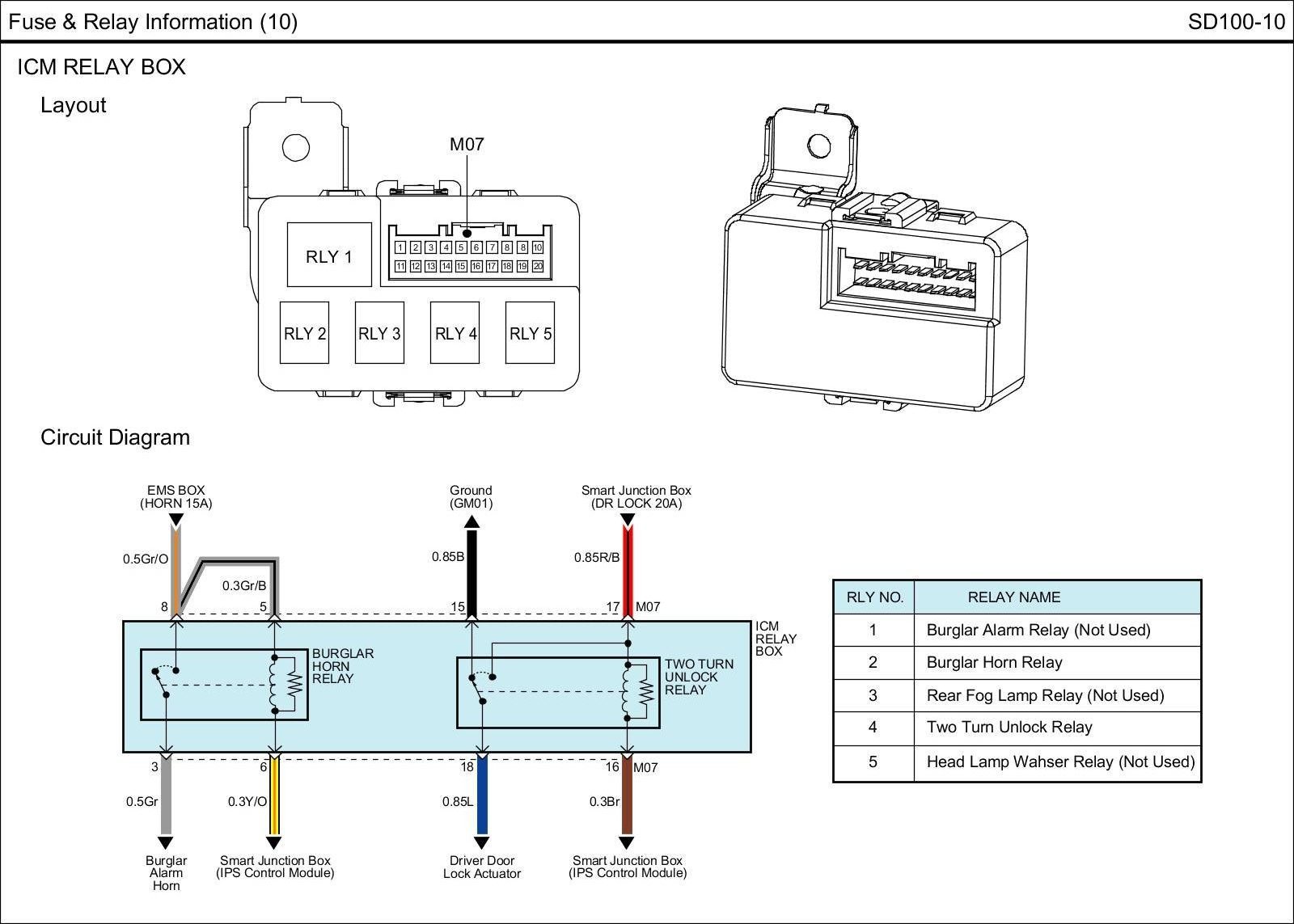

ICM Relay Box View:
