Control Module, A/T





TCM connector and terminal function





TCM Terminal Function

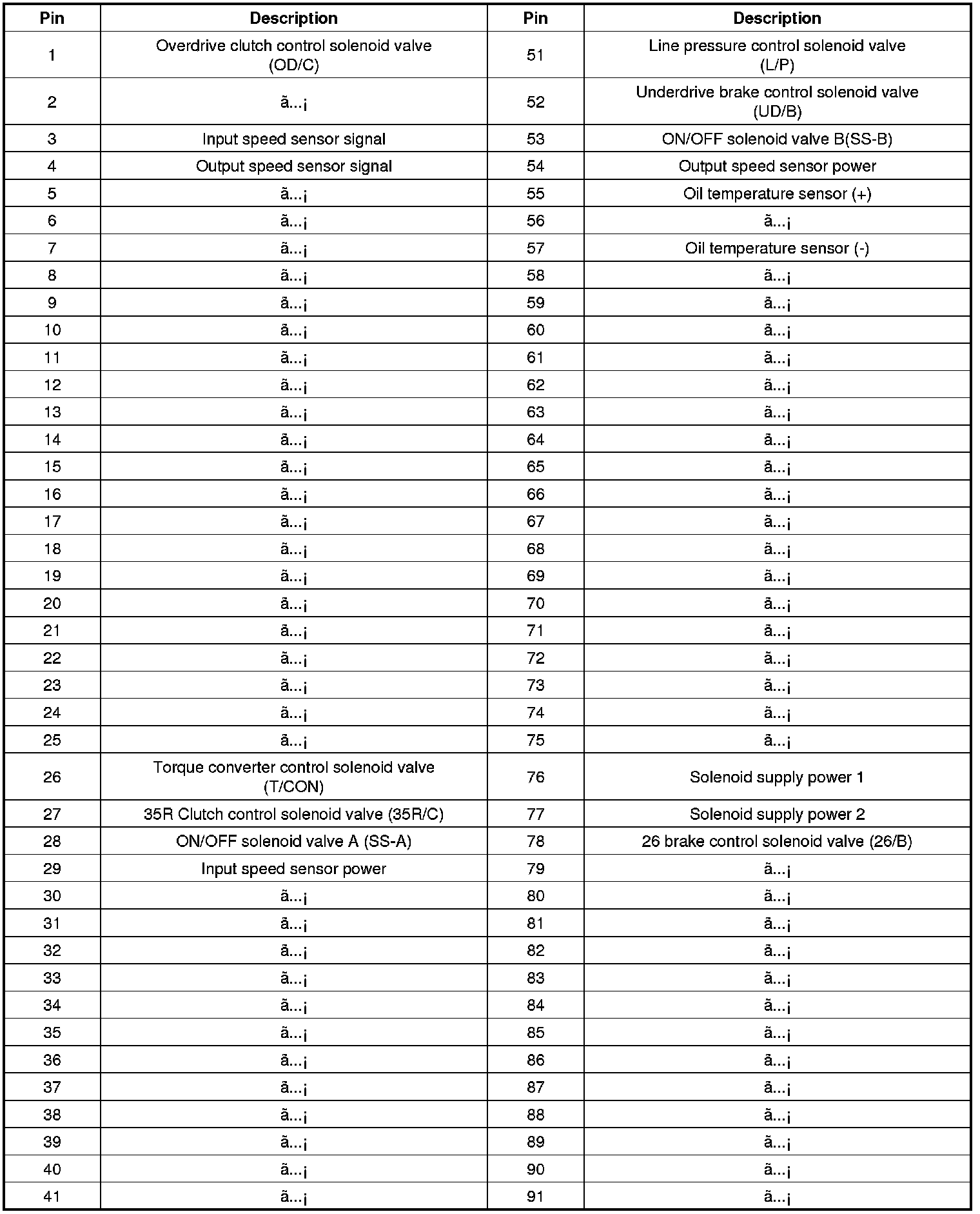

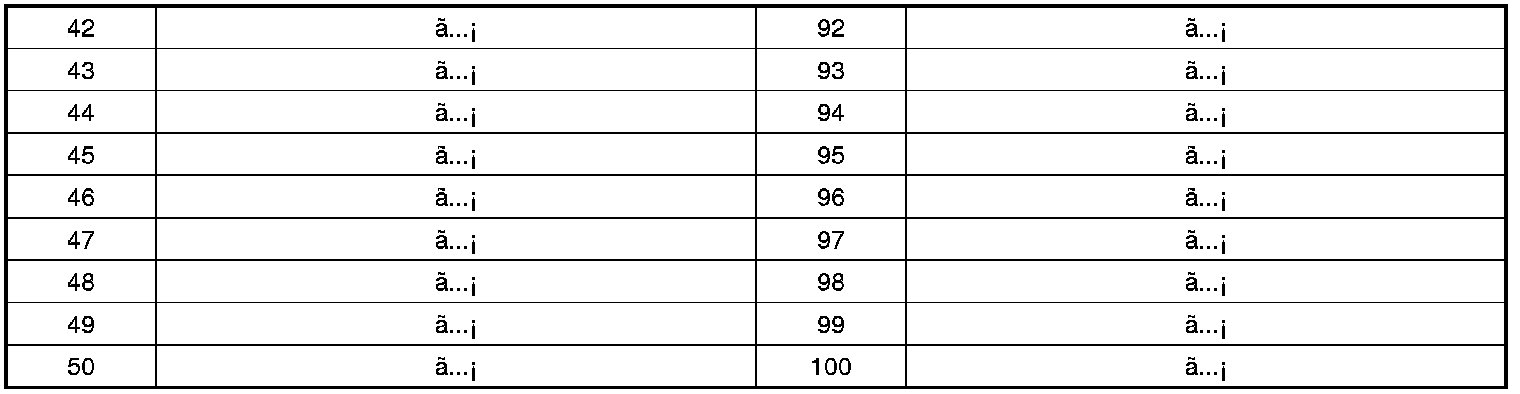

Connector [ELG-A]

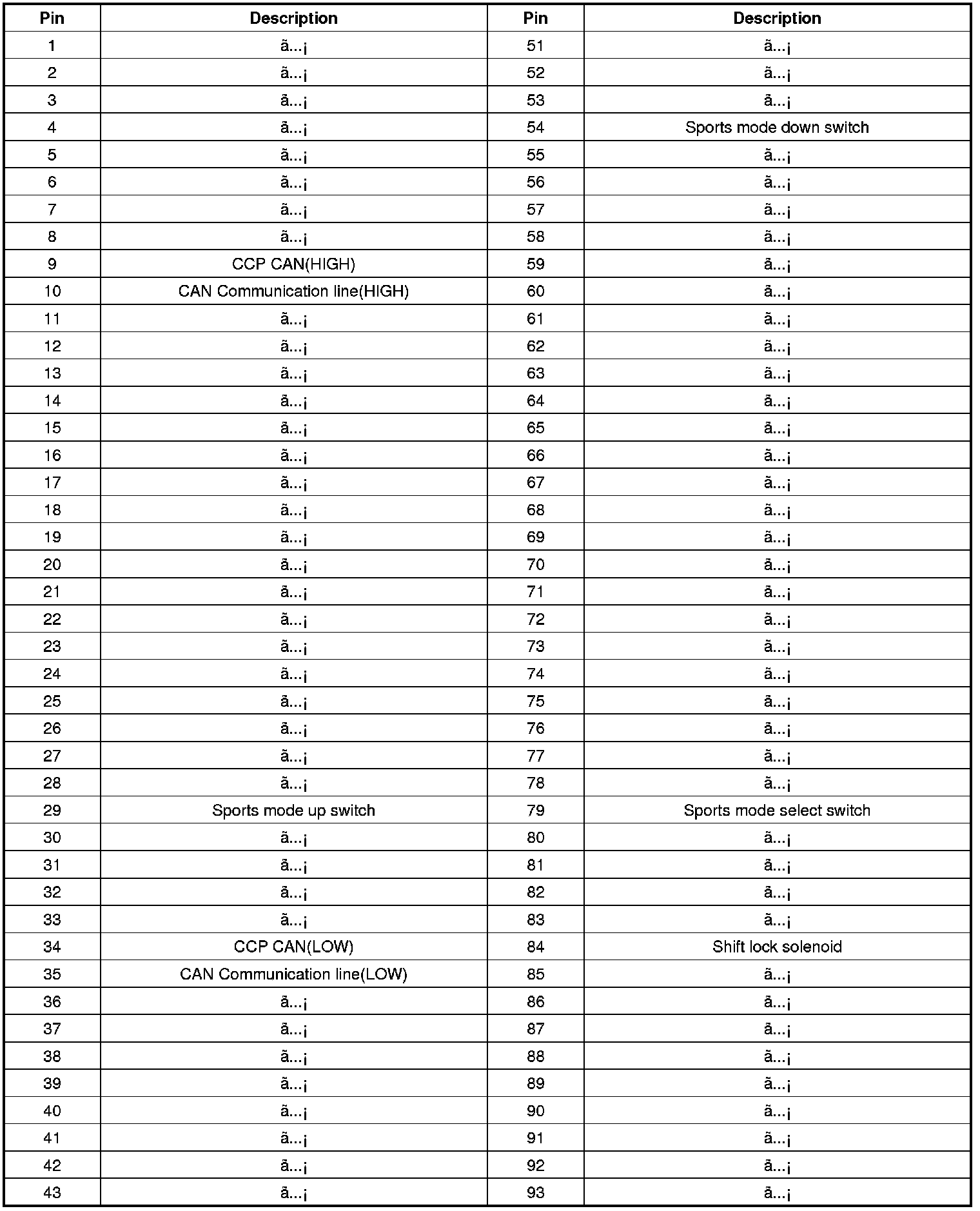

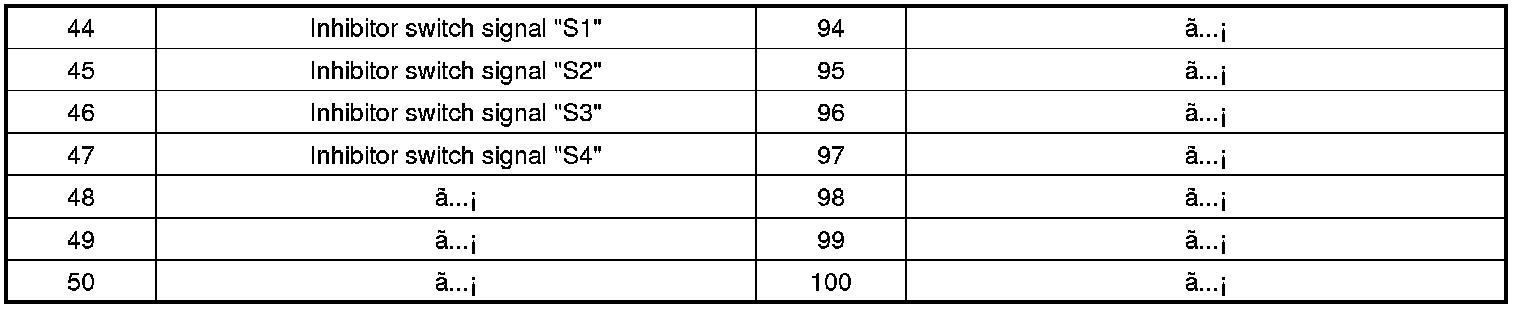

Connector [CLG-B]










TCM Terminal input/ output signal

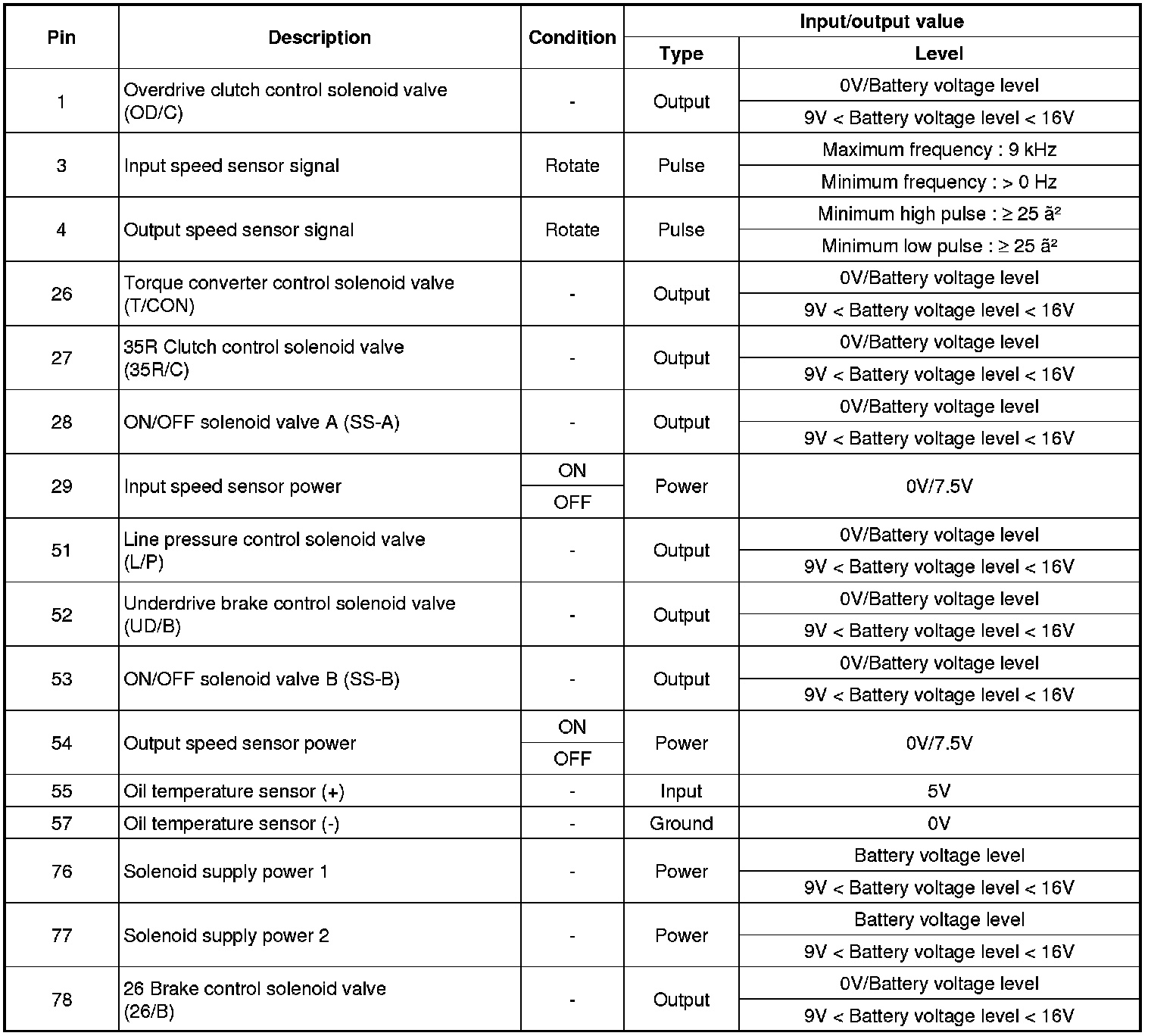

Connector[ELG-A]

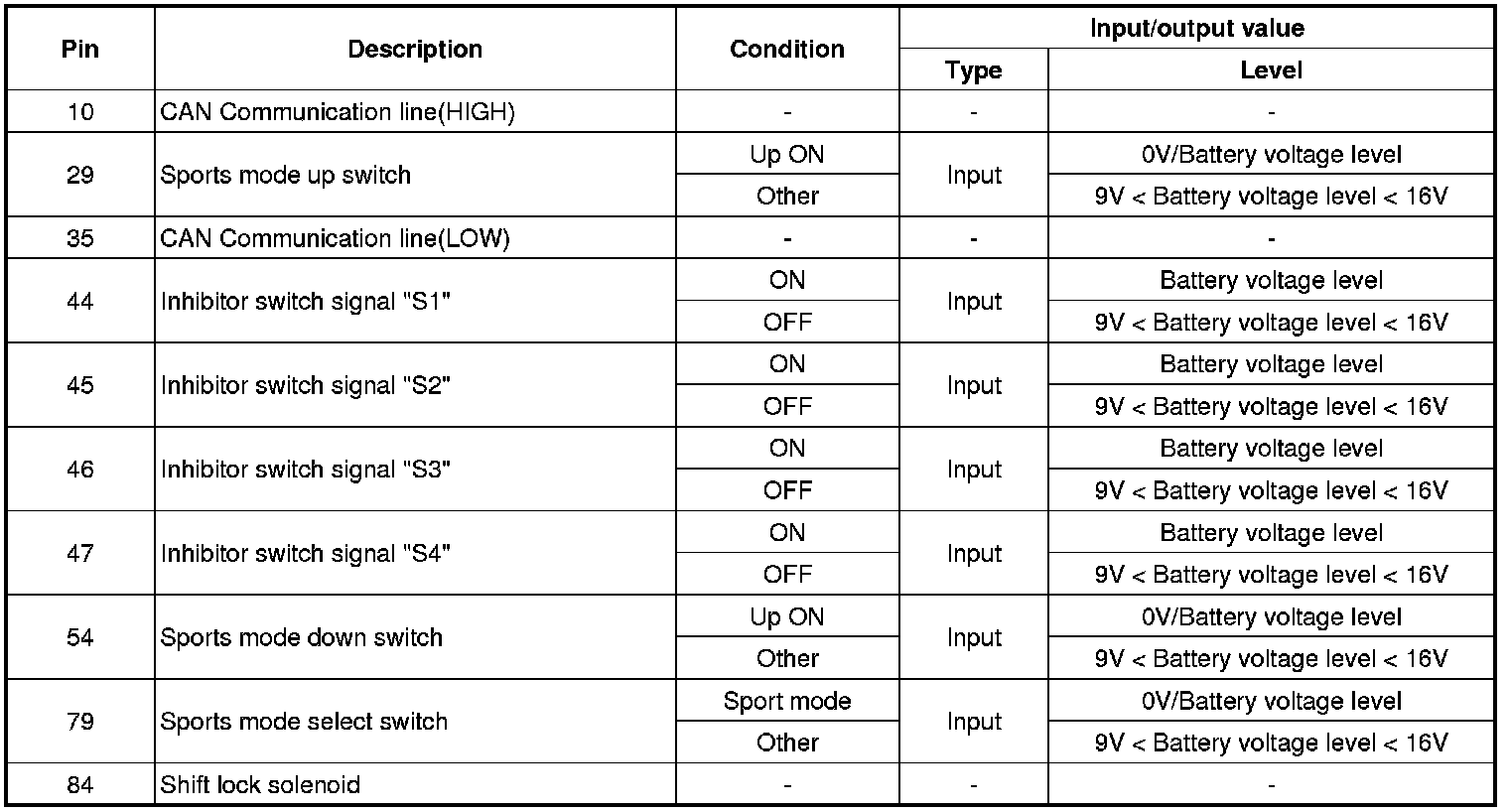

Connector [CLG-B]






Circuit Diagram
