Home >> Hyundai >> 2012 >> Azera V6-3.3L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Steering Control Module

Steering Control Module

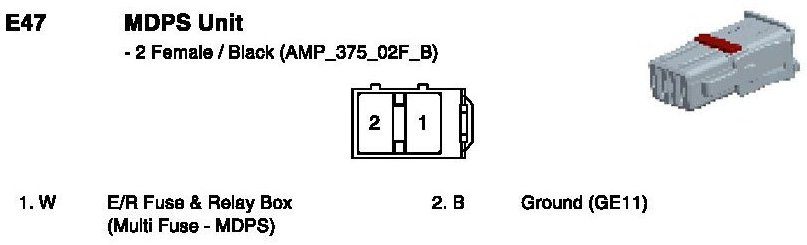

E47 MDPS Unit:

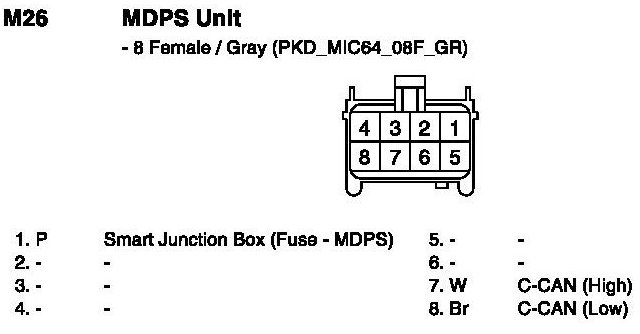

M26 MDPS Unit:
