Home >> Hyundai >> 2012 >> Azera V6-3.3L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Seat Temperature Control Module >> Passenger CCS Control Module

Passenger CCS Control Module

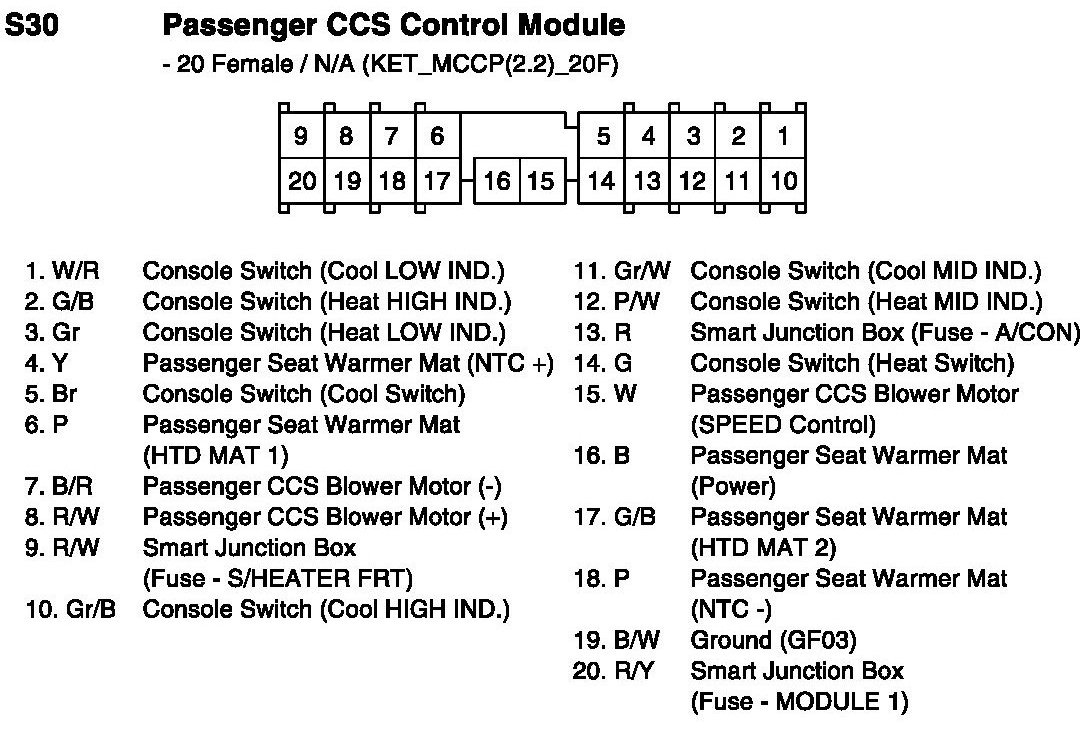

S30 Passenger CCS Control Module:
