Home >> Hyundai >> 2012 >> Azera V6-3.3L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Seat Temperature Control Module >> Driver CCS Control Module

Driver CCS Control Module

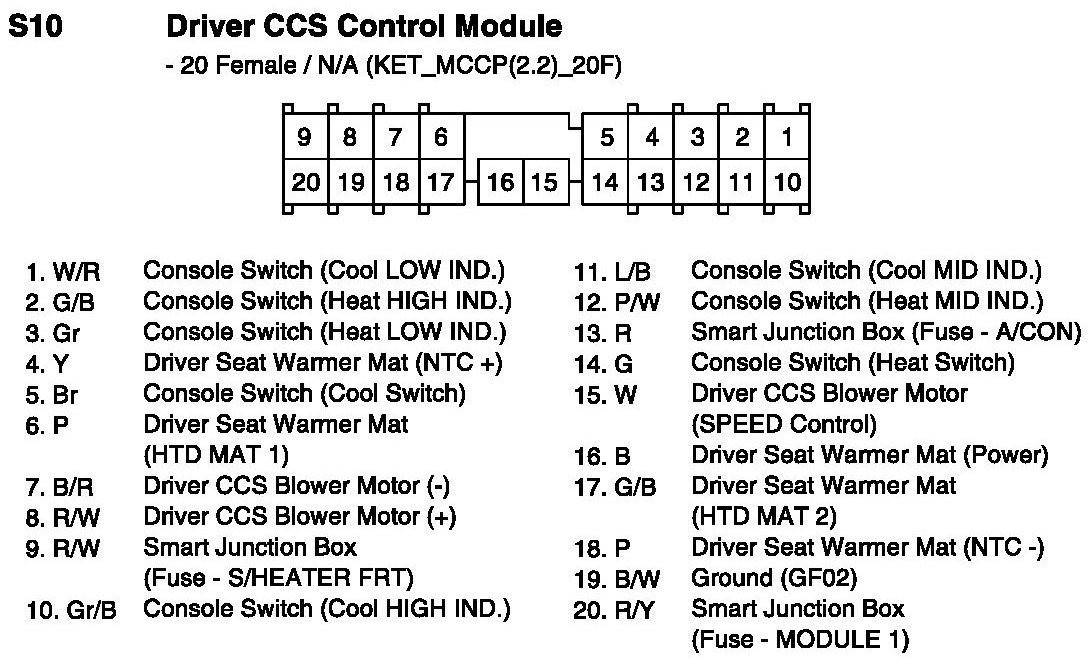

S10 Driver CCS Control Module:
