Home >> Hyundai >> 2012 >> Azera V6-3.3L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Distribution Relay >> I/P-F Smart Junction Box

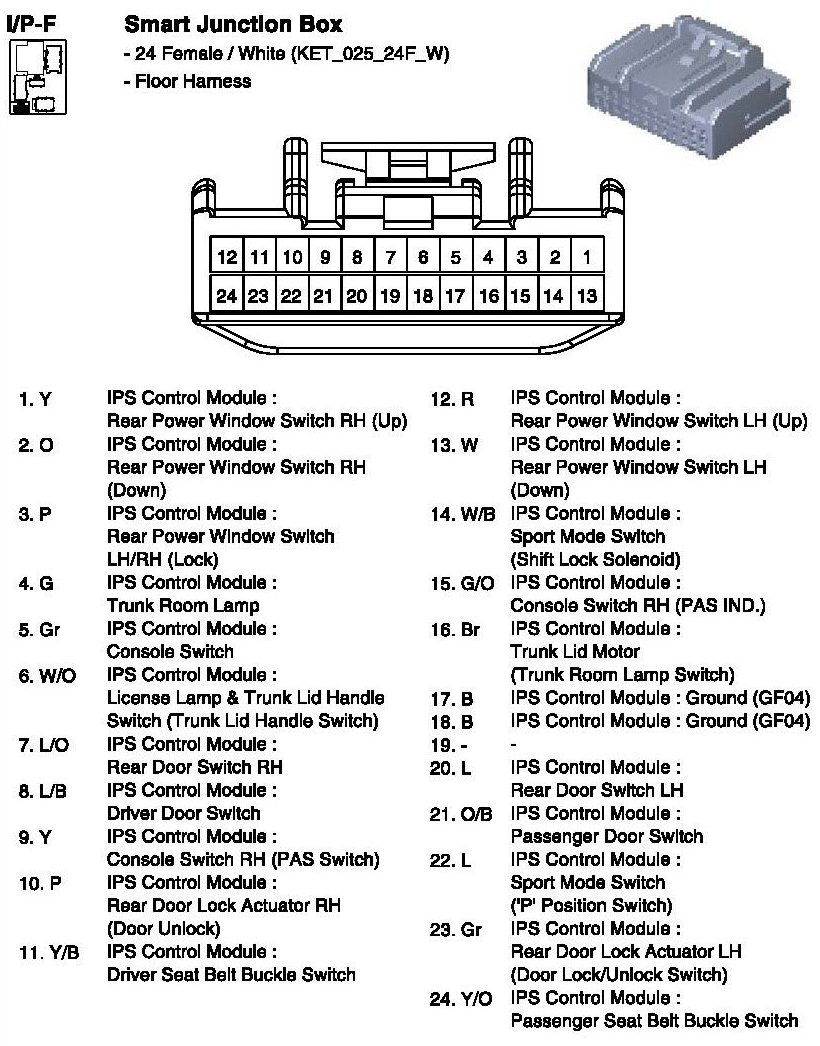

I/P-F Smart Junction Box

I/P-F Smart Junction Box:
