Oil Temperature Sensor/Switch, Engine
Oil Temperature Sensor/Switch, Engine

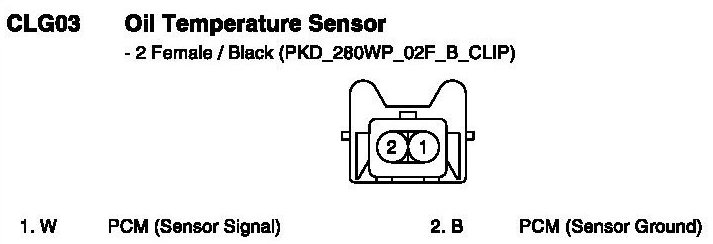

CLG03 Oil Temperature Sensor:
