Hyundai
>>
2012
>>
Azera V6-3.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
Multiple Junction Connector

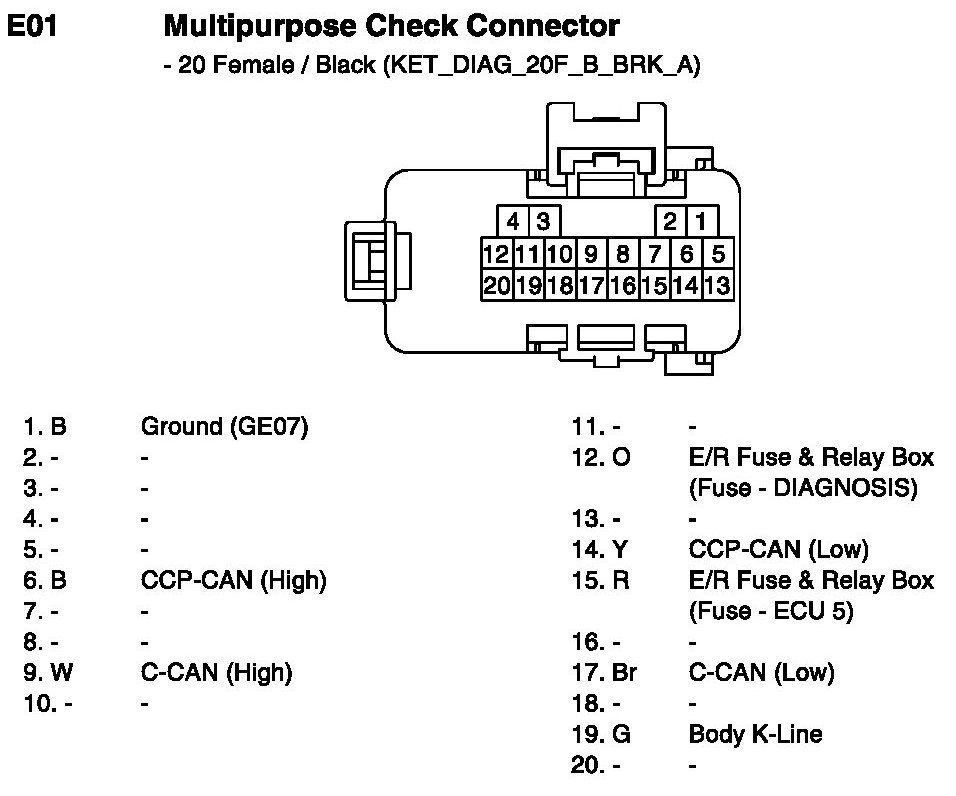

E01 Multipurpose Check Connector:
