Home >> Hyundai >> 2012 >> Azera V6-3.3L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Module HVAC >> A/C Control Module (Manual)

A/C Control Module (Manual)

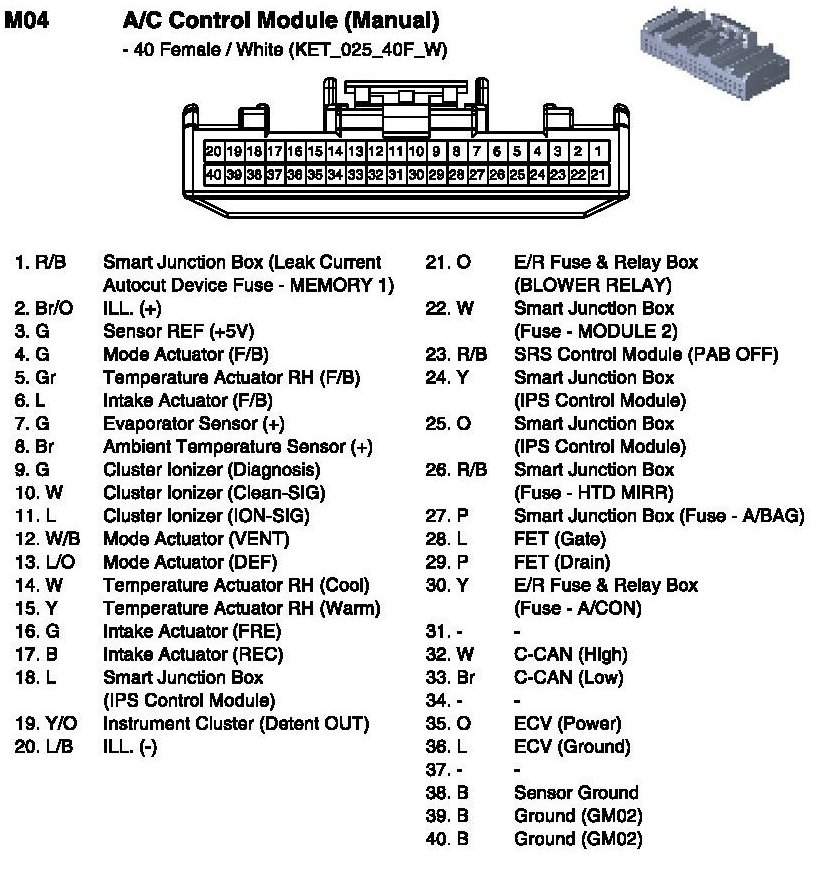

M04 A/C Control Module (Manual):
