Alarm Module, (Vehicle Antitheft)
>>
Immobilizer Module (W/O Smart Key)
Immobilizer Module (W/O Smart Key)

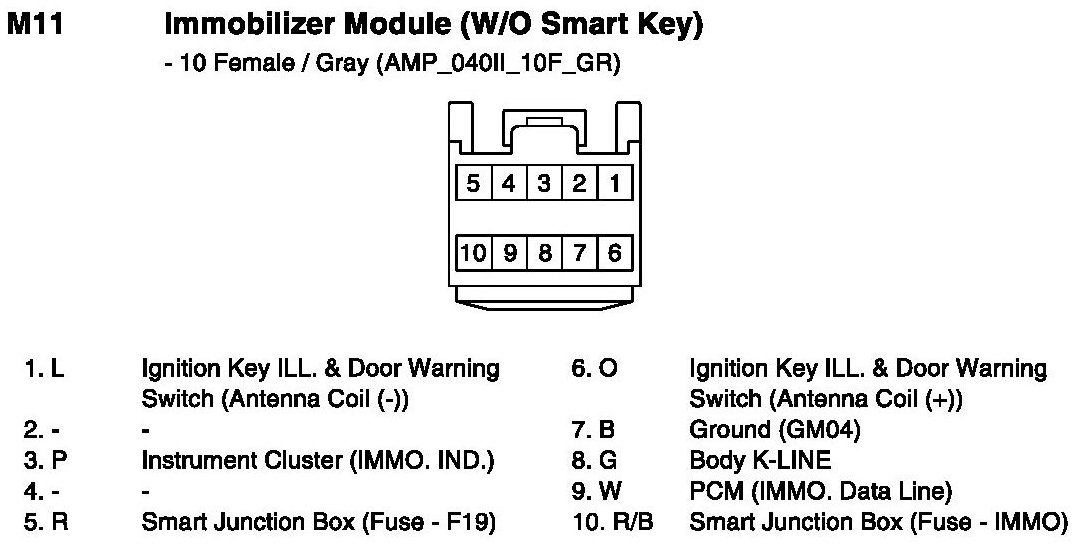

M11 Immobilizer Module (W/O Smart Key):
