Alarm Module, (Vehicle Antitheft)
>>
Driver IMS Module
Driver IMS Module

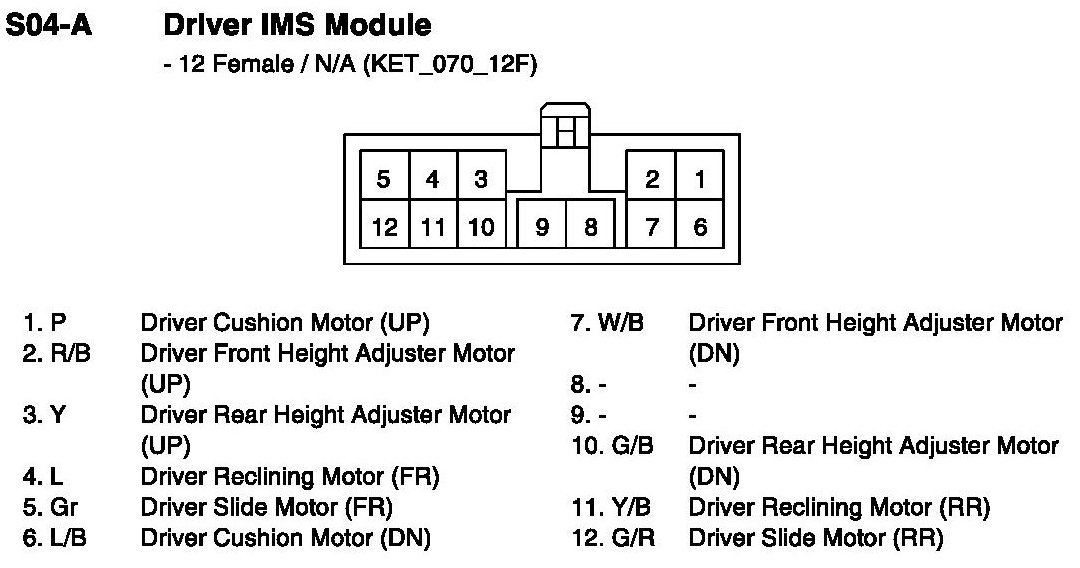

S04-A Driver IMS Module:

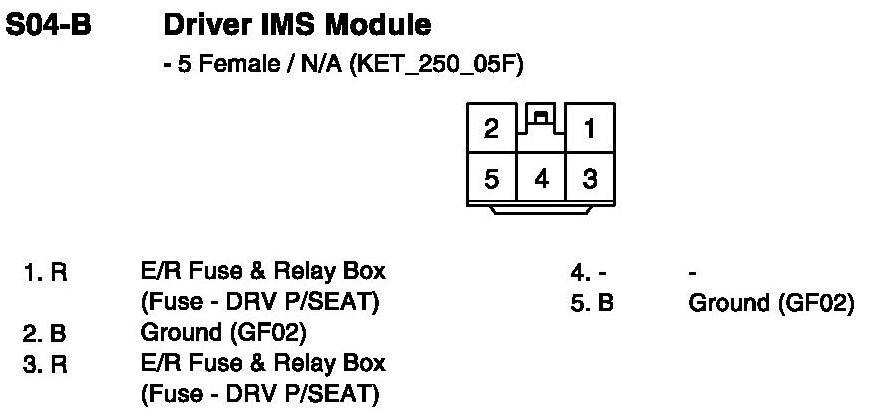

S04-B Driver IMS Module:

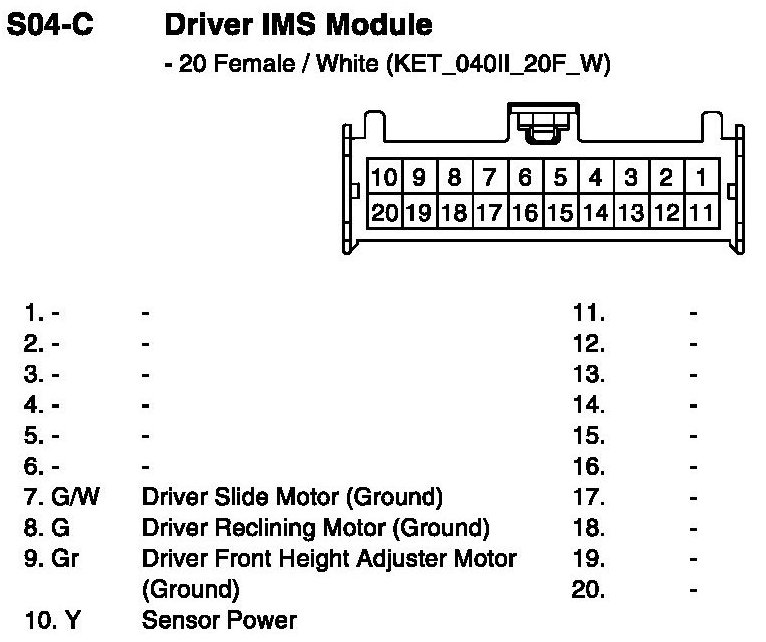

S04-C Driver IMS Module:

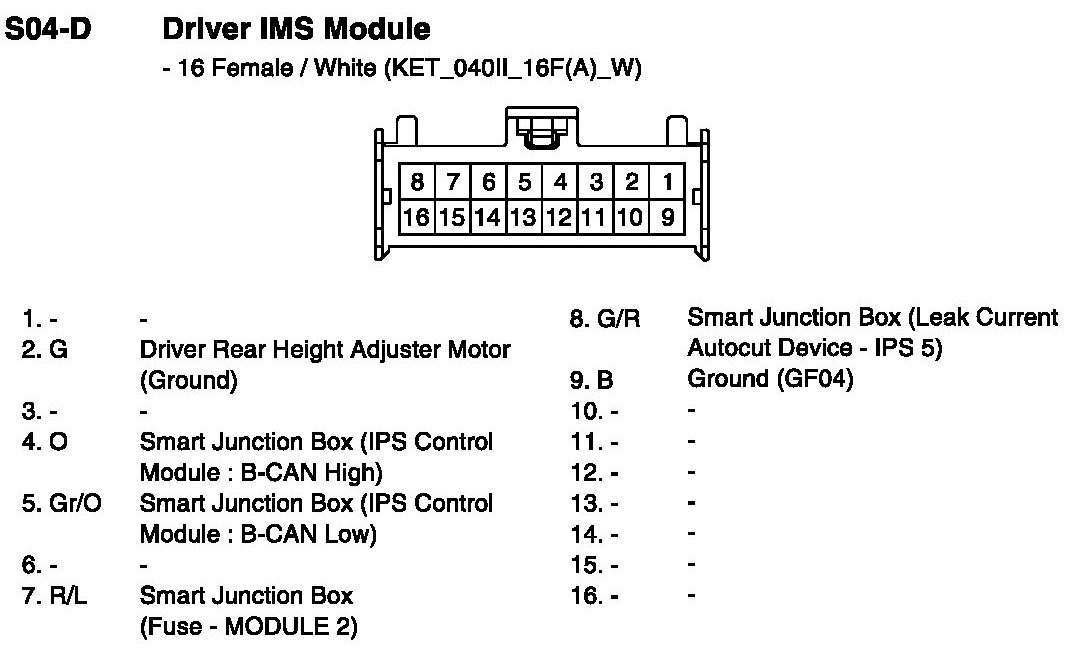

S04-D Driver IMS Module:
