Home >> Hyundai >> 2012 >> Azera V6-3.3L >> Repair and Diagnosis >> Body and Frame >> Locks >> Keyless Entry >> Keyless Entry Receiver >> Diagrams >> Passenger Smart Key Outside Handle

Passenger Smart Key Outside Handle

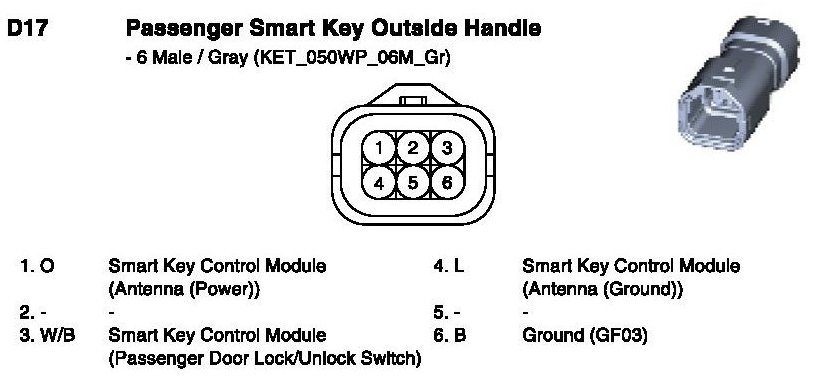

D17 Passenger Smart Key Outside Handle:
