Home >> Hyundai >> 2012 >> Accent L4-1.6L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Main Relay (Computer/Fuel System) >> Diagrams

Main Relay (Computer/Fuel System): Diagrams

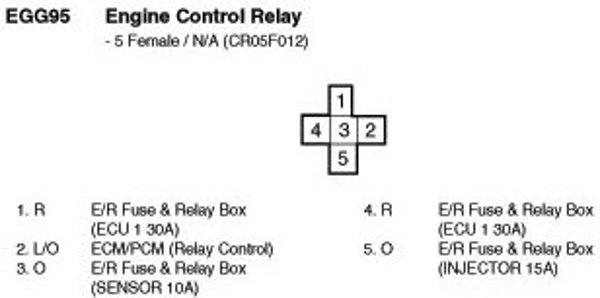

EGG95 Engine Control Relay:
