Home >> Hyundai >> 2012 >> Accent L4-1.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Module HVAC >> A/C Control Module (Manual A/C)

A/C Control Module (Manual A/C)

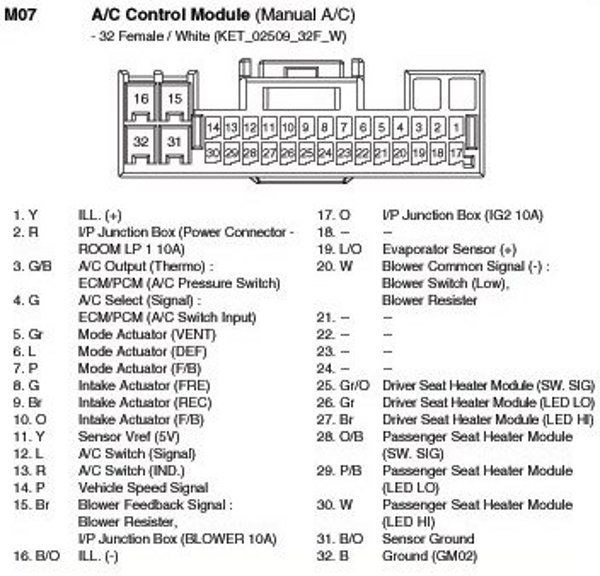

M07 A/C Control Module (Manual A/C):
