A/C Control Module (Auto A/C)

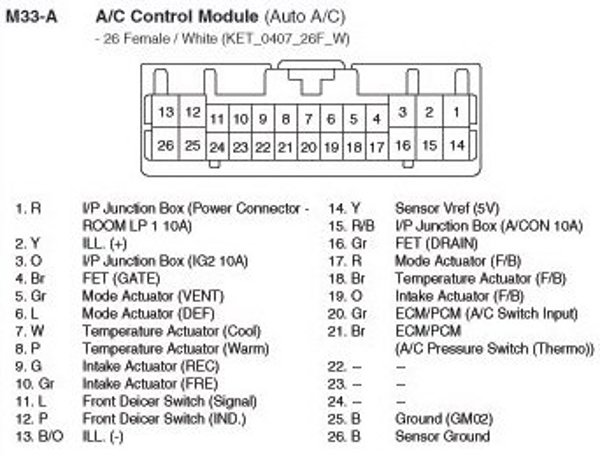

M33-A A/C Control Module (Auto A/C):

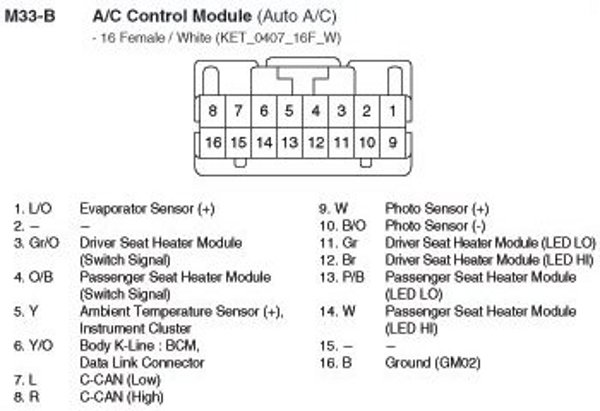

M33-B A/C Control Module (Auto A/C):
