Home >> Hyundai >> 2012 >> Accent L4-1.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Body Control Module

Body Control Module

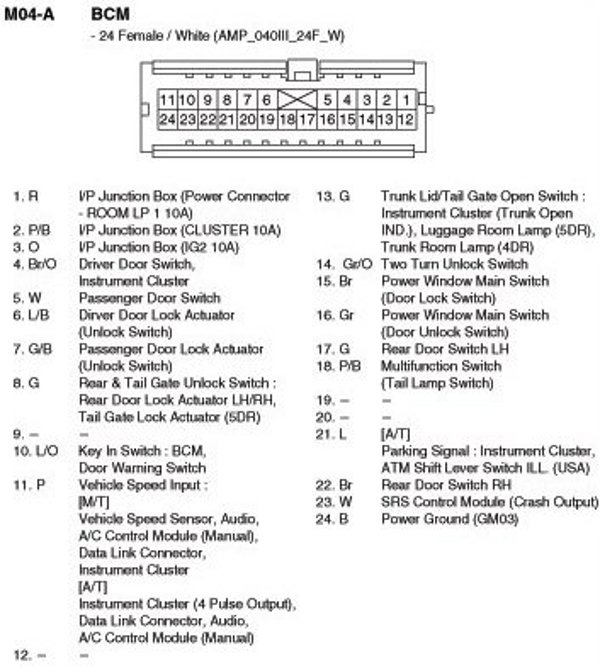

M04-A BCM:

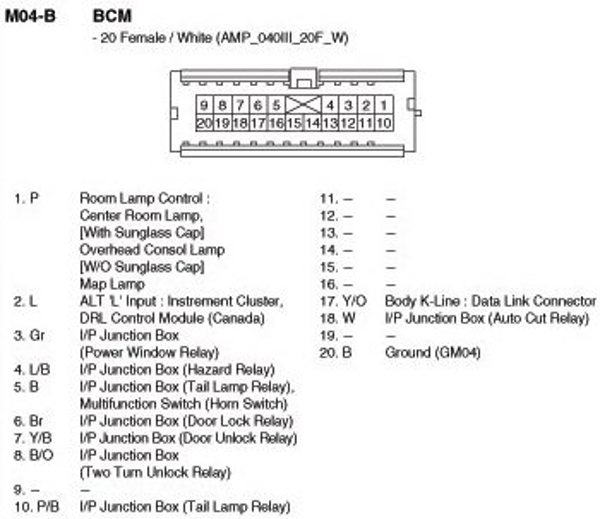

M04-B BCM:
