Tucson FWD L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Distribution Module
Power Distribution Module

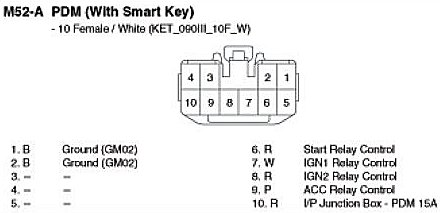

M52-A PDM (With Smart Key):

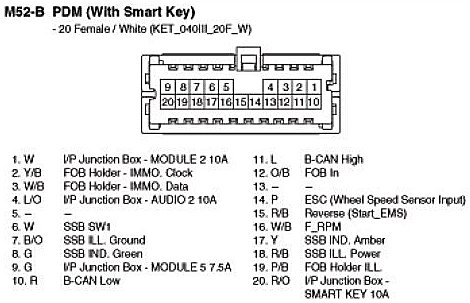

M52-B PDM (With Smart Key):
