Navigation Module
Navigation Module

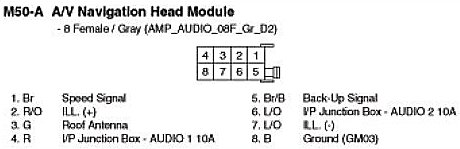

M50-A A/V Navigation Head Module:

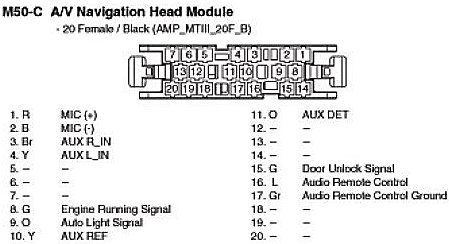

M50-C A/V Navigation Head Module:

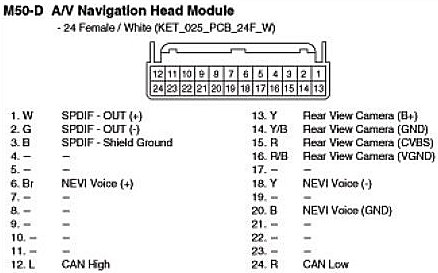

M50-D A/V Navigation Head Module:
