Home >> Hyundai >> 2011 >> Tucson FWD L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Keyless Entry Module

Keyless Entry Module

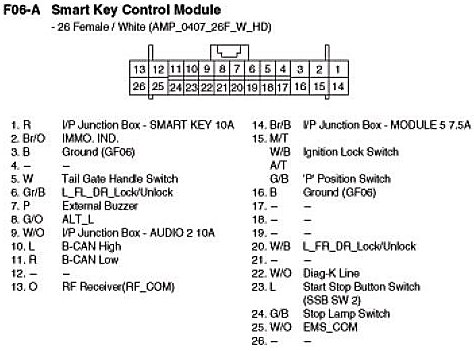

F06-A Smart Key Control Module:

F06-B Smart Key Control Module:
