Control Module HVAC

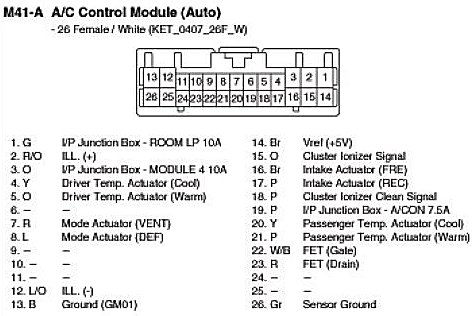

M41-A A/C Control Module (Auto):

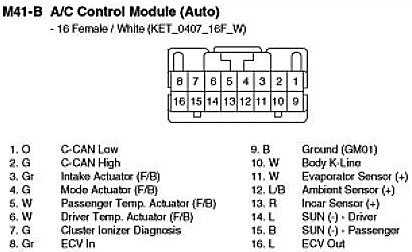

M41-B A/C Control Module (Auto):

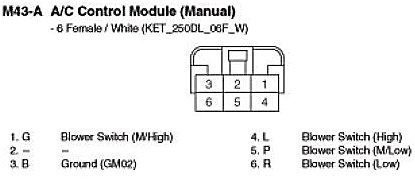

M43-A A/C Control Module (Manual):

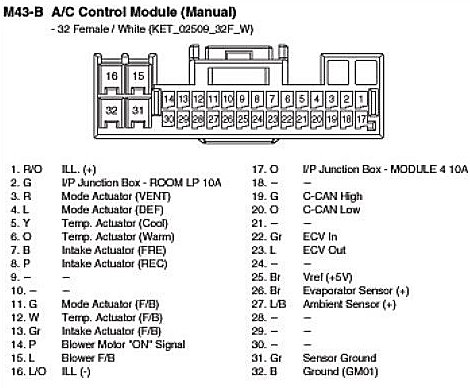

M43-B A/C Control Module (Manual):
