Home >> Hyundai >> 2011 >> Tucson FWD L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Body Control Module

Body Control Module

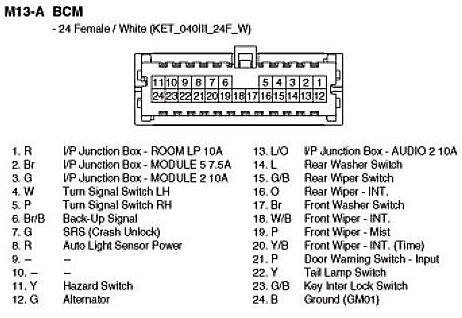

M13-A BCM:

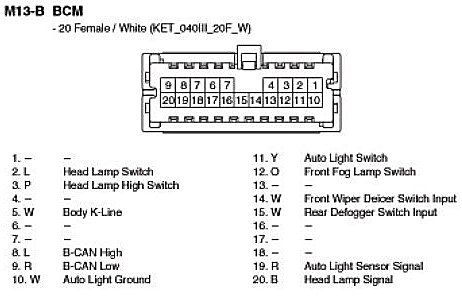

M13-B BCM:

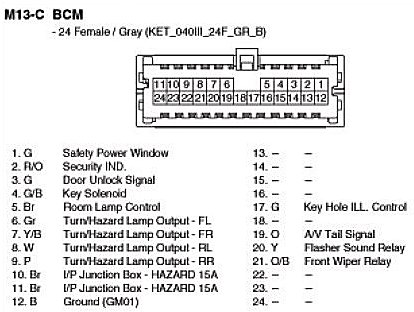

M13-C BCM:
