Ignition Relay: Locations
Fuel & Relay Information
E/R Fuse & Relay Box View:
E/R Fuse & Relay Box Circuit Details:
E/R Fuse & Relay Box View:

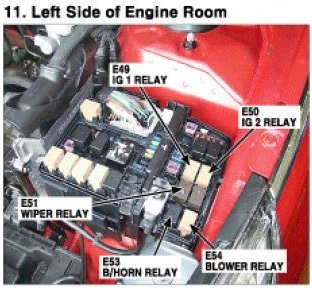

Photo 11
