Hyundai
>>
2011
>>
Sonata L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Navigation Module
Navigation Module

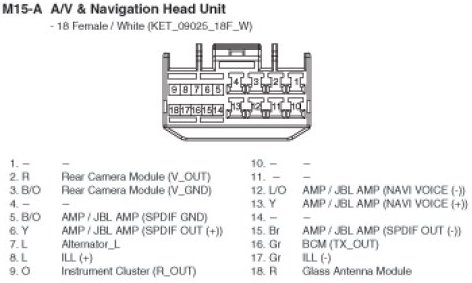

M15-A A/V & Navigation Head Unit:

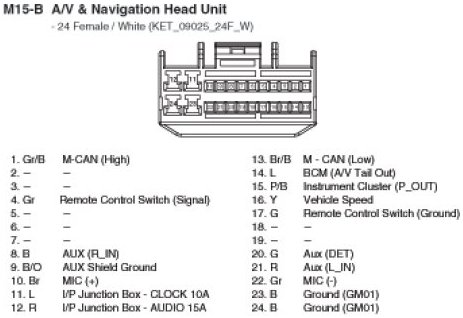

M15-B A/V & Navigation Head Unit:
M15-G A/V & Navigation Head Unit (GND):
