Home >> Hyundai >> 2011 >> Sonata L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Keyless Entry Module

Keyless Entry Module

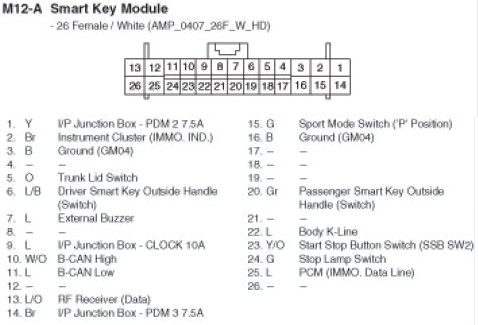

M12-A Smart Key Module:

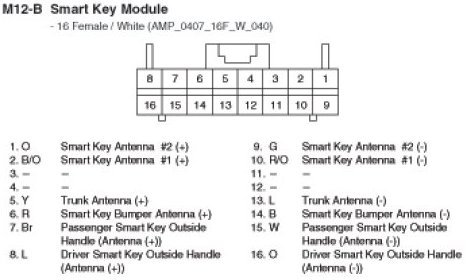

M12-B Smart Key Module:
