Home >> Hyundai >> 2011 >> Sonata L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Body Control Module

Body Control Module

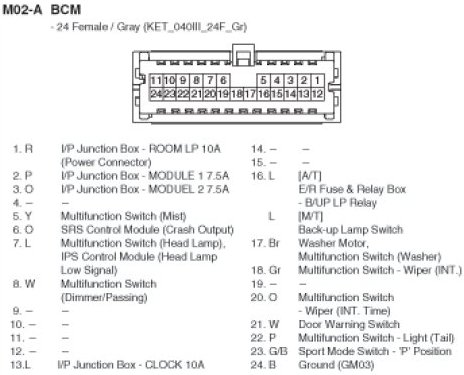

M02-A BCM:

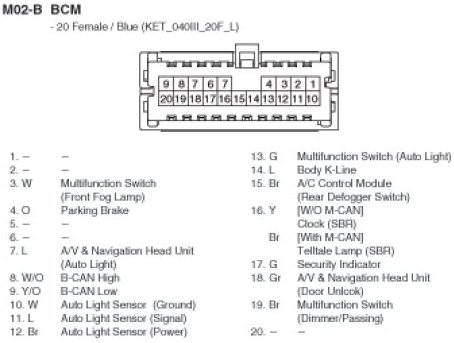

M02-B BCM:

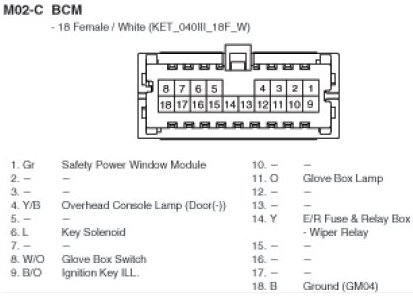

M02-C BCM:

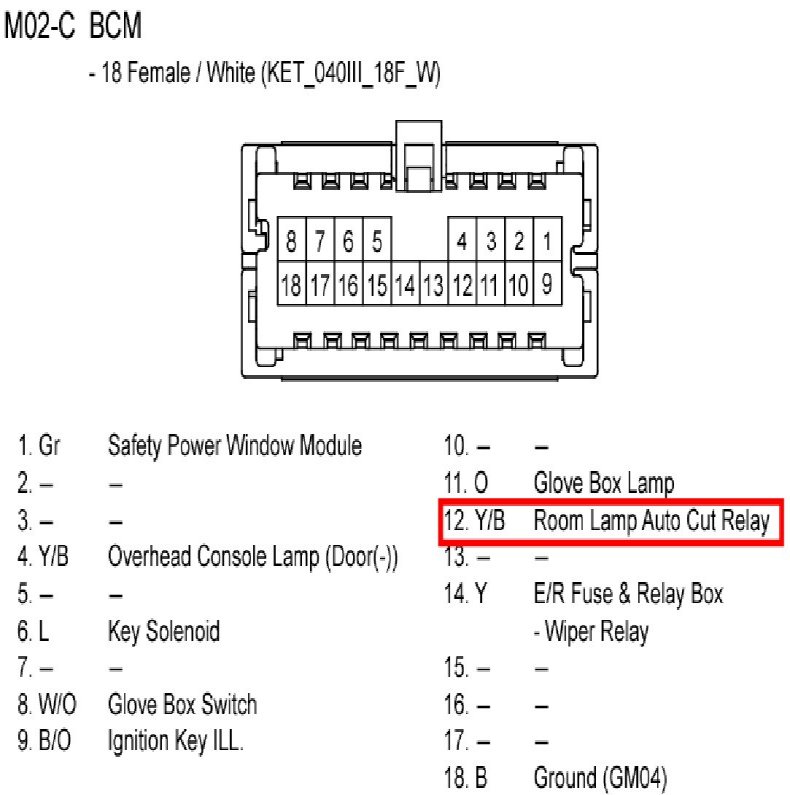

M02-C BCM:
