Engine Control Module: Specifications





ECM Terminal And Input / Output signal

ECM Harness Connector

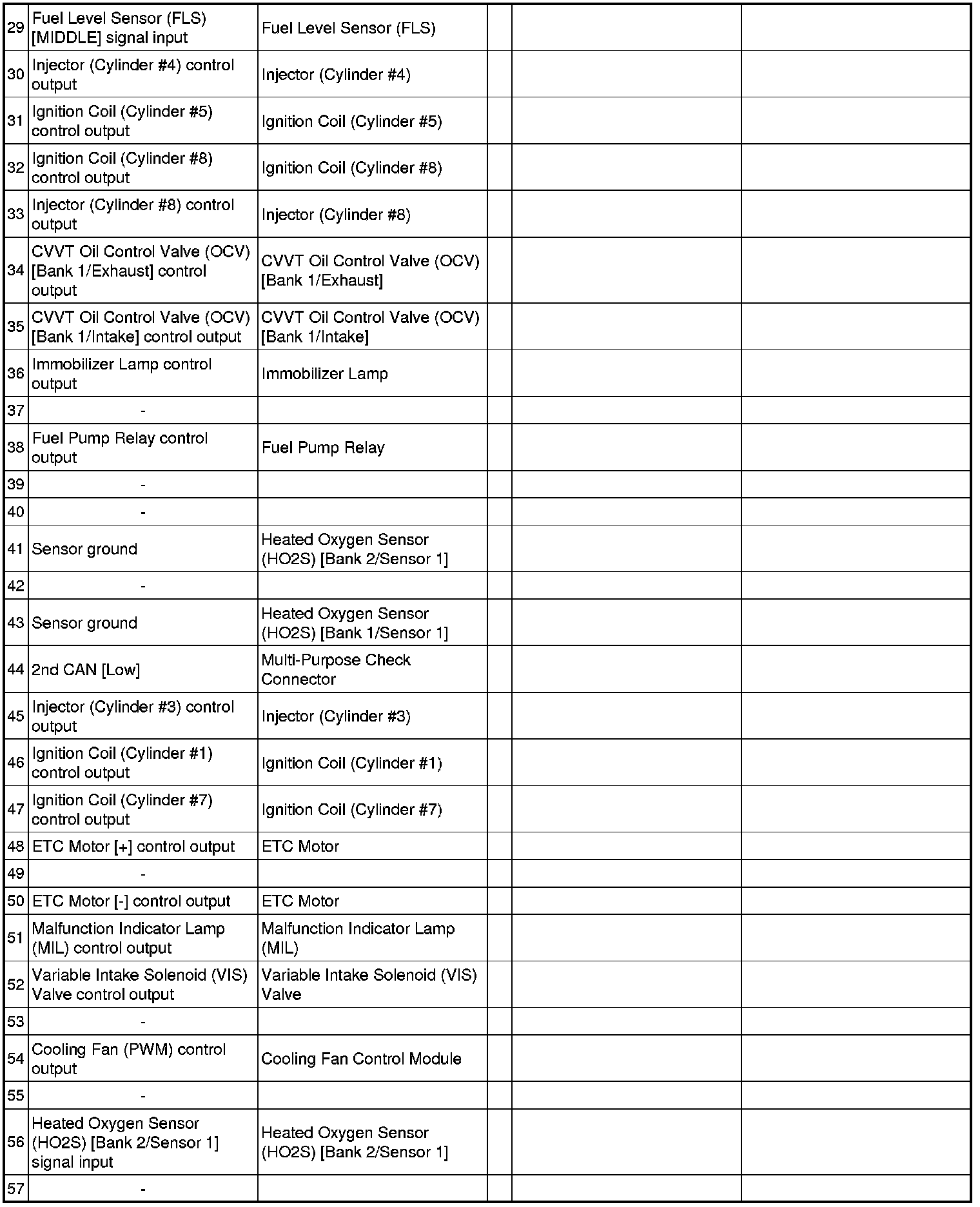

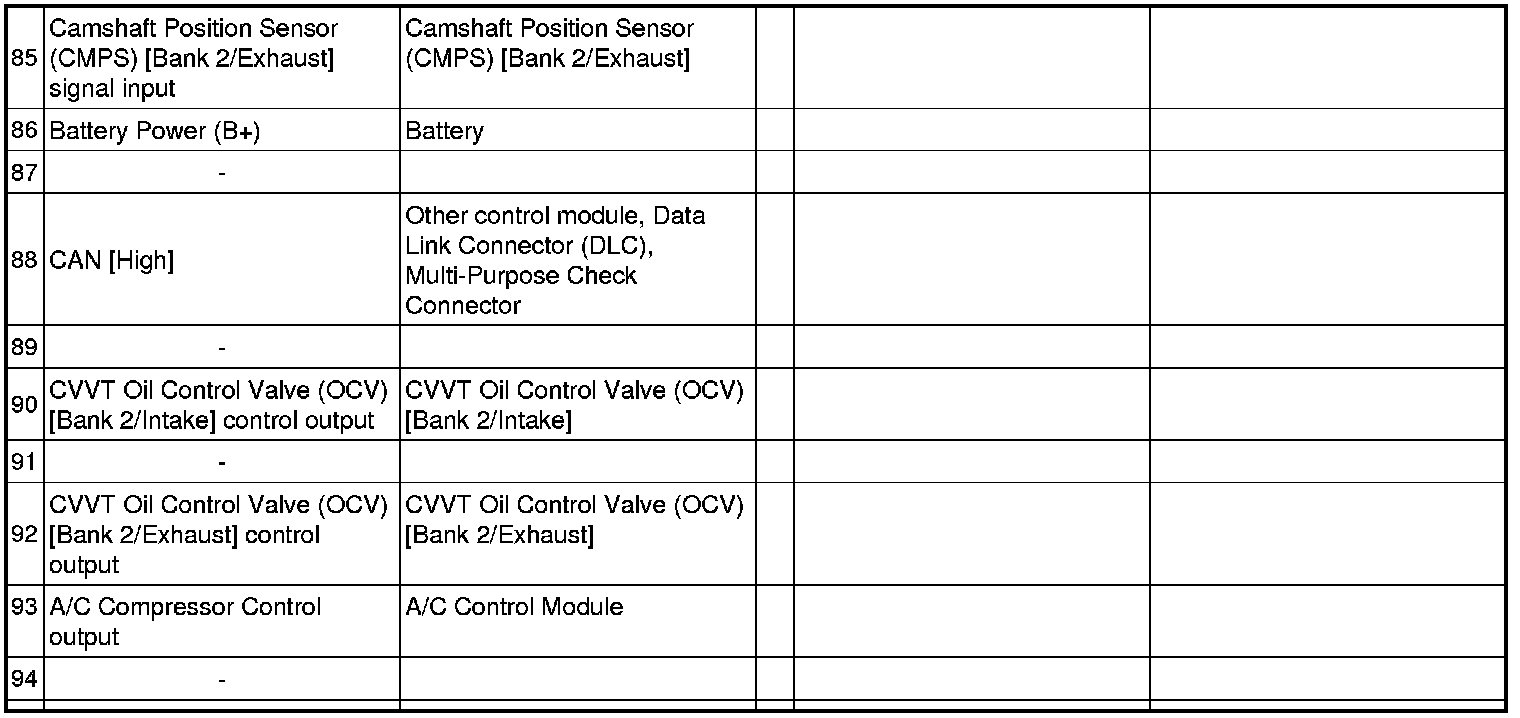

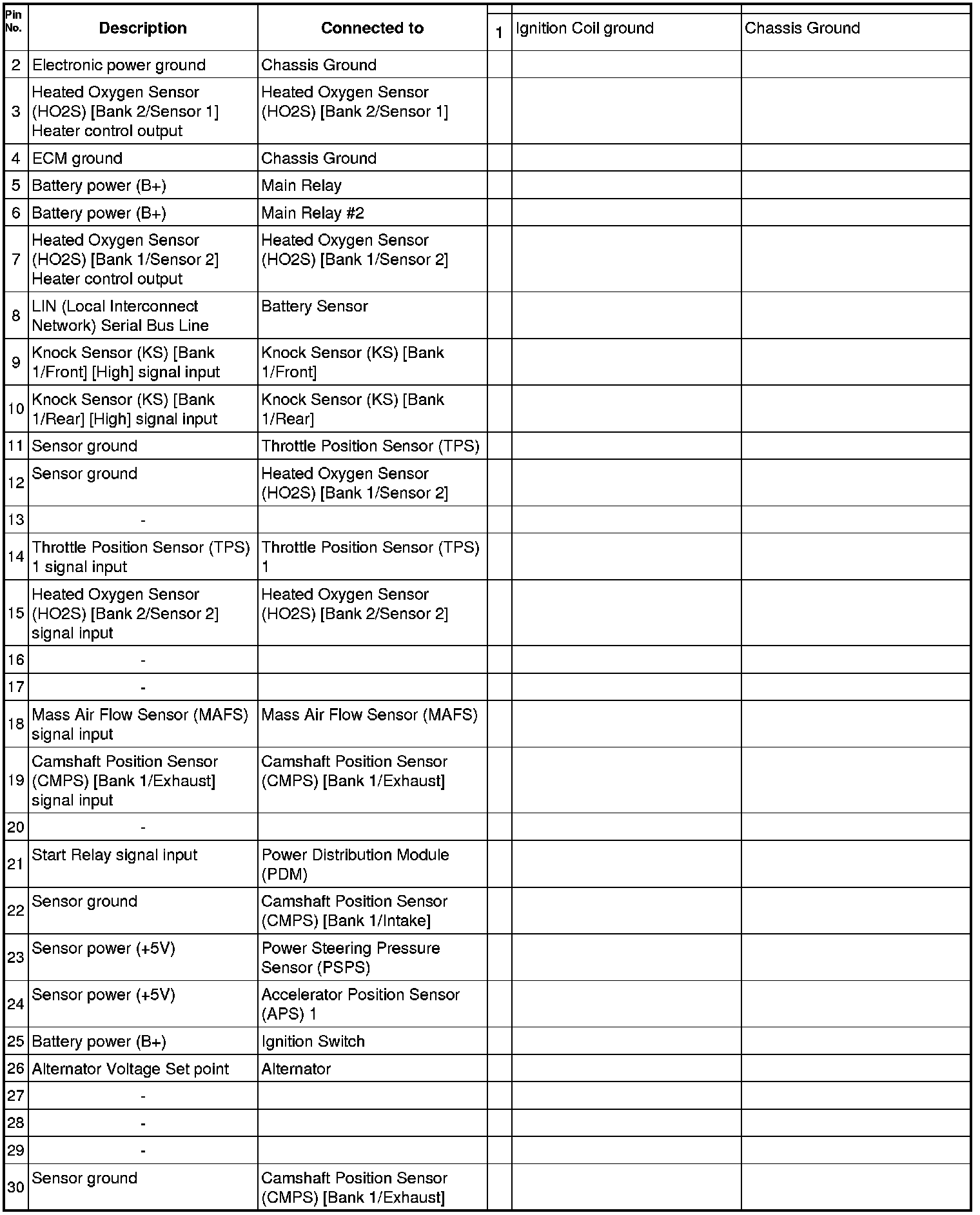

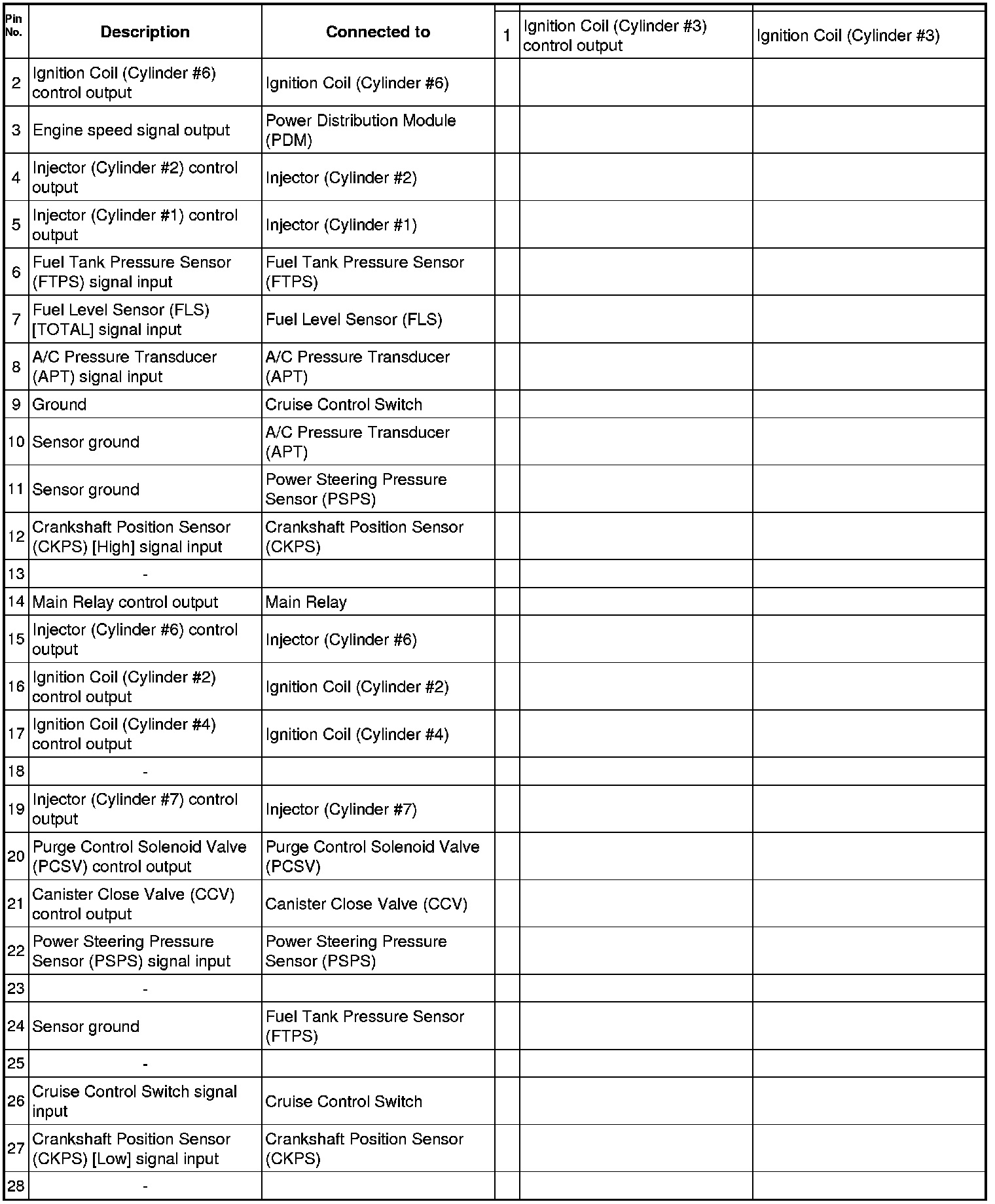

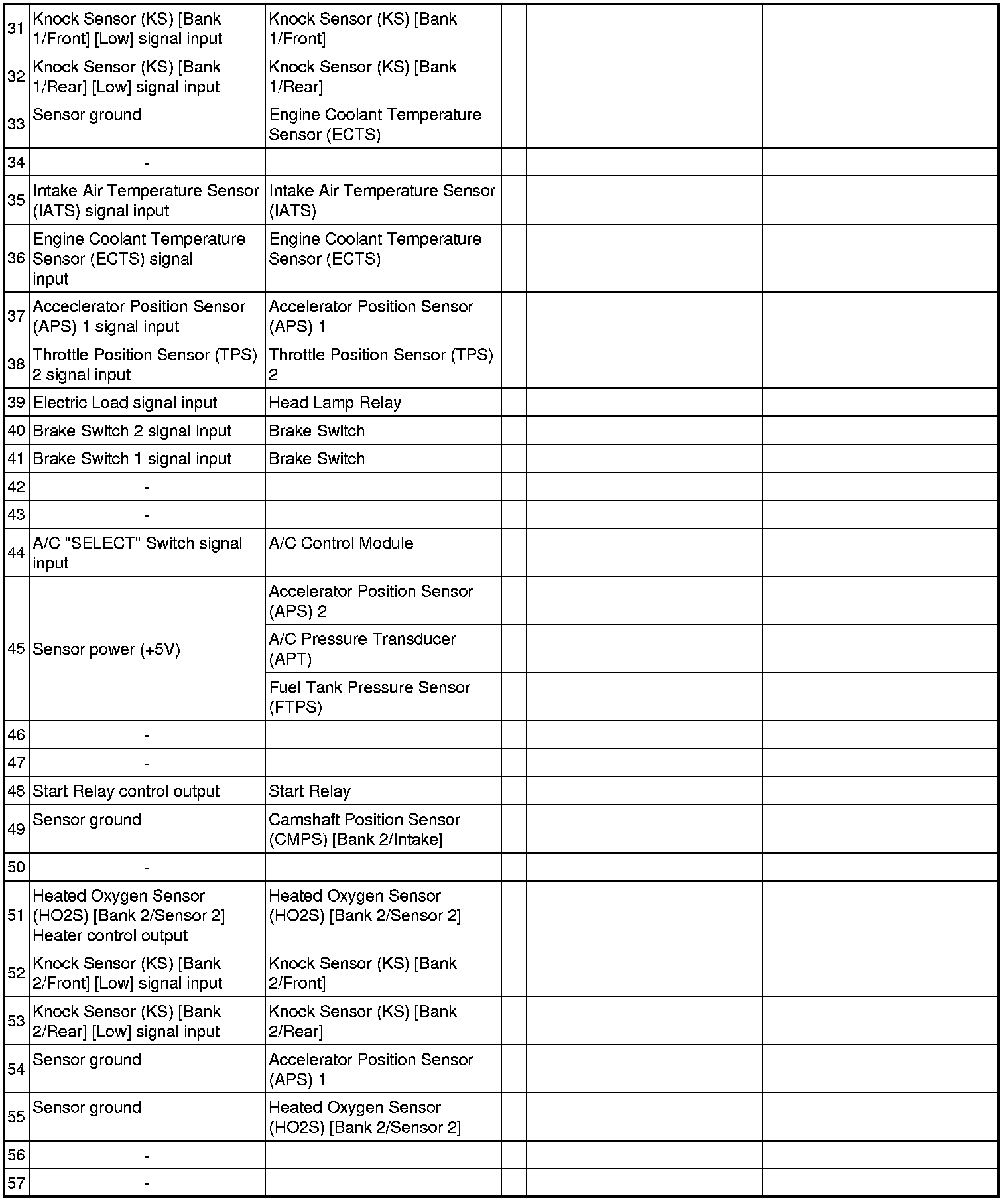

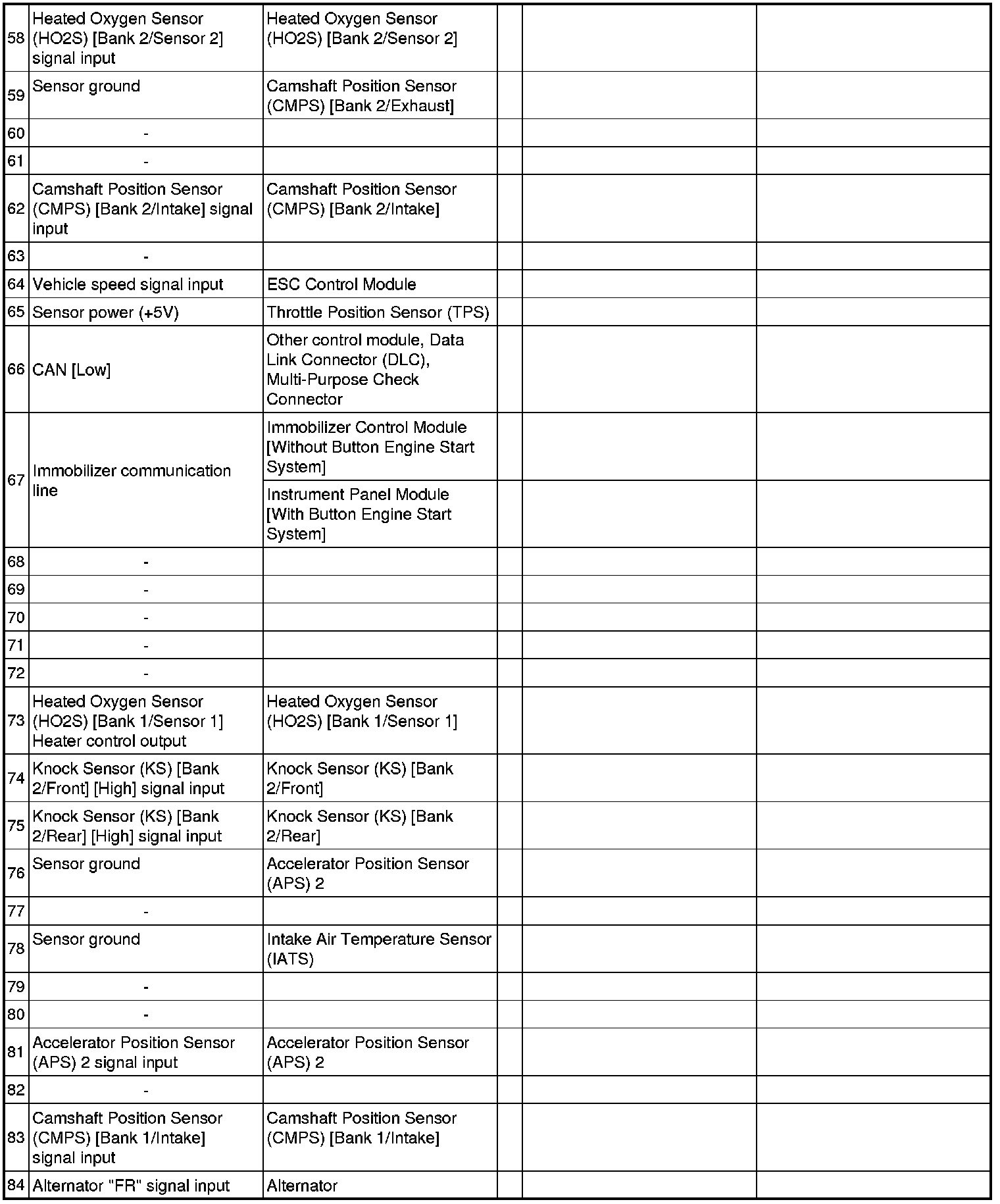

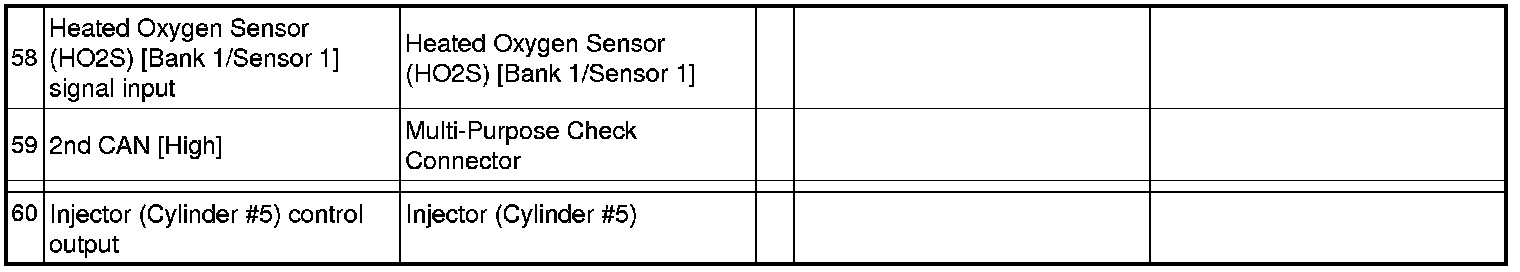

ECM Terminal Function
Connector [ CTG-A ]













Connector [ CTG-K ]

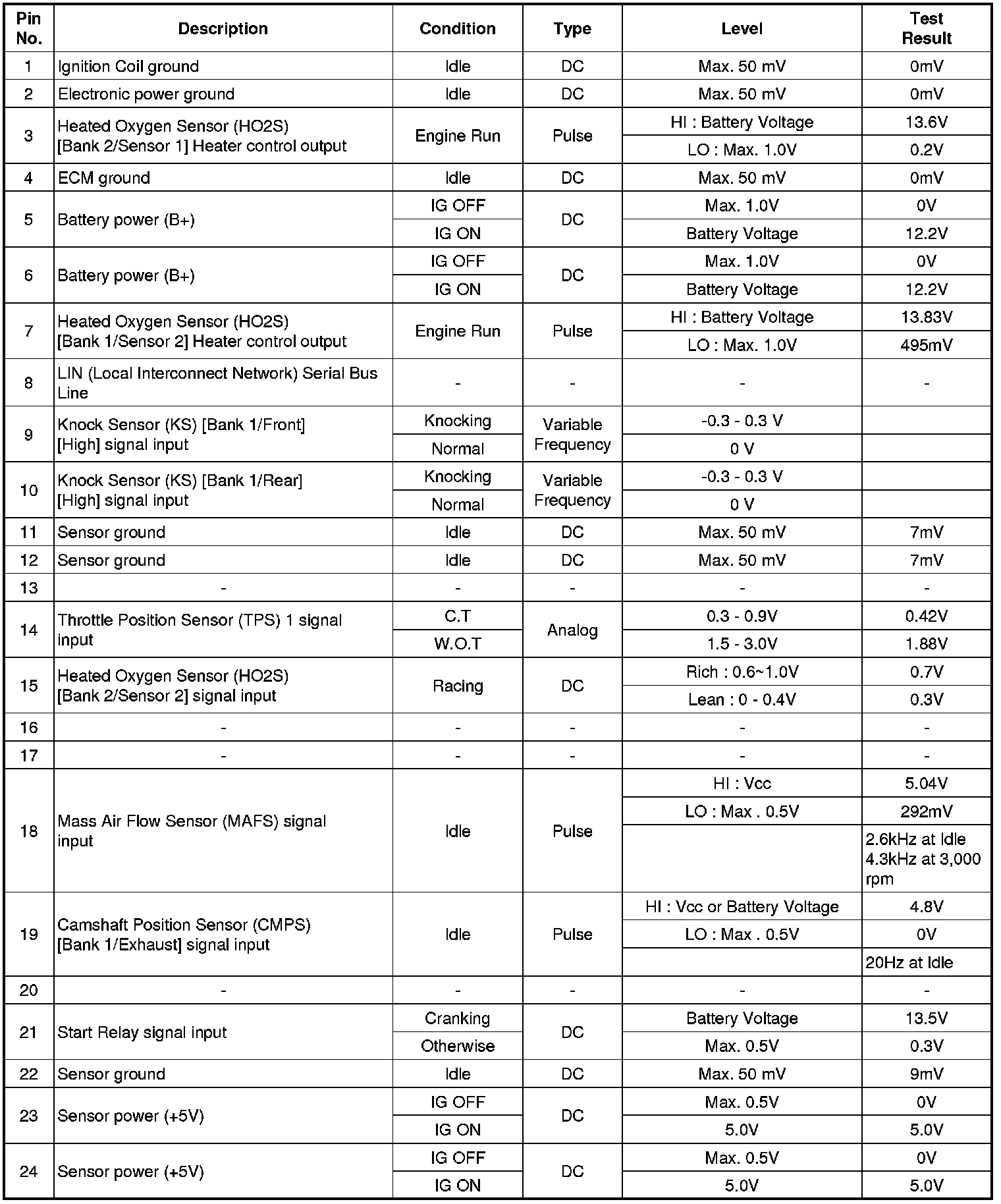

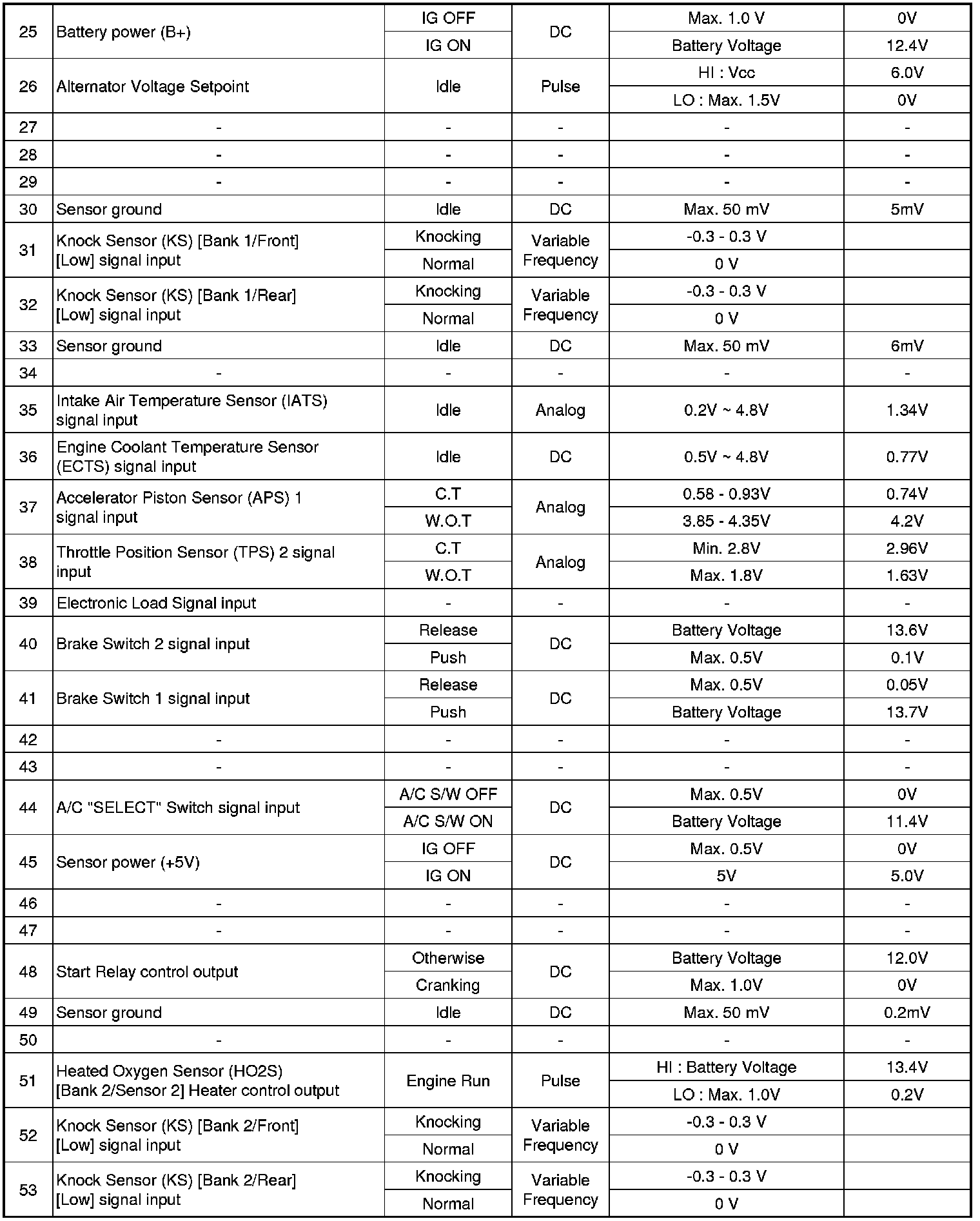

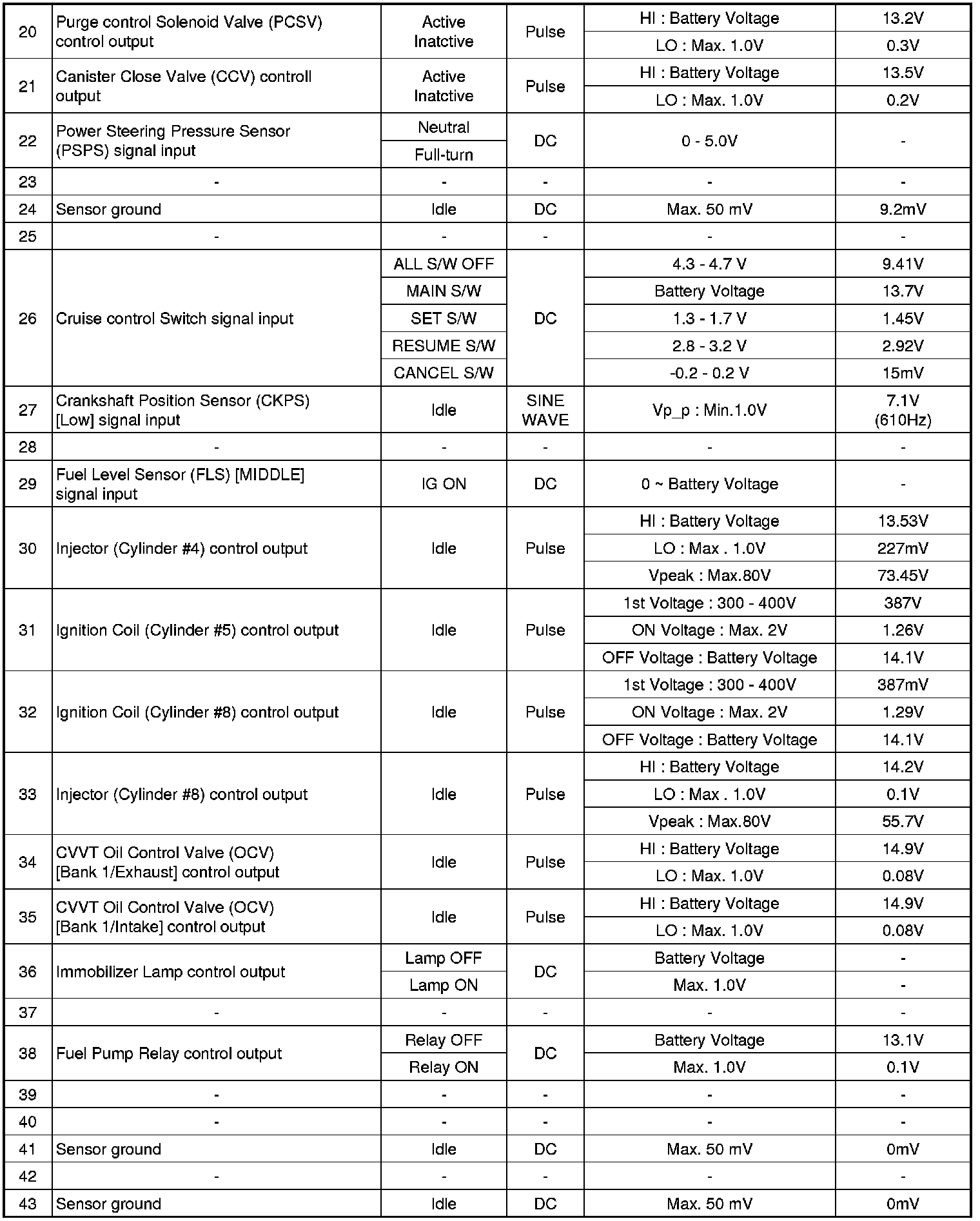

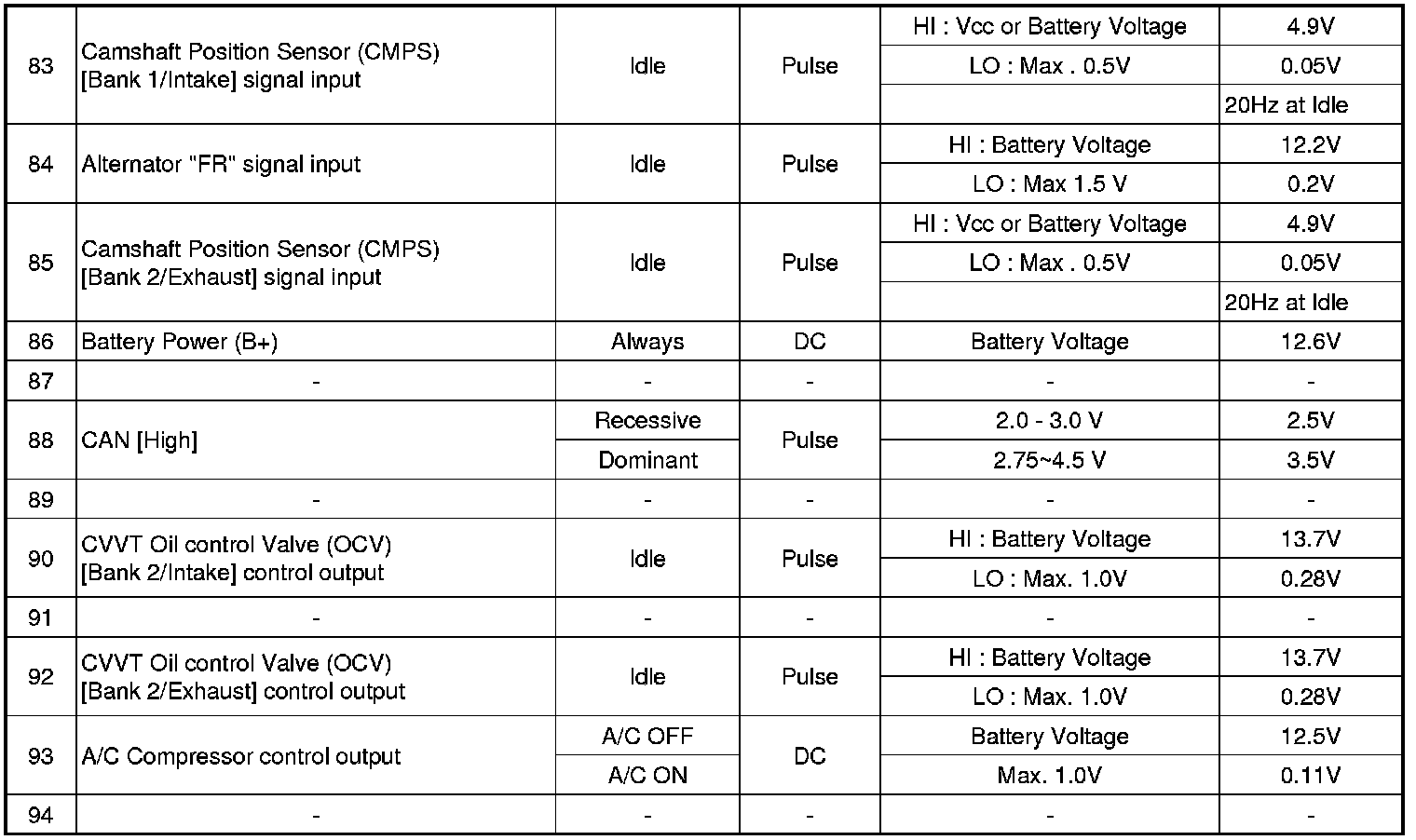

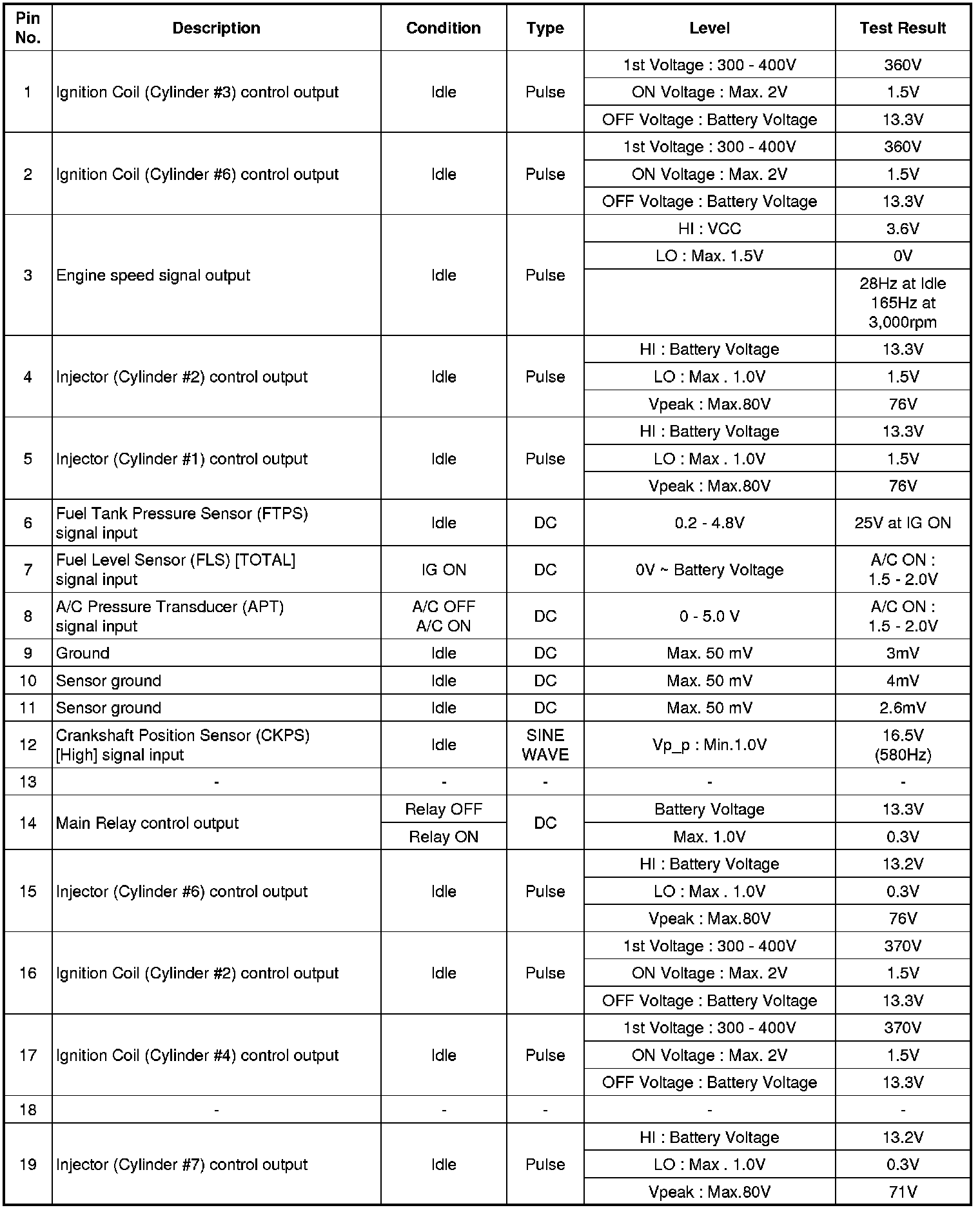

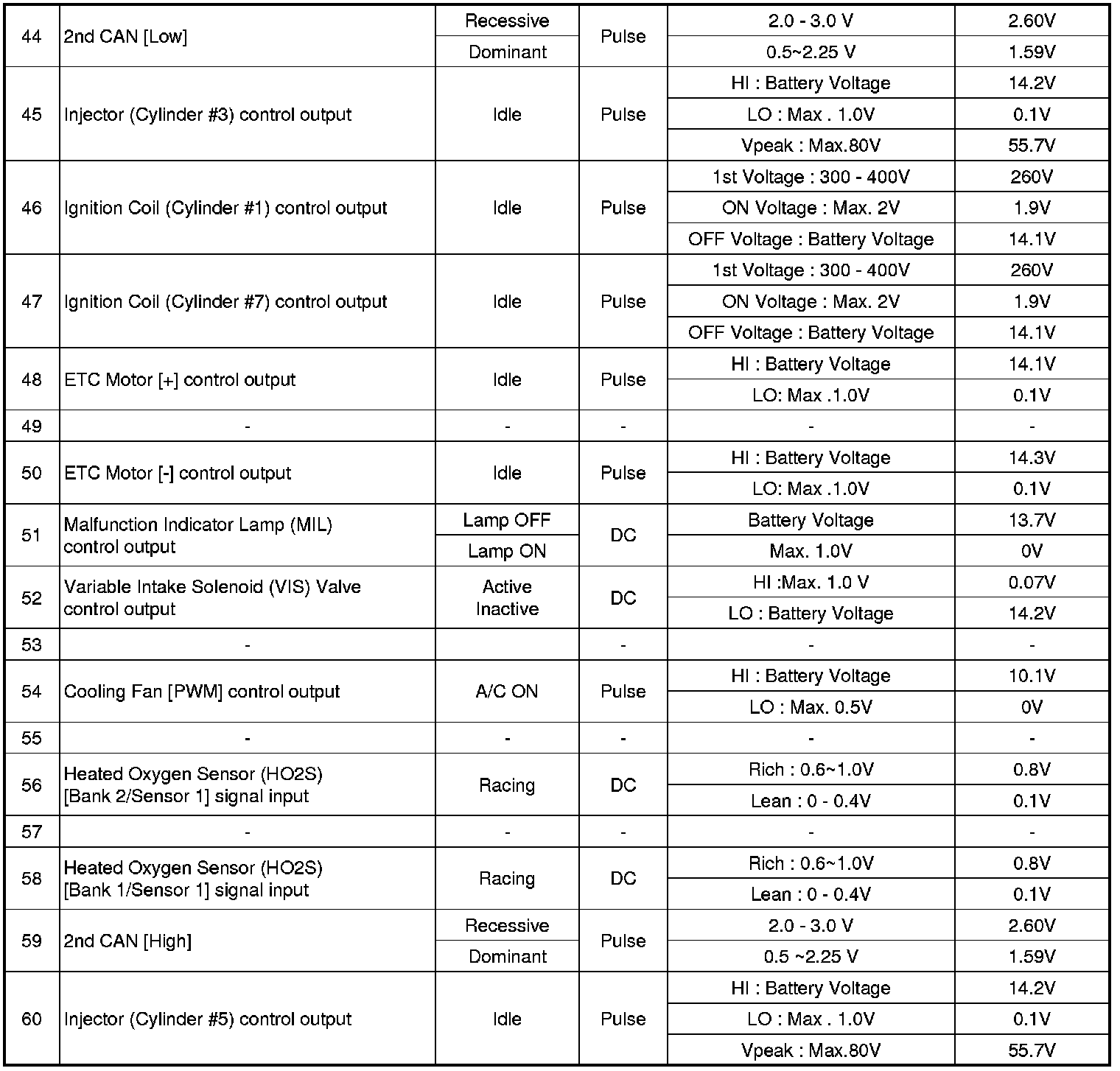

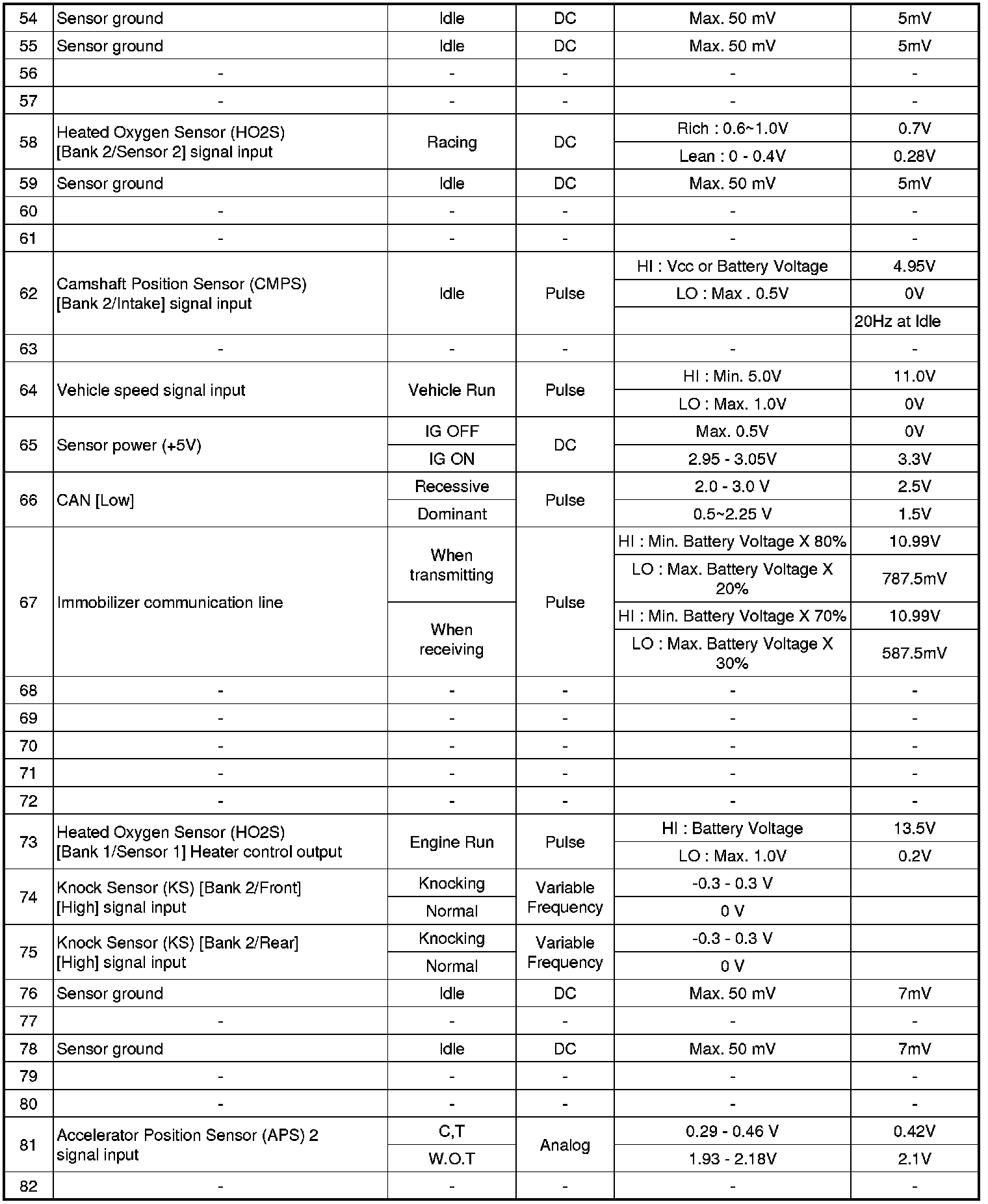

ECM Terminal Input/ Output signal
Connector [ CTG-A ]













Connector [ CTG-K ]
