Engine Control Module





ECM Terminal And Input/Output signal

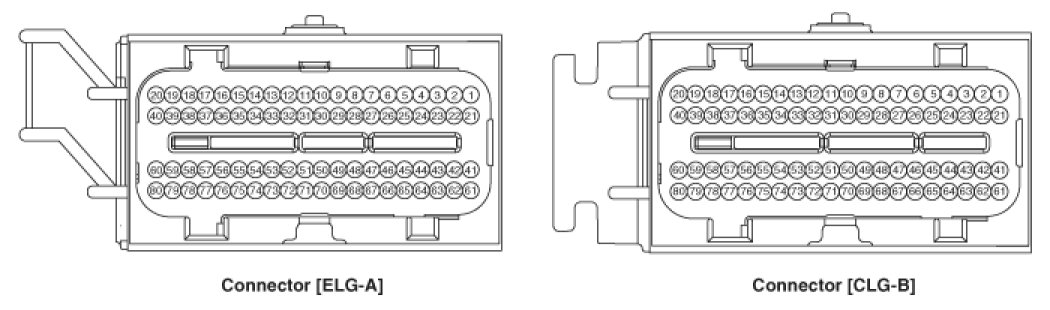

ECM Harness Connector

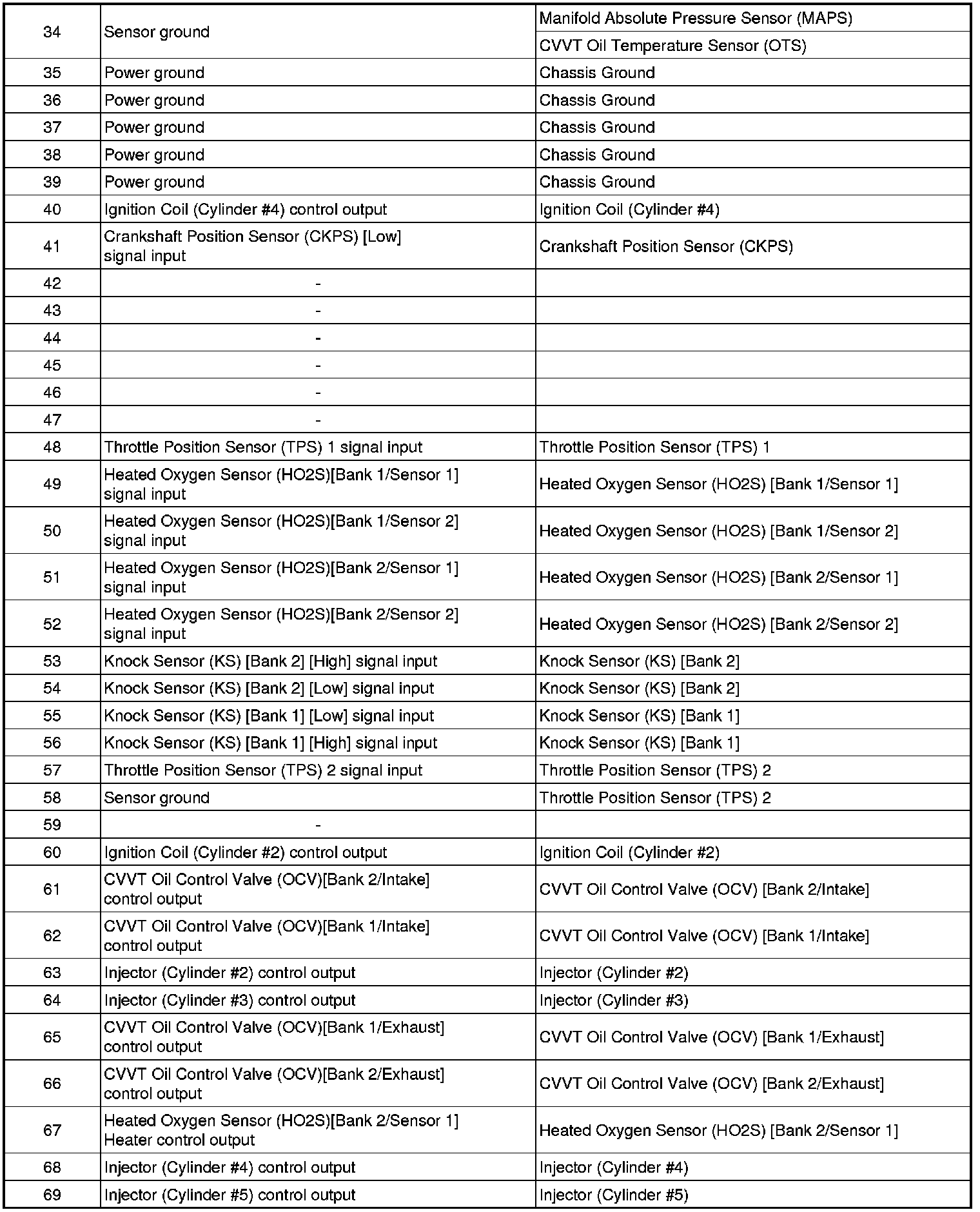

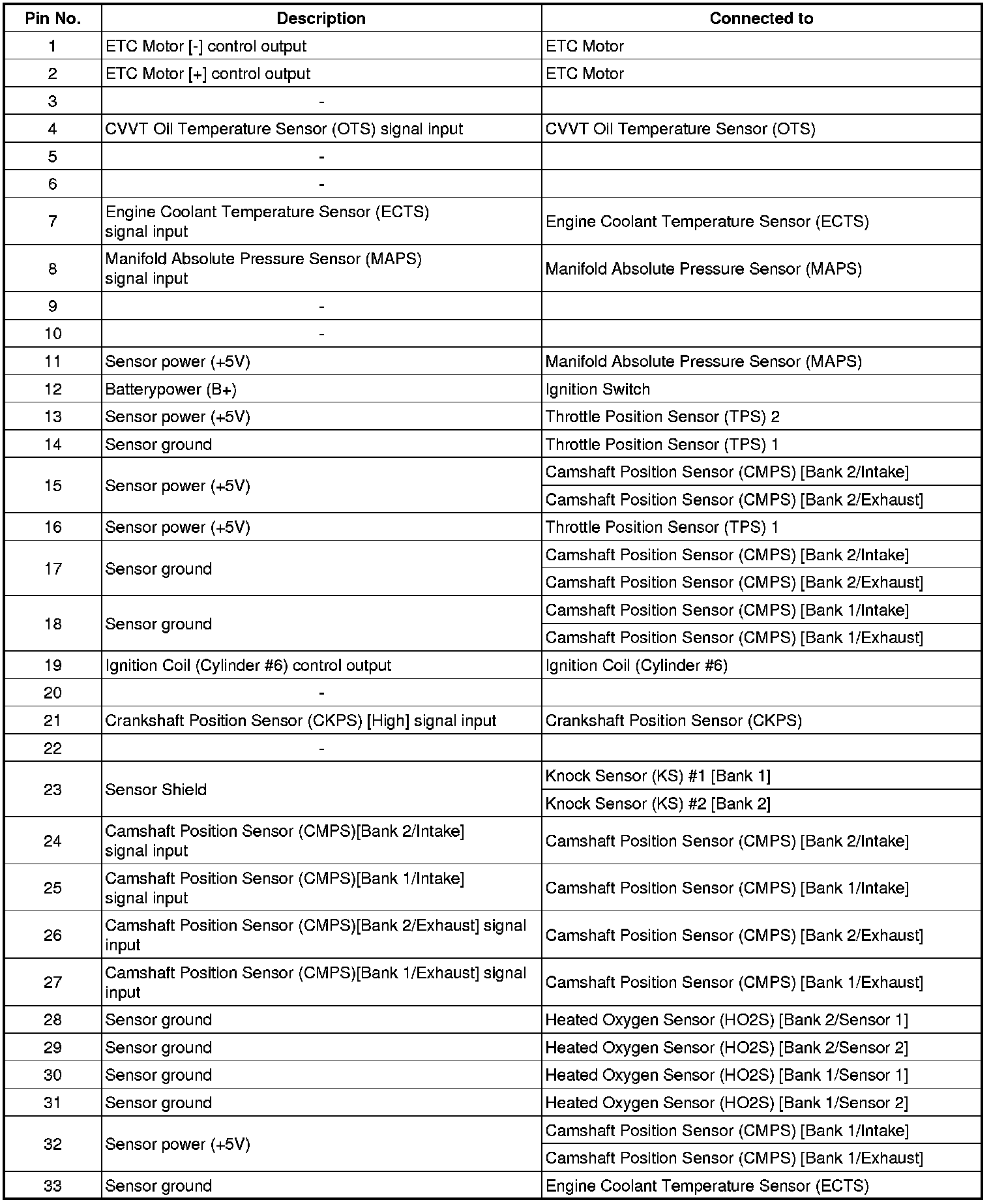

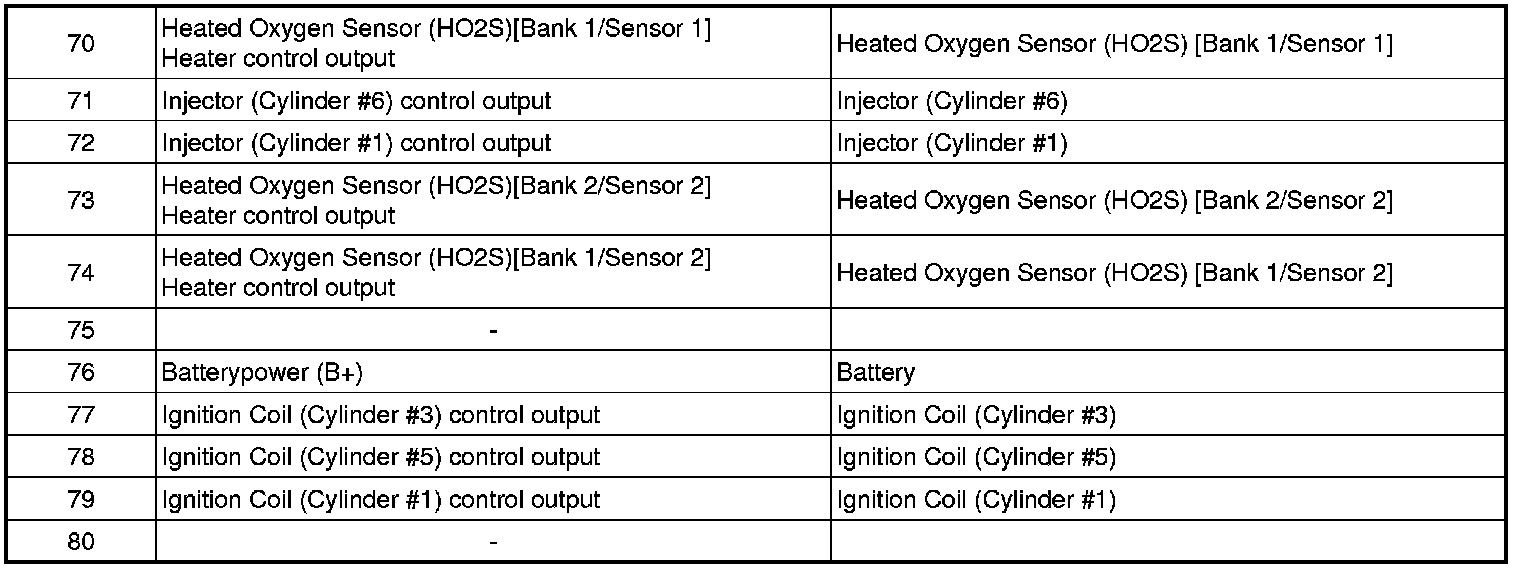

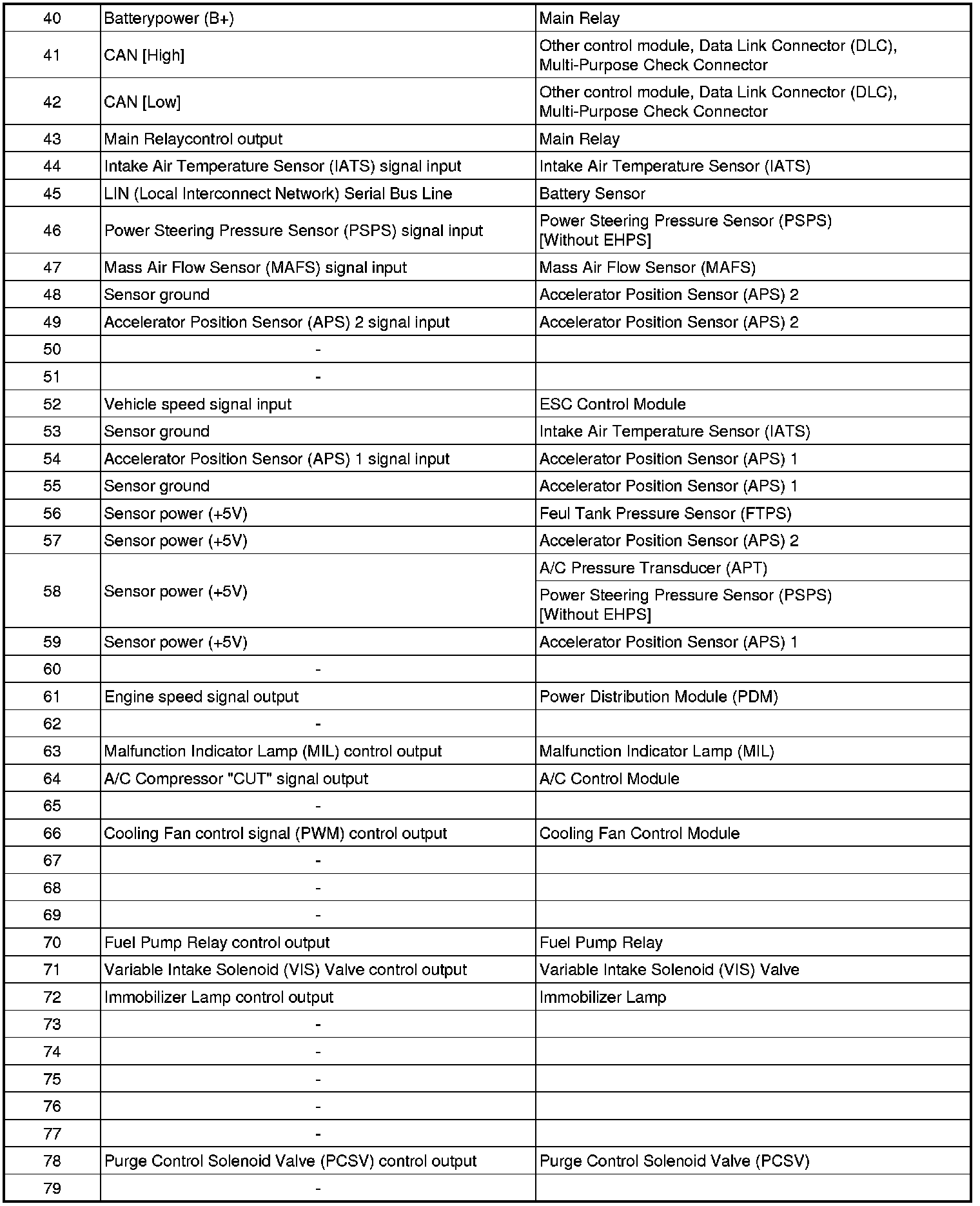

ECM Terminal Function
Connector [ELG-A]

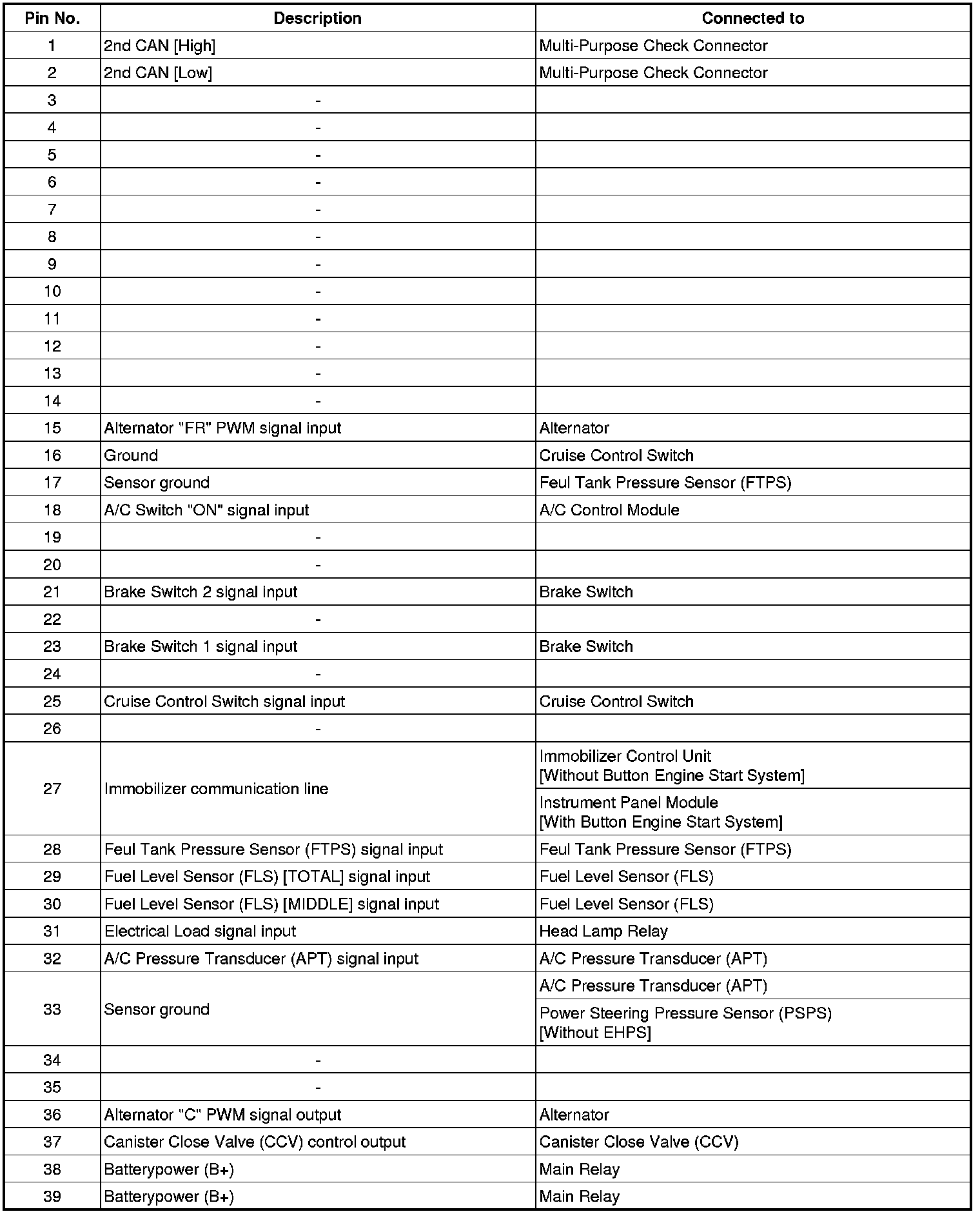

Connector [CLG-B]

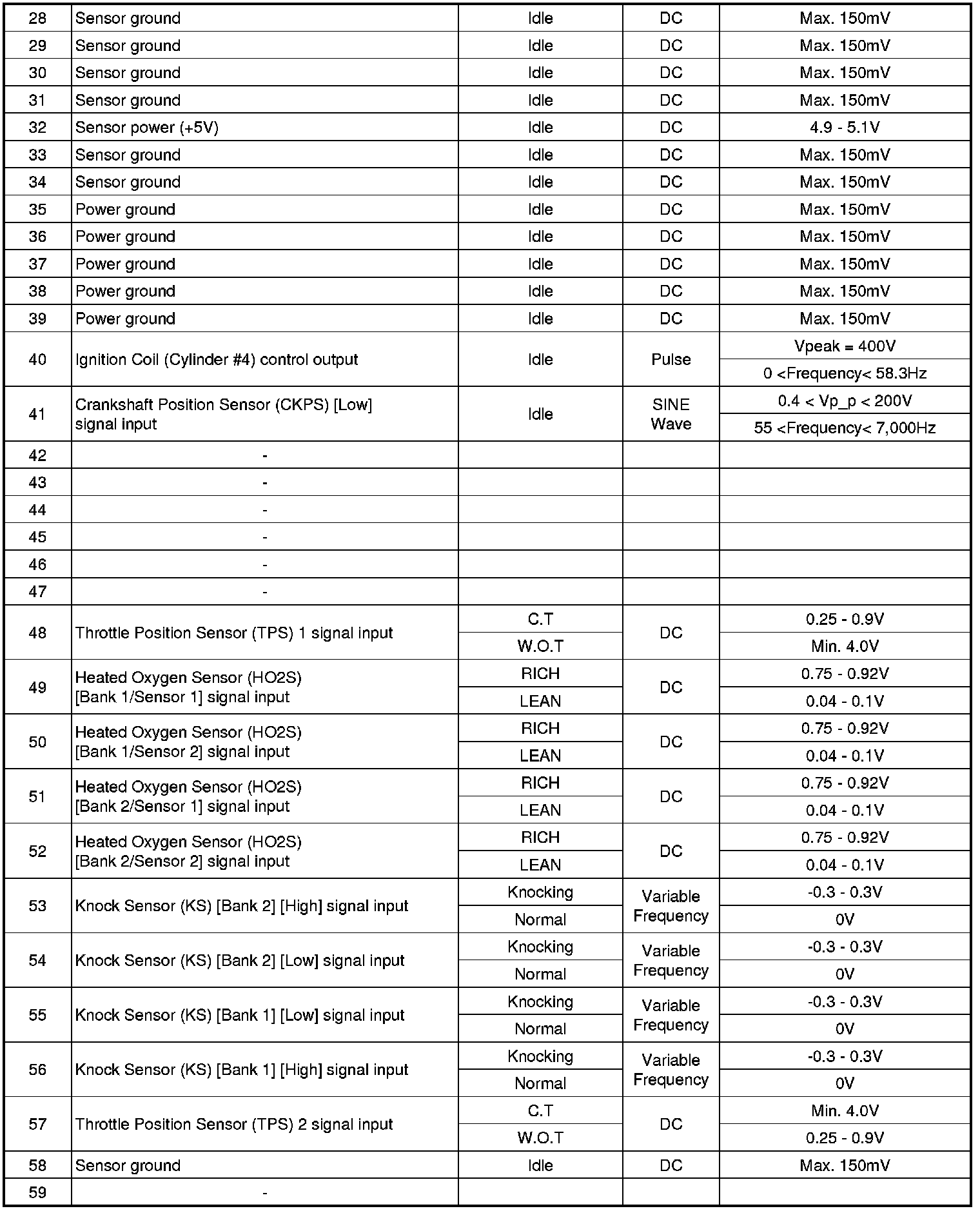

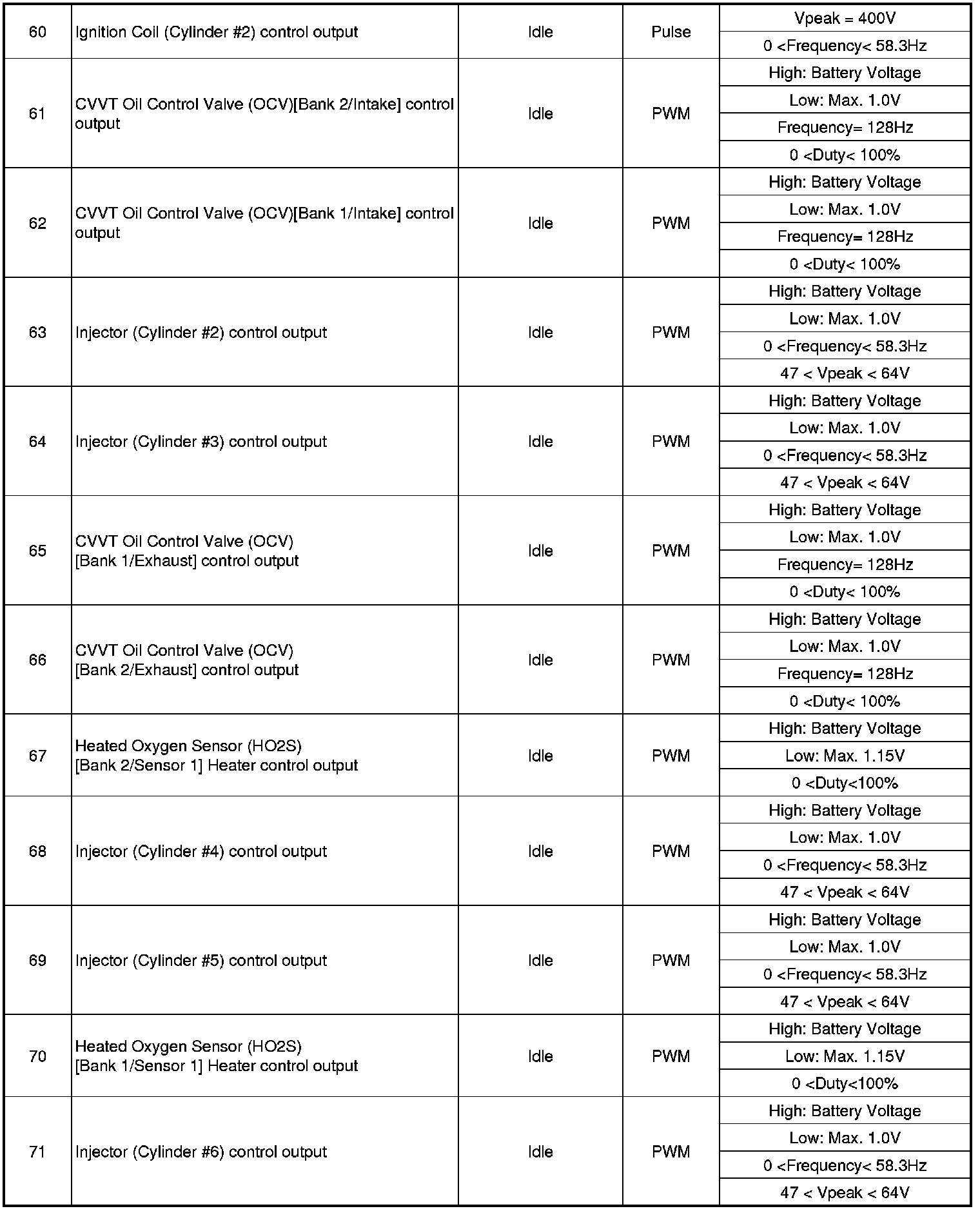

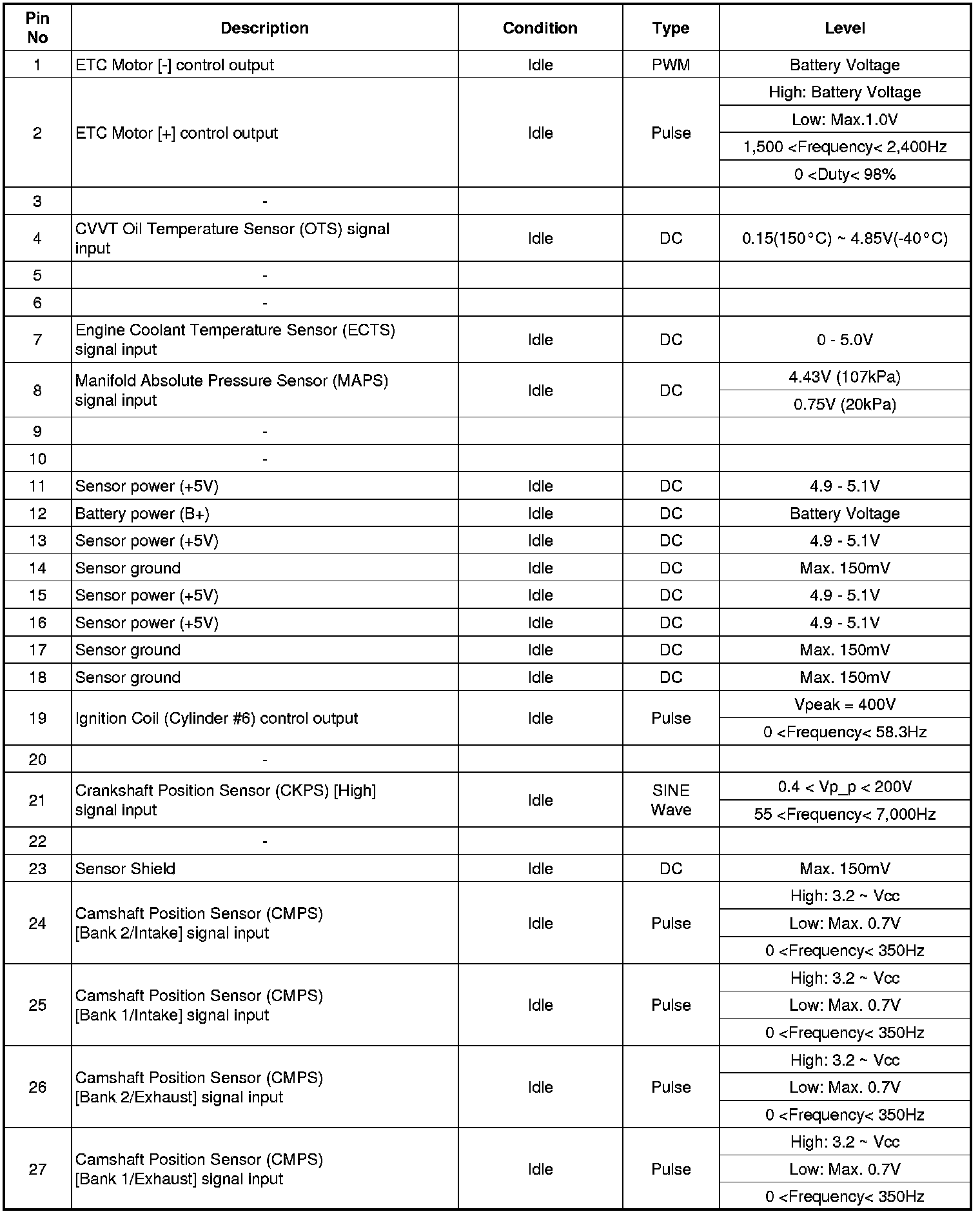

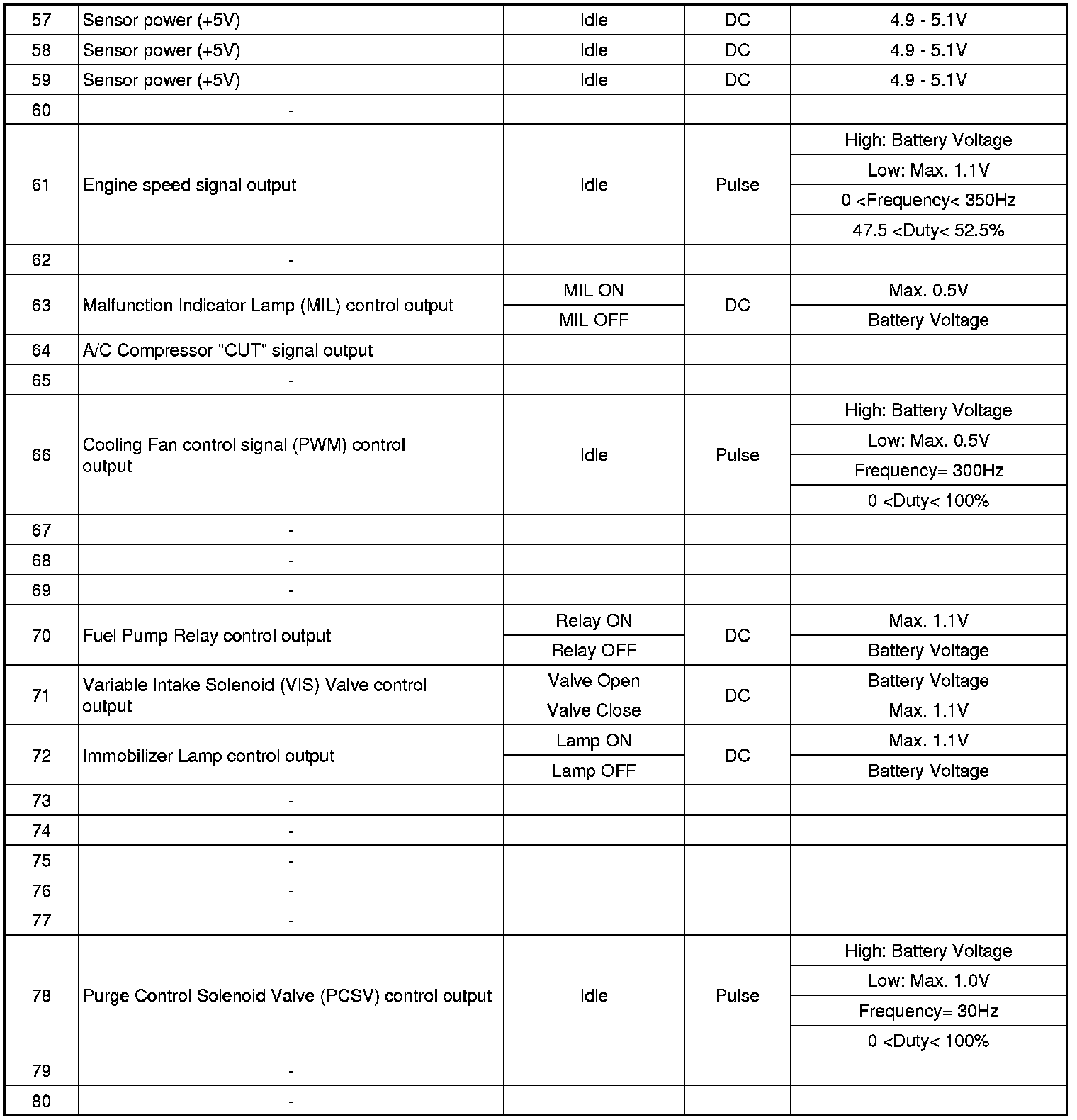

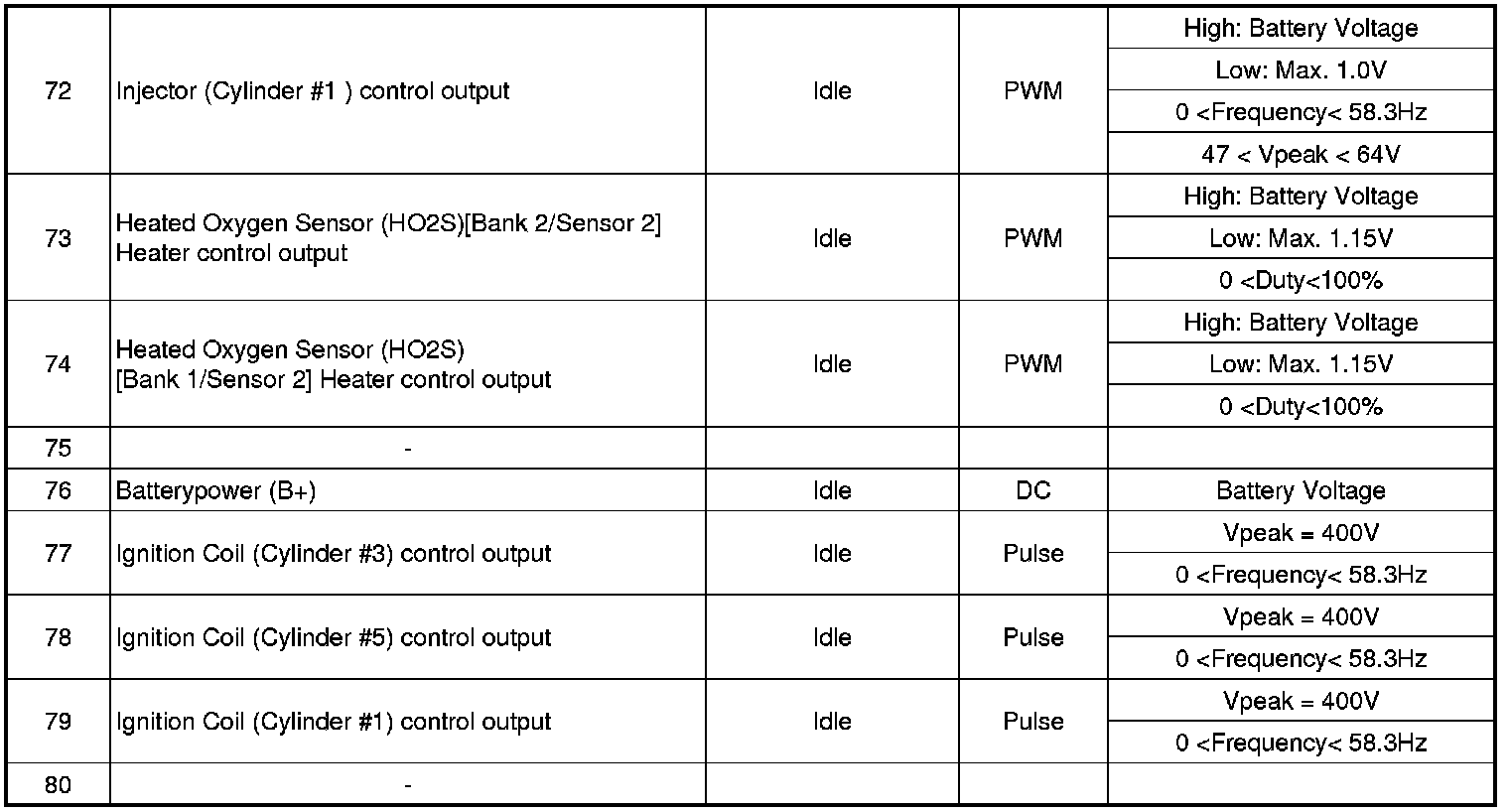

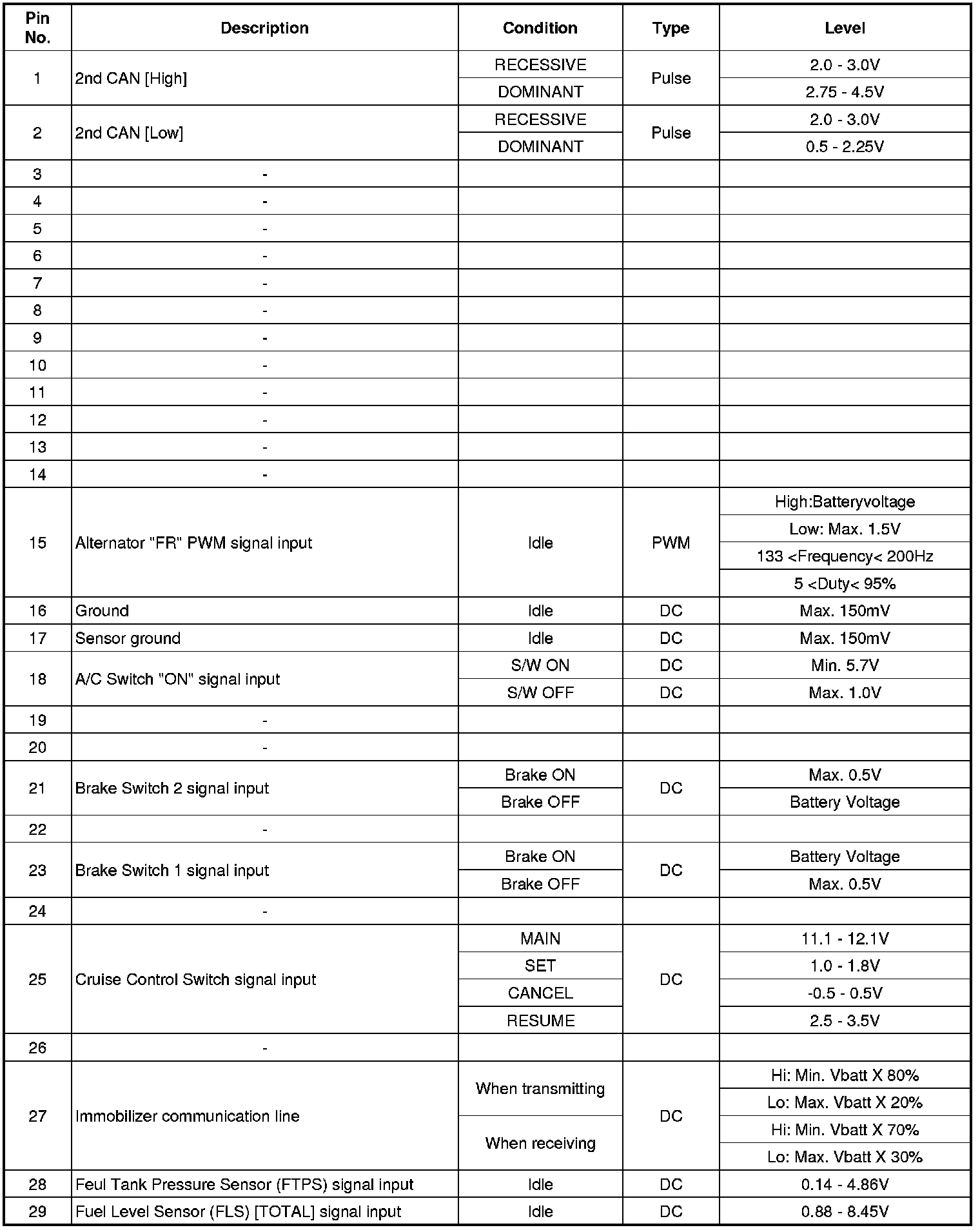

ECM Terminal Input/Output Signal
Connector [ELG-A]

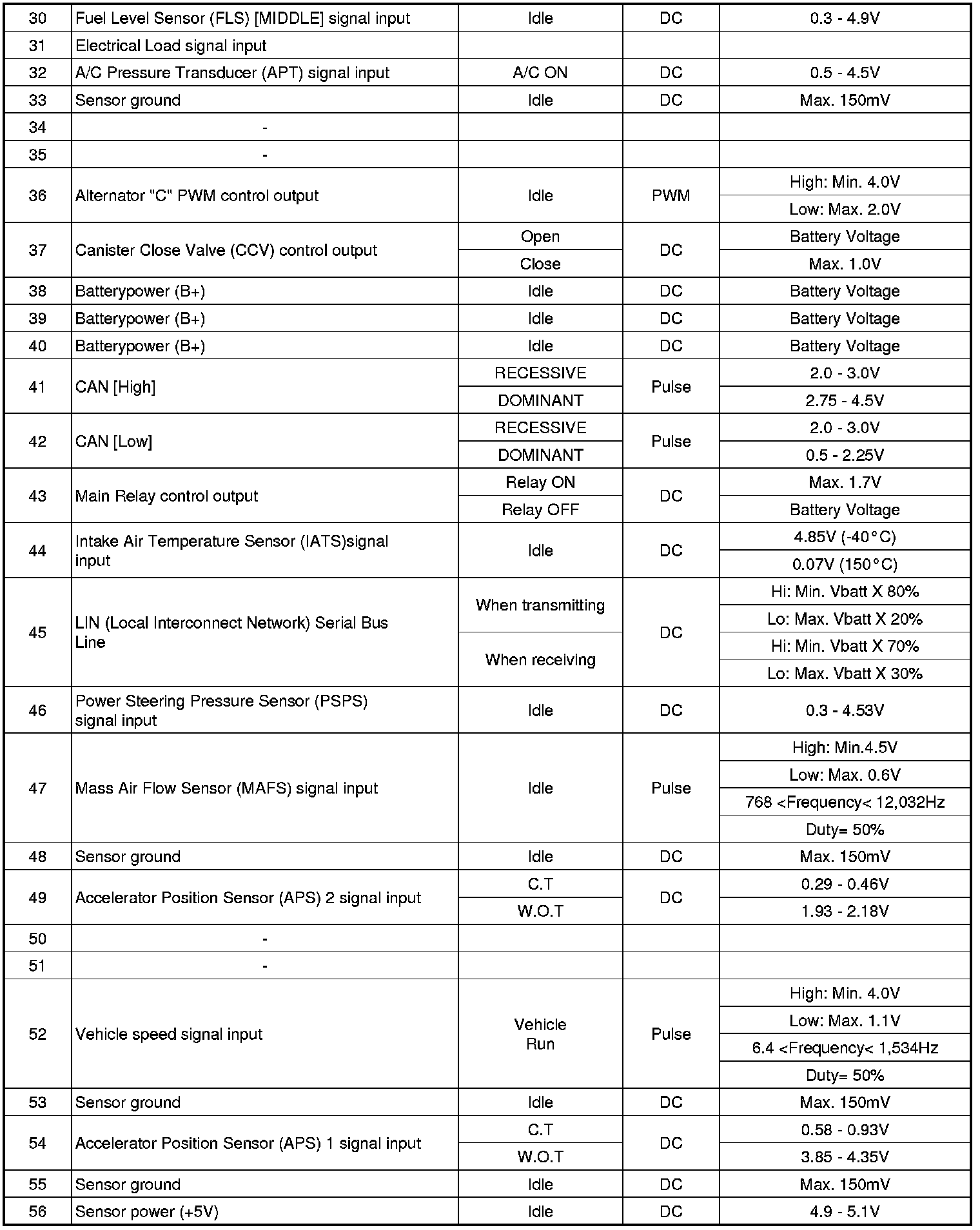

Connector [CLG-B]
