A/C Control Module

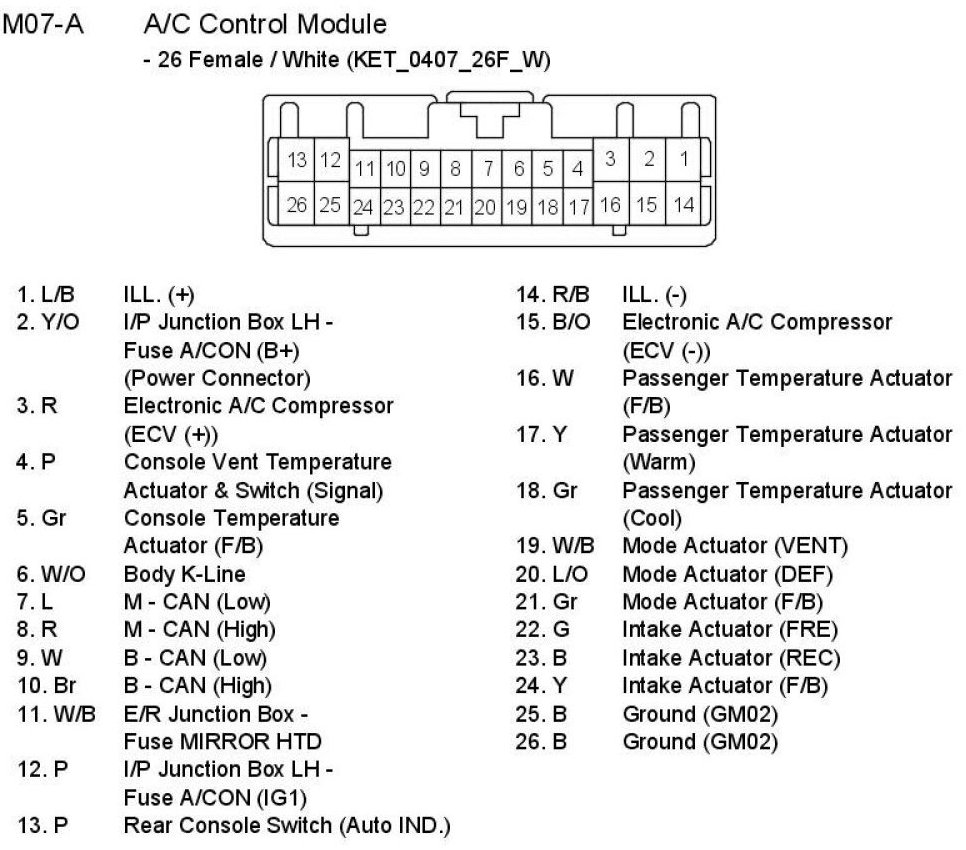

M07-A A/C Control Module:

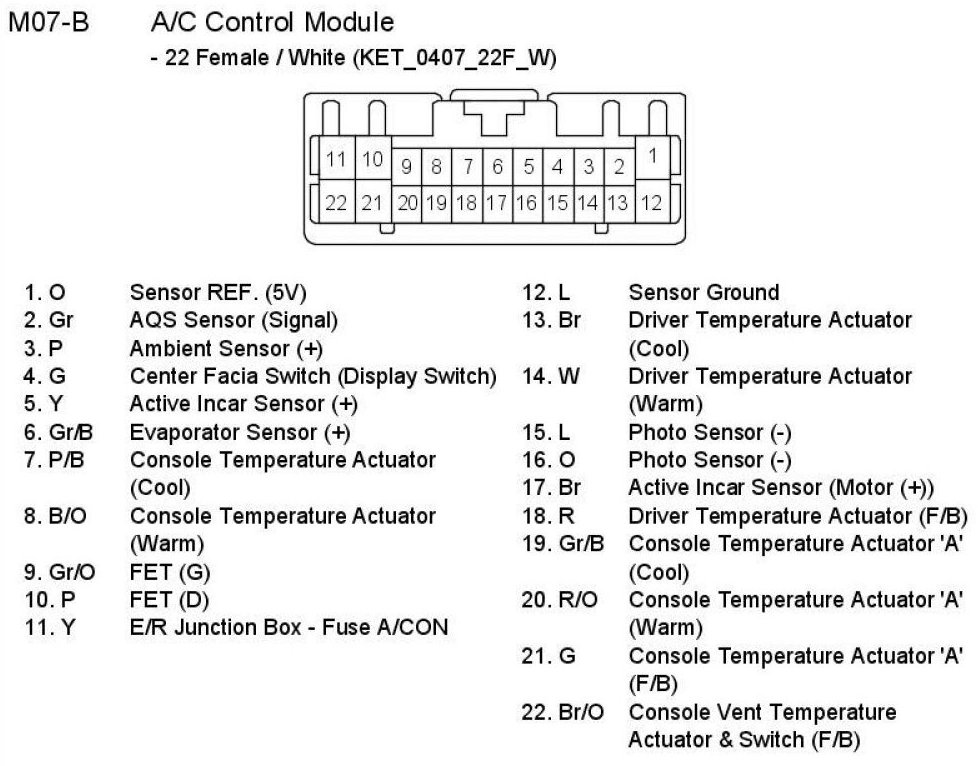

M07-B A/C Control Module:

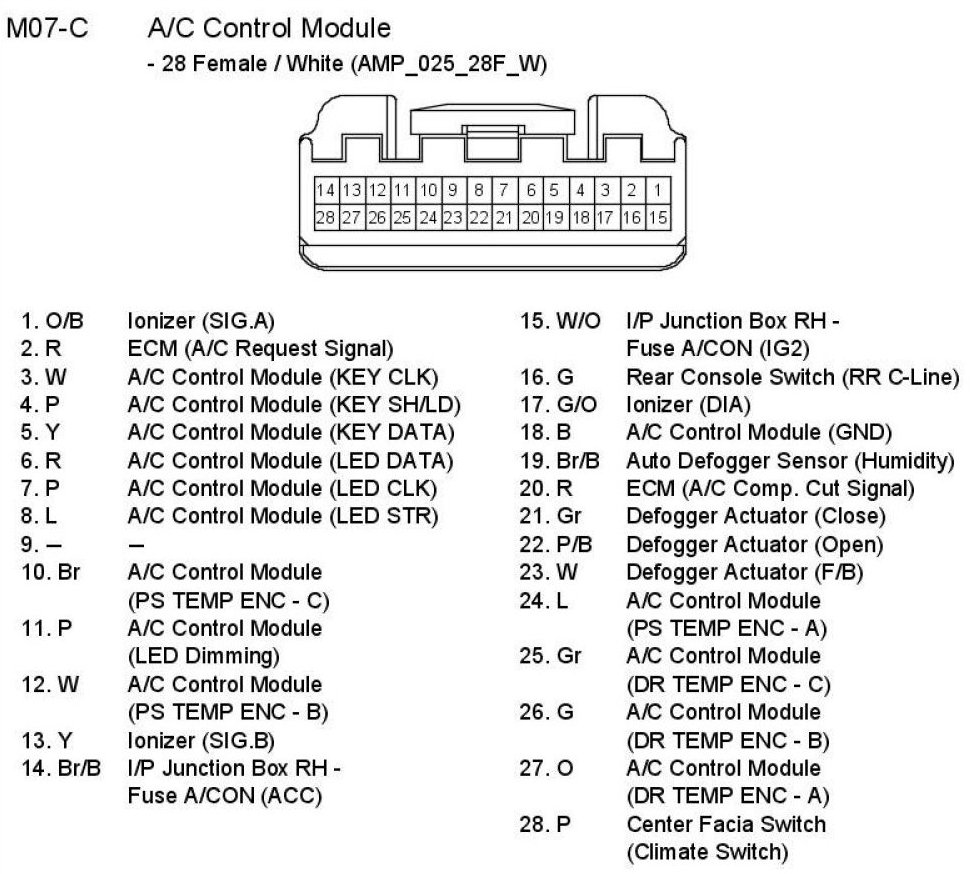

M07-C A/C Control Module:

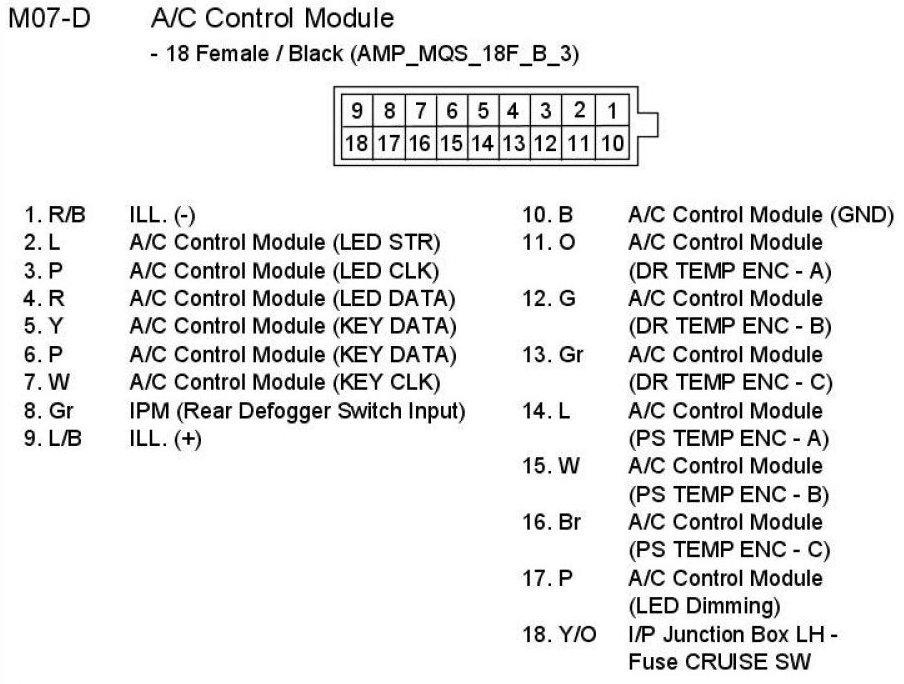

M07-D A/C Control Module:
