Home >> Hyundai >> 2011 >> Equus V8-4.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Steering >> Steering Column Control Module

Steering Column Control Module

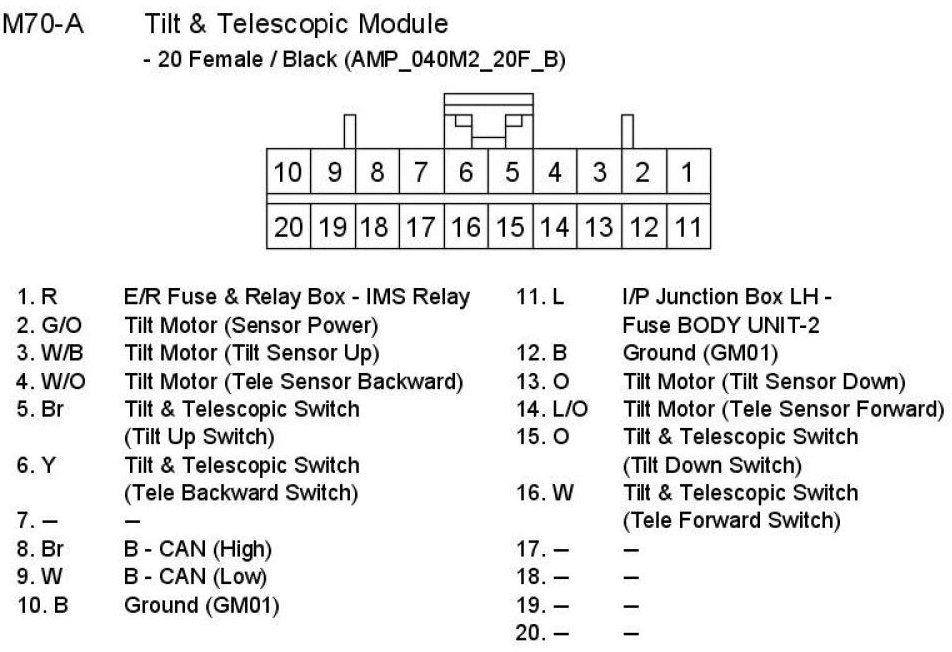

M70-A Tilt & Telescopic Module:

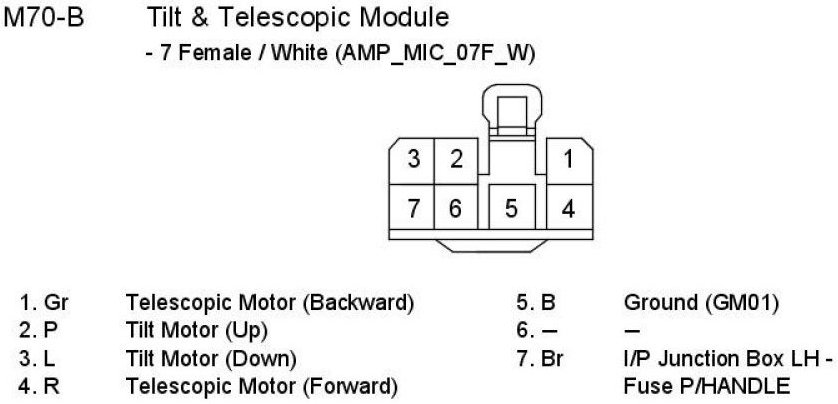

M70-B Tilt & Telescopic Module:
